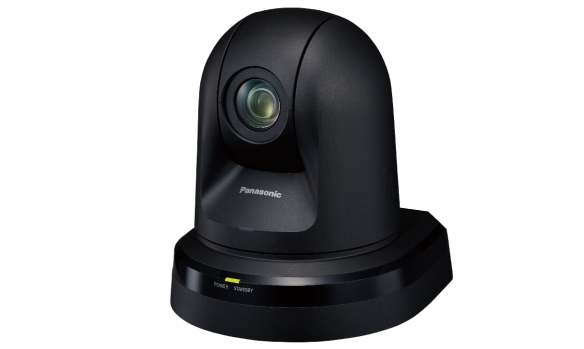

AW-HE42 Full-HD Professional PTZ Camera with 3G-SDI
Tags : AW-HE42, Full-HD Professional PTZ, Camera with 3G-SDI, Panasonic, panasonic AW-HE42, AW-HE42 ราคา, panasonic AW-HE42 ราคา, ptz camera, กล้อง pan till zoom, ptz พานาโซนิค, กล้องวีดีโอ, กล้องวงจรปิด พานาโซนิค, PTZ 3GSDI, sdi camera, panasonic sdi, Pansonic, panasonic he42, HE42, Pana He42, Full hd camera, ptz panasonic, panasonic he42 ราคา, he42 sdi
รายละเอียดสินค้า
PRODUCT DETAILS
Outstanding video output in full HD. Take advantage of 3G-SDI and IP outputs to get you a reliable live video production workflow. An ideal addition for your PRO PTZ arsenal.
AW-HE42 Full-HD Professional PTZ Camera with 3G-SDI
PRODUCT DETAILS
Outstanding video output in full HD. Take advantage of 3G-SDI and IP outputs to get you a reliable live video production workflow. An ideal addition for your PRO PTZ arsenal.
KEY FEATURES
1/2.3" MOS Sensor with 20x Optical Zoom (extendable by iA zoom)
Excellent HD video via 3G-SDI, HDMI, USB & LAN
High Dynamic Range function (HDR), suitable for backlit condition
A Single Cable Solution for Remote Video and Audio Capture (NDI|HX option available)
Supports PoE+ (Power over Ethernet+) for lower installation costs
A PTZ Camera for When Quality Matters
The AW-HE42 camera is designed to produce great results in a variety of applications that require high-quality video and precise control—such as conference video, event capture, staging, distance learning and houses-of-worship. Thanks to their precision 20X optical zoom lenses, wide field of view, smooth PTZ functions and exceptional image quality, HE42 cameras are ideal for demanding remote production and IMAG use. With IP-Preview transmission and control, and support for PoE+ (which allows power to be supplied via a LAN cable), the HE42 also offers the flexibility needed for easy installation and management.
It's All in the Optics
In addition to a 20x optical zoom, the AW-HE42 also features intelligent zoom up to 30x to capture crisp close-ups even in large auditoriums and lecture halls. The HE42 delivers an impressive signal-to-noise ratio, 1000 TV lines of resolution and 16-axis color matrix control for precise camera “painting” and matching. The HE42 already includes many innovative standard features developed to expand the capabilities of professional video system users. In addition to Panasonic's Dynamic Range Stretch (DRS) and advanced Digital Noise Reduction (DNR), an ingenious High Dynamic Range (HDR) mode helps to produce very good video even in extreme contrast and lighting conditions.
See in the Dark
For shooting in virtually total darkness, the HE42's Night Mode makes it possible to automatically switch to the capture of high-quality, HD monochrome video with the use of an (optional) IR illuminator in the 850nm range, making the camera ideal for reality show production, sleep lab research and staging support.
Versatile, Smooth & Lightweight
The pan range of ±175° and the tilt range of -30° to +90° cover a wide shooting area. Pan and tilt operate at a maximum speed of 90°/second and respond quickly to remote control operation. They operate quietly at a sound level of NC35 or lower. Up to 100 preset positions and camera settings are stored in the camera, more than enough for the most demanding large venue installation. The camera weighs only 3.3 lbs. and consumes just over 14.4 watts at 12 VDC.
Connected – Professional Interfacing for all sorts of remote production
Video Outputs: Standard professional interfaces include 3G-SDI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60i.
| HDMI | 1080/59.94p,1080/50p,1080/59.94i,1080/50i, 1080/29.97PsF,1080/25PsF,1080/29.97p, 1080/25p,720/59.94p,720/50p |
|---|---|
| SDI | 1080/59.94p,1080/50p,1080/59.94i,1080/50, 1080/29.97PsF,1080/25PsF,1080/29.97p, 1080/25p,720/59.94p,720/50p |
| USB | 1080/30p,1080/25p,1080/15p,1080/12.5p,1080/5p, 720/30p,720/25p,720/15p,720/12.5p,720/5p, 360/30p,360/25p,360/15p,360/12.5p,360/5p |
| LAN | For details, please see "List of Supported Multi-Streaming Outputs". |
Audio Input: Audio input and embedding (on IP, HDMI) are also available via a switchable, stereo MIC/LINE input.
Serial Control: RS-422 serial compatibility is available for serial-based control workflows (i.e. connection to AW-RP150, AW-RP50/120 or previous controllers). RS-232 and RS-422 VISCA protocol is available when introducing a Panasonic camera into an existing control structure.
USB or microSD Card Recording: The mini-USB connector allows the AW-HE42 to be utilized as a USB camera utilizing standard USB Video/Audio class drivers. Many applications that connect to USB cameras, such as teleconferencing or software switching solutions, will be able to connect to the HE42 without external converters. Alternatively, microSD recording enables ISO MP4/H.264 recording internally in the HE42, transfer of content over the network via web browser or FTP
Network Connected: The LAN port on the HE42 unleashes the possibilities
- Power of Ethernet+ (PoE+) for easier system installation and setup.
- Control the camera via the network with an AW-RP150/AW-RP50/AW-RP120 hardware controller or Panasonic software solutions
- Access the built-in web interface to monitor and control all aspects of the camera
- Utilize a supported third party control system from broadcast control systems, switchers, lecture capture systems, AV Control system and more
- By default, the camera has a built-in H.264/MJPEG encoder for 7 channels of encoding up to 25Mbps. Pair with a supported hardware or software decoder
- Available NDI|HX upgrade (a technology of NewTek Inc.) for the ultimate single cable production workflow with Ultra low latency video, audio, control, tally, and power over a single cable
Flexible Installation & Mounting
- Blend-in: The camera is exceptionally easy to integrate and is available in two colors (-W: pearl white and -K: black matte) to suit a wide range of applications.
- Ceiling Mount: A twist-lock ceiling mount is included as a standard accessory.
- Tripod Mount for Mobile Production: The HE42 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.
- Wall Mount: An optional heavy-duty wall mount is available in either black (FEC-40WMK) or white (FEC-40WMW).
List of Supported Multi-Streaming Outputs (When priority mode “IP” is selected)
SPECIFICATIONS
| Settings | H.264 | JPEG | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CH1 | CH2*2 | CH3*2 | CH4*3 | CH1 | CH2 | CH3 | |||
| Resolution | IP selected |
1920×1080 1280×720*2 640×360*4 |
1280×720 640×360 320×180 |
1920×1080*3 1280×720*2 640×360 320×180*2 |
|||||
| Frame rate |
IP selected |
59.94 Hz | 60/30/15/5 fps | 30/15/5 fps | 30/15/5 fps | ||||
| 50 Hz | 50/25/12.5/5 fps | 25/12.5/5 fps | 25/12.5/5 fps | ||||||
| Bit rate | up to 24 Mbps otherwise | ||||||||
| Voice transmission | Yes (AAC48 KHz) | ||||||||
| PoE+ | Yes | ||||||||
SPECIFICATIONS
| GENERAL | |
|---|---|
| Power requirements | DC 12 V (Supplied AC adaptor) DC 42 V to 57 V (PoE+ power supply) |
| Current consumption | 1.3 A (Supplied AC adaptor) 0.5 A (PoE+ power supply) |
| Ambient operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Allowable humidity ranges | 20 % to 90 % (no condensation) |
| Mass | Approx. 1.5 kg (3.30 lb) |
| Dimensions (W x H x D) | 160 mm x 186 mm x 179 mm (6-5/16 inches x 7-41/128 inches x 7-3/64 inches) [excluding protrusions, direct ceiling mount bracket] |
| Finish | [AW-HE42W] Pearl white [AW-HE42K] Metallic black |
| Controller supported*1 | AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1 |
| INPUT | |
| Power | DC 12 V IN, PoE+ (IEEE802.3at standard) |
| Mic/line input | Stereo mini-jack (ø3.5 mm) Input impedance: Approx. 2 kΩ (unbalanced) [Mic input] Supported microphones: Stereo mic (plug-in power, on/off switching via menu) Supplied voltage: 2.5 V ± 0.5 V Mic input level: –60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz) [Line input] Input level: -10 dBV ± 3 dBV |
| G/L IN | |
| BBS (Black Burst Sync) signal and tri-level sync supported (BNC x 1) | |
| OUTPUT | |
| Video output | HDMI HDMI connector * HDCP is not supported. * VIERA Link is not supported. |
| 3G/HD-SDI OUT Compliant with the SMPTE424/SMPTE292M standards/75 Ω(BNC x 1) |
|
| INPUT/OUTPUT | |
| Input/Output connector | LAN LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function |
| RS-232C Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) |
|
| RS-422 CONTROL IN RS422A (RJ-45) |
|
| USB Mini-B port |
|
| SD card microSD card slot |
|
| FUNCTIONS AND PERFORMANCE | |
| [Camera unit] | |
| Imaging sensors | 1/2.3-type MOS |
| Lens | Motorized 20x zoom, F1.8 to F3.6 [f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches) equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)] |
| Focus | Switching between auto and manual |
| Focus distance | Entire zooming range:1.5 m (4.92 ft) Wide end: 10 cm (0.33 ft) |
| Color separation optical system | On-chip color filter system |
| Minimum illumination | 59.94 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation) 0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB]) |
| 50 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation) 0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB]) |
|
| Horizontal resolution | HD: 1000 TV lines Typ (Center area) |
| Gain selection*2 | Auto, 0 dB to 48 dB (3 dB step) |
| Frame mix*3 | Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
| ND filter | Auto*4, Through, 1/4, 1/16, 1/64 |
| Electronic shutter speed | During Full Auto 1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz] |
| During Auto 1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz] |
|
| During Manual 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz] 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] |
|
| Synchro scan | 59.94 Hz : 59.94 Hz to 660.09 Hz (255 step) 50 Hz : 50.00 Hz to 570.12 Hz (255 step) |
| Gamma | Off, Normal (Low, Mid, High), Cinema |
| White balance | ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
| Chroma amount variability | ±3 step |
| Scene file | Full Auto, Manual1, Manual2, Manual3 |
| Output format | HD 1080:59.94p/50p 1080:59.94i/50i 1080:29.97p/25p 1080:29.97PsF/25PsF 720:59.94p/50p |
| Synchronization system | Internal synchronization/External synchronization (BBS, Tri-level sync) |
| Image stabilization | Optical /4-axis hybrid image stabilizer for stable |
| [USB connection] * This may vary depending on the operating environment. | |
| Video output | USB Video Class Ver1.0 |
| Video compression format | Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 720, 640 x 360 |
| Frame rate | max 30 fps (59.94 Hz) max 25 fps (50 Hz) |
| Audio output | USB Audio Class Ver1.0 |
| Audio compression format | Linear PCM, 48 kHz, 16-bit, 2 channels |
| Transfer modes(JPEG) | 1920x1080/1280x720/640x360 59.94 Hz: 30fps/15fps/5fps, 50 Hz: 25fps/12.5fps/5fps |
| Supported models | Devices standardly equipped with a USB 2.0 compatible port |
| [Pan-tilt head unit] | |
| Installation method | Stand-alone (Desktop) or suspended (Hanging)*5 |
| Pan/tilt operation speed | Maximum speed during preset: 300°/s Maximum speed during manual: 90°/s |
| Panning range | ±175° |
| Tilting range | –30°to 90°*6 |
| Quietness | During preset: NC40 or less During manual: NC35 or less |
| [Camera/pan-tilt head control] | |
| IP connecting cable | When connecting through a hub: LAN cable*7 (category 5 or above),max. 100 m (328 ft) When using a PoE+ hub: LAN cable*7 (category 5e or above),max. 100 m (328 ft) When a hub is not used: LAN cable*7 (category 5 or above),max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft) |
| Standard protocol connecting cable | Mini DIN 8-pin cable, male |
| [SD card recording] | |
| SD card recording | MPEG-4 AVC file standard compliant (.MP4) |
| Video compression format | MPEG-4 AVC/H.264 High Profile |
| Audio compression format | AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
| Recording format/Bit rate | 59.94 Hz 1920x1080/59.94p (Up to 28 Mbps), 1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps), 1280x720/59.94p (Average 15 Mbps), 1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps) |
| 50 Hz 1920x1080/50p(Up to 28 Mbps), 1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps), 1280x720/50p(Average 15 Mbps), 1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps) |
|
| [Network] | |
| Transfer modes | JPEG 1920x1080, 1280x720, 640x360, 320x180, 59.94 Hz (30fps/15fps/5fps)*8, 50 Hz (25fps/12.5fps/5fps)*8 |
| H.264 1920x1080, 1280x720, 640x360, 320x180, 59.94 Hz (60fps*9/30fps/15fps/5fps)*8, 50 Hz (50fps*9/25fps/12.5fps/5fps)*8 |
|
| Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS, NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
|
| i-OS, Android support | JPEG image display |
| ACCESSORIES | |
| Mount bracket for installation surface (Hanging*10 / Desktop): 1 Drop-prevention wire (already attached to the unit): 1 Bracket mounting screws (bind-head) M4 x 10 mm: 4 Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1 Power cable (1.5 m [4.92 ft]): 1 AC adaptor: 1 CD-ROM: 1 |
|
