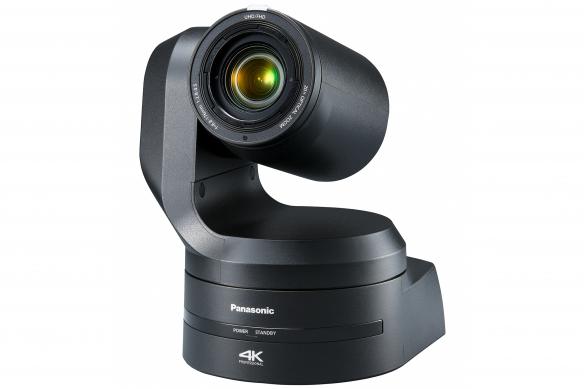

Panasonic AW-UE150 PTZ Camera 4k 60p/50p 12G-SDI Supported
Tags : panasonic AW-UE150, UE150 PTZ Camera 4k 60p, UE150 PTZ Camera 50p, UE150 12G-SDI Supported, Ue150 ราคา, pana ue150, AW-UE150, AW-UE150 ราคา, Full-HD Professional PTZ, Camera with 12G-SDI, Panasonic, panasonic AW-UE150 ราคา, ptz camera, กล้อง pan till zoom, ptz พานาโซนิค, กล้องวีดีโอ, กล้องวงจรปิด พานาโซนิค, PTZ 3GSDI, sdi camera, panasonic sdi, Pansonic, panasonic he42, HE42, Pana He42, Full hd camera, ptz panasonic, panasonic UE150 ราคา, UE150 sdi
รายละเอียดสินค้า
KEY FEATURES
First UHD/4K 59.94p Integrated PTZ Camera
75.1° horizontal viewing angle (widest in its class)
Various 4K interfaces (12G-SDI, HDMI, Optical Fiber, IP)
Optical 20x Zoom + iZoom
4K/HD Simultaneous Output
Panasonic AW-UE150 PTZ Camera 4k 60p/50p 12G-SDI Supported
The next-generation PTZ camera supports high-quality video production in stadium, lecture halls, churches and other venues. Smooth and high-quality 4K 60p/50p*1, high-magnification zoom and a wide shooting angle expand the range of the PTZ camera's applications. The camera is equipped with a variety of interfaces and supports simultaneous 4K/HD operation which allows for versatility in current and future production systems.
High-Quality 4K 60p/50p*1 Shooting
3840 x 2160 4K output and 59.94p/50p*1 shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
■Output format
4K 2160/59.94p, 2160/50p, 2160/29.97p*2, 2160/25p*2, 2160/24p*2, 2160/23.98p*2
HD 1080/59.94p, 1080/50p, 1080/29.97p*2, 1080/29.97PsF, 1080/25p*2, 1080/25PsF, 1080/23.98p*3, 1080/24p*2, 1080/23.98p*2, 1080/23.98PsF, 1080/59.94i, 1080/50i
720/59.94p, 720/50p
*1: Actual output format is UHD (3840 x 2160) 59.94p/50p.
*2: Native output.
*3: It denotes “1080/23.98p over 59.94i”.
1.0-type MOS Sensor Mounted
The large 1.0-type MOS sensor enables high sensitivity shooting with low noise. The sensor boasts a light-capturing area that is approximately four times larger than that of the 1/2.3-type sensor to guarantee a wide dynamic range.
Optical 20x Zoom / Industry’s First* 75.1° Horizontal Wide-Angle Shooting
Adding “i zoom” to our optical 20x zoom, maintains high resolution while enabling ultra-high resolution 32x zoom in HD mode and 24x zoom in 4K mode. This enables distant subjects to be captured clearly. Furthermore, 75.1° horizontal wide-angle shooting enables capture of the entire area, even when installation space is limited.
* Internal investigation, Nov. 2018.
HDR (HLG) Support*4
The camera supports HDR (High Dynamic Range) to prevent blown-out highlights and blocked-up shadows and enable picture quality close to that of the naked eye. Conforms to BT.2020.
* *Images are simulated.
*4: The display color space does not completely comply with BT.2020. The color balance is shifted to display according to the BT.2020 color gamut.
Optical Image Stabilizer (OIS) Loaded
Vibrations of the mounted surface caused by doors opening and closing, audio systems and other installed equipment are automatically corrected to ensure stable shooting.
Night Mode Support
Equipped with Night Mode for infrared shooting. The use of IR rays in low-light situations enables shooting in situations that would normally be difficult, such as when capturing wildlife (image output is black and white).
Incredible Pan and Tilt Performance
Pan and tilt operate from a minimum speed of 0.08°/s to a maximum of 180°/s in high-speed mode. This is approximately 3 times the speed of our current product*5 for rapid capture of the intended target. Furthermore, a low noise level of NC35 or less has been ensured when operating in normal mode, which is perfect for shooting in quiet environments*6.
*5: Comparison with our current product, AW-HE130W/K.
*6: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode.
Cropping Function
Images shot in 4K can be output in their entirety while simultaneously cropping parts of those images. The cropping position can be specified from a maximum of 3 locations to enable simple operation from the Remote Camera Controller AW-RP150GJ, a web browser or other operations screen.
* Images are simulated.
Equipped with a large Tally Lamp
Easy to see from a distance
Multiple Interfaces Supported
A wide range of outputs are supported: 12G-SDI, 3G-SDI, HDMI, IP and even Optical Fiber output. The addition of 4K/HD simultaneous output guarantees the right output for the operation at hand. 4K video can be down converted to HD directly within the camera.
* Images are simulated. Click to open expanded view
*7: Abbreviation of Power over Ethernet Plus Plus. Conforms to IEEE802.3bt.
Adaptive Matrix prevents color overloaded from blue LEDs*
Equipped with an Adaptive Matrix function that automatically controls matrix calculation coefficients. This enables shooting while preventing color overloaded, even during live events and on stages with strong blue LED lights.
*Use may require a software version update.
WEB UI Improved
Camera IP image output, settings and control can be performed using a web browser on a computer connected via an IP network. In addition to PCs and Macs, iPads, iPhones*1, Androids and other mobile devices can be used for operation, and this pursuit of easy-to-use interfaces has enabled smooth camera control from remote locations.
Camera control screen * Windows operation depicted.
*For supported browsers, see specifications.
*1: Use may require a software version update.
AW-RP150GJ Connection for Large-Scale Production Systems
IP connection from the Remote Camera Controller AW-RP150GJ through a HUB (switching hub) enables control of up to 200 AW-UE150W/K units. Furthermore, a single AW-UE150W/K unit can be controlled from up to 5 AW-RP150GJ units.
For more information about AW-RP150GJ
JPEG Image Saving Function Equipped*
Up to 100 still images can be captured and saved as JPEG files to the built-in camera memory.
*Use may require a software version update.
NDI | HX Compatibility for Excellent Video Streaming Quality
The AW-UE150W/K can be upgraded to an NDI | HX compatible model if purchasing a license. Highly efficient NDI | HX compatibility enables high-quality video to be encoded and transmitted in real-time and input signals to be directly sent to a switcher (AV-HLC100) without the need for an IP decoder.
* 4K image output not supported in NDI|HX mode.
* Contact your local Panasonic reseller for further information.
• NDI|HX, a technology of NewTek, Inc.
For more information about AV-HLC100
Direct Broadcast via RTMP (Real-Time Messaging Protocol)
RTMP (Real-Time Messaging Protocol) is supported to enable direct upload of video to live-streaming services such as YouTube Live and Facebook Live. This means a live stream can be broadcast directly from the camera.
SPECIFICATIONS
| GENERAL> | |
|---|---|
| Power Requirements: | 12 V DC (10.8 V to 13.2 V) |
| PoE++: | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) |
| Current Consumption: | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity: | 20 % to 90 % (no condensation) |
| Storage Temperature: | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass: | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) |
| Dimensions (W x H x D): | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish: | AW‑UE150WP/AW‑UE150WE: Pearl white AW‑UE150KP/AW‑UE150KE: Black |
| Controller Supported: | AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1 |
| Imaging Sensors: | 1-type 4K MOS×1 |
| Lens: | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom: | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • Digital zoom: 10x |
| Conversion Lens: | Not supported |
| Angle of View Range: | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter: | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus: | Switching between auto and manual |
| Focus Distance: | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System: | 1MOS |
| Standard Sensitivity: | F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination: | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| S/N: | 60 dB or more |
| Horizontal Resolution: | 1600 TV lines Typ (Center area) |
| Gain Selection: | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3: | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed: | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|
| 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|
| 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|
| 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|
| Synchro Scan: | 59.94p/59.94i 60.00 Hz to 7200 Hz |
| 29.97p 30.00 Hz to 7200 Hz |
|
| 23.98p/24p 24.00 Hz to 7200 Hz |
|
| 50p/50i 50.00 Hz to 7200 Hz |
|
| 25p 25.00 Hz to 7200 Hz |
|
| Gamma: | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance: | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability: | OFF, –99 % to 99 % |
| Scene File: | Scene1, Scene2, Scene3, Scene4 |
| Output Format: | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 |
| HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| Internal / External synchronization (BBS / Tri-level sync) | |
| Input Connector: | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Video Output: | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT SMPTE 2082‑1 standard / 75 Ω (BNC x 1) |
|
| 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| MONI OUT SMPTE292 / 75 Ω (BNC x 1) |
|
| Optical Fiber SFP+ standard Single Fiber • The signal sent is the same as 12G-SDI OUT. • This unit does not support input by optical signals. |
|
| Input / Output Connector: | LAN LAN connector for IP control (RJ‑45) |
| RS-422 CONTROL IN RS-422A (RJ‑45) |
|
| MIC/LINE input ø 3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV ±3 dBV |
|
| Camera/Pan-tilt Head Control: | IP connecting cable • LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) |
| AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft) |
|
| Installation Method: | Stand-alone (Desktop) or suspended (Hanging)*8 |
| Pan/tilt Operation Speed: | Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 • Maximum speed is 180°/s in high-speed mode |
| Panning Range: | ±175° |
| Tilting range: | –30° to 210°*10 |
| Quietness: | NC35 or less |
| Supported operating systems and web browsers: |
Windows Microsoft® Windows® 7, 10 Windows® Internet Explorer® 11 (64‑bit/32‑bit) Microsoft Edge Google Chrome |
| Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome |
|
| Image Streaming Mode: | JPEG (MJPEG), H.264, H.265 |
| Image Resolution: | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 |
| Image Transmission setting (JPEG): | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
| Image Transmission Setting (H.264): | ■ Image quality (Motion priority / Image quality priority) UHD 60 fps / 50 fps ■ Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■ Transmission Priority Constant bit rate Frame rate Best effort |
| Image Transmission Setting (H.264): | ■ Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) ■ Max Bit Rate HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/ 3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/ 12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/ 32768kbps/40960kbps/51200kbps/76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps |
| Image Transmission Setting (H.265): | ■ Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■ Frame Rate [60Hz] 30fps [50Hz] 25fps ■ Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps |
| Audio Compression Type: | AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported Protocol: | ■ IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP ■ IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP |
| NDI support*12: | NDI | HX |
| Tally LED display color: | red / green |
