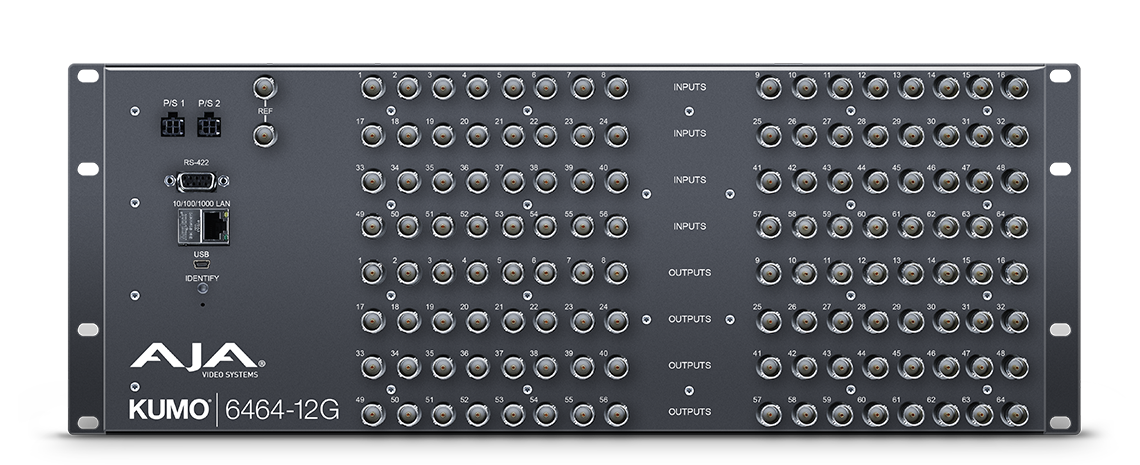

KUMO 6464 Compact 64x64 3G-SDI Router

• 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
• 270 Mbps DVB-ASI
• Format agnostic, 270 Mbps - 12 Gbps

• 12G-SDI Inputs
• 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

• 12G-SDI Outputs
• 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• Noninverting

• Passes all SDI embedded ancillary data including audio

• Up to 8 Salvos can be configured and saved in each KUMO router

(Belden 1694A)

• 12Gbps, up to 50m
• 6Gbps, up to 90m
• 3Gbps, up to 180m
• 1.5Gbps, up to 210m
• 270Mbps, up to 390m
• Automatic operation

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked

• Single, Dual, and Quad link modes
• Switches in vertical blanking per SMPTE RP-168

• AJA KUMO CP (First 32 I/O in Normal, all I/O in Dual or Quad mode) – 1RU X-Y Ethernet control panel
• AJA KUMO CP2 (Single, Dual or Quad mode) – 2RU X-Y Ethernet control panel

• External, 2x BNC
• Looping, nonterminating
• Blackburst or tri-level sync

• 1x RJ-45, 10/100/1000 Ethernet
• Supports AJA KUMO Ethernet control panels, direct connect or networked
• Basic support for Grass Valley Native Protocol
• Embedded web server for remote control

• 1x Mini-USB for IP configuration using AJA eMini-Setup

• 1x DB-9 Female, RS-422
• Basic support for Grass Valley Native Protocol
• 9-pin D-connector pinout is as follows:

• 2RU - 17.4" x 1.54" x 3.50" (441.96 x 39.12 x 88.9 mm)

• 9.2 lbs (4.2 kg)

• 10-14VDC regulated, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
