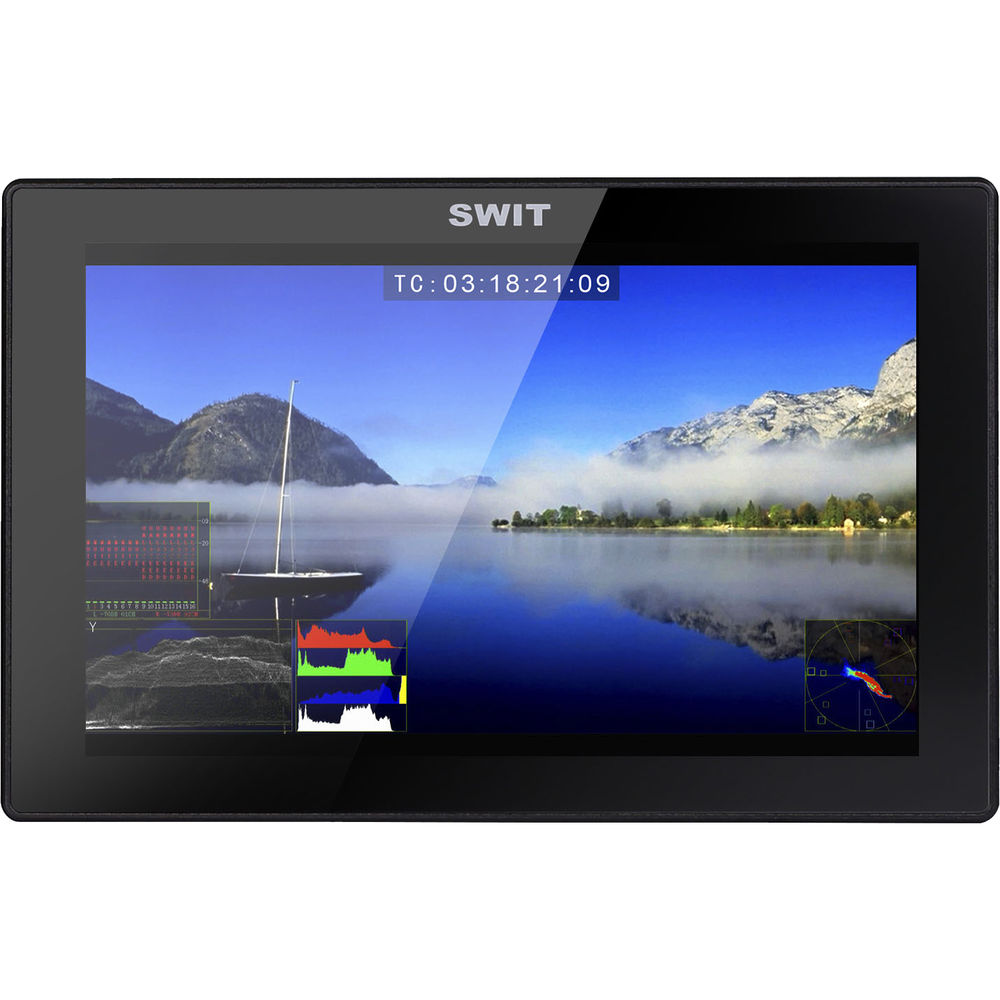

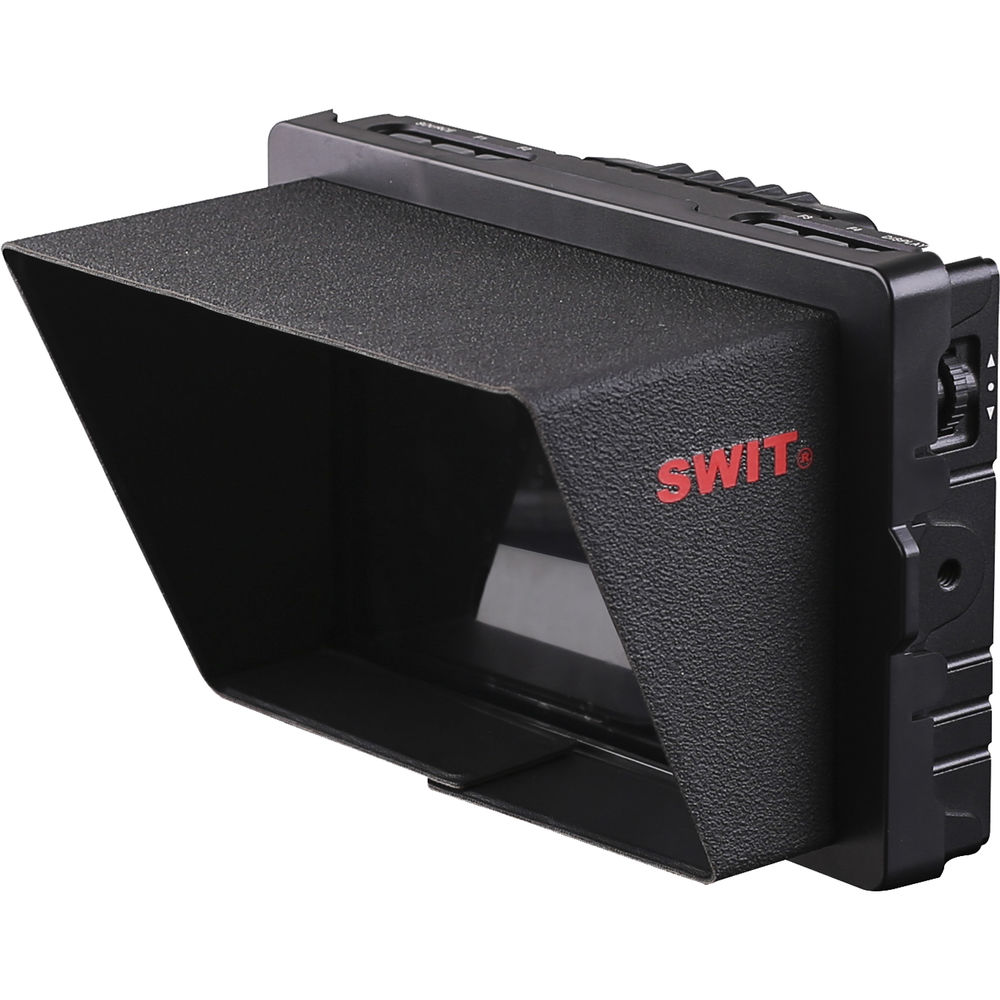

SWIT S-1073F 7" Full HD Waveform LCD Monitor with S-7006S V-Mount Battery Plate

7-inch Full HD LCD

Optical bonding

The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Input/Output Interfaces
SDI & HDMI

• S-1073F monitor supports:
• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 1
• HDMI 1.3 input × 1
• HDMI 1.3 loop output × 1
• HDMI to SDI output × 1 (share SDI loop port)
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1
• GPI/TALLY input × 1
• USB × 1 (firmware upgrade)

Build-in HDMI to SDI Conversion

S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.ล
