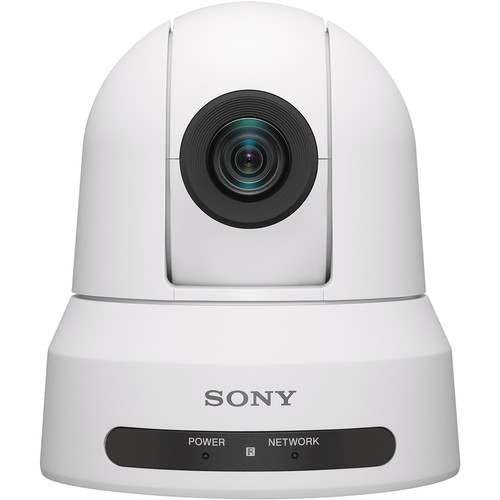

SRG-X120(SRGX120) IP 4K* Pan-Tilt-Zoom Camera with NDI®**|HX capability
Capture every point of view with excellent 4K* picture quality and efficient IP production workflow
The versatile SRG-X120 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces and medical environments.

Features

Excellent images, even in low light

The sensitive 1/2.5-type Exmor R™ sensor captures high-quality images with very low noise, even in dimly-lit environments.

4K upgrade option

Upgrade to 4K shooting via optional license.

Wide viewing angle

Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70° and up to 12x zoom capability.

Ideal for lecture caputure

Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.

High speed movement and Picture Freeze Preset

Accurately capture the presenter's movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.

Smooth pan-tilt-zoom

PTZ Motion Sync function* allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.

* Requires firmware V2.00.

Simpler installation, lower costs

A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.

Support for NDI®*|HX

NDI®|HX compatibility (via optional license) enables cost-effictive school studio system integration, allowing flexible configuration with other networked NDI®-enabled devices.

* NDI® is a registered trademark of NewTek, Inc. Network services, content, and the [operating system and] software of this product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information.

Flexible and efficient IP-based production

In addition to RTSP, RTMP(S)* and SRT* (Secure Reliable Transport) are supported. Video can be streamed directly from camera to online streaming service, also can be transmitted more securely, with lower latency and more stably even in unstable network environment.

* Requires firmware V3.00.

Fast, fuss-free set-up

The new Picture Setting File* function can apply the same camera settings among multiple cameras for fast set-up.

* Requires firmware V2.00.


Specifications

Camera
Image Sensor
1/2.5 type ExmorR CMOS

Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels

Signal System
2160 (*1)/29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p

4K Capability
Yes (requires 4K optional license)

Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)

Horizontal Resolution
1700 TV lines (Center) (4K*1)
1000 TV lines or higher (Center) (FHD)

Gain
Auto/Manual (0 to +48 dB) (High Sensitivity On)

Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50Hz system)

Exposure Control
Auto, Manual, Priority AE (Shutter, Iris)

White Balance
Auto1, Auto2, One Push
WB, Indoor, Outdoor, Manual

Zoom capability
12x

Focusing System
Auto/Manual

Horizontal Viewing Angle
Approx. 70° (Wide)

Focal Length
f=4.4mm (Wide) to 52.8mm (Tele)
F2.0 to F3.7

Minimum Object Distance
80 mm (Wide)~
400 mm (Tele)

Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°

Pan/Tilt Speed (Max.)
Pan: 300°/s
Tilt: 126°/s

Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s

Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s

Pan/Tilt Slow Mode
Yes

Pan/Tilt Operation Noise
NC30 or less *
* Sony measurement conditions

Preset Position
256 (CGI)
100 (VISCA)

Picture Freeze Preset
Yes

PTZ Motion Sync
Yes

Network
IP Video resolution
3840x2160 (*1), 1920x1080, 1280x720, 720x576, 720x480, 640x360

Compression Format
H.264: High, Main, Baseline Profile
H.265: Main Profile

Maximum Frame Rate
H.264: 60fps
H.265: 60fps

Bitrate Compression Mode
CBR/VBR (selectable)

Range of Bitrate Setting
512Kbps~50 Mbps

Multi Streaming Capability
3

Maximum Number of Clients
5

Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP

NDI®|HX Capability
Yes (requires a license sold separately)

Camera Features
Auto ICR
(Auto mode of IR Cut filter Removal)
Yes

Day/Night
Yes

Visibility Enhancer
Yes

Image Stabilization
Yes

Image Flip
Yes

Picture Setting File
Yes

Flicker Cancel
On/Off

Hide OSD Menu
On/Off

Standby Mode
Yes

Remote Standby
Yes

Web UI
Ver Up
Yes

Audio
Channel
2ch

Audio Codec
AAC LC 128 kbps/ST (IP)
AAC LC 256 kbps/ST (IP)

Setting Option
Auto Level Control (ALC): On/Off
Equalizer: Off, Low cut, Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec

Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)

Embedded Audio in IP Streaming
Yes

Interface
4K Video Output
HDMI x1 and IP (streaming) x1 (*1)

HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1

Remote Video Format Switching
Yes

HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit

Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45

IR Remote Control
Yes

Microphone Input
Mini-phone (φ3.5mm) x2, (Mic/Line Selectabe)

Sync. System
INT

Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4

General
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)

Power Consumption
25.5 W Max.

Operating Temperature
0 °C to 40 °C
32 °F to 104 °F

Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F

Dimensions (W x H x D) *2
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch

Mass *2
Approx. 1.8 kg
3 lb 15.5 oz

Camera Body Color
White/Black

Size of Screw Hole for Tripod
1/4-20UNC x1

Mountable Angle
< ±15°

Ceiling Mount
Yes

Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)

Notes
*1
Available after an upgrade via a 4K optional license.

*2
The values for dimensions and mass are approximate
