Aver Media Cam520 Pro(POE)

Specs

Camera

Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions

Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps

SmartFrame for automatic FOV adjustment to fit all participants

True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions

Zoom: 18X total zoom (12X optical zoom)

Wide field of view (DFOV): 82°

Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)

Lens F#: 1.8 (wide) ~ 2.8 (tele)

Mirror, flip, AE, white balance: auto/manual override via PTZApp

Minimum focus distance: 1.5 m

Standard tripod screw holes and Kensington slot

Motorized Pan & Tilt Movement

Pan: ±170°

Tilt: +90° (up) -30° (down)

10 camera presets (via remote control)

Fast and quiet pan/tilt movement

Video Format

YUV, YUY2, MJPEG, NV12

Network video compression format: H.264

Network protocol: RTSP, RTMP

HDMI & PoE**

HDMI 1.3: Up to 1080p 60fps

DIP Switch

PoE+: 802.3at

** There are two SKUs for CAM520 Pro: CAM520 Pro and CAM520 Pro (PoE). HDMI & PoE functions are only included for the CAM520 Pro (PoE) SKU. Please contact your local agents to get these features.

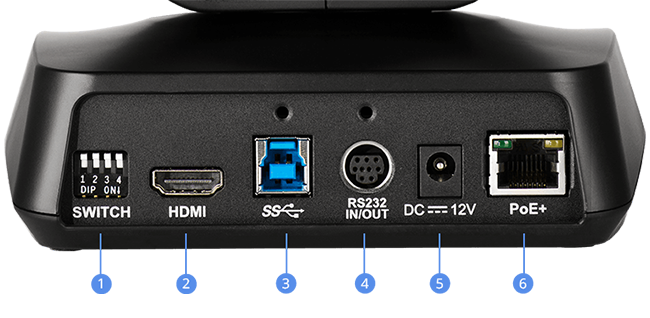

Connectivity

12V/2A power adaptor

Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)

USB 3.1 type-B connector

IP (RJ45)

HDMI **

** Only available for CAM520 Pro (PoE) SKU

USB

3.1 Gen1 Type B, backward compatible with USB 2.0

UVC (USB video class) 1.1

Control

IR remote control

VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)

Remote side: VISCA over IP, IP (RJ45)

UVC/UAC plug and play

WebUI: Browser IP access via Chrome (Does not support Internet Explorer)

OSD setting: HDMI out to TV monitor**

PTZApp

** Only available for CAM520 Pro (PoE) SKU

Mount

Camera wall-mount bracket included

Optional foldable TV mount

System Requirements

Windows® 7/10

Windows® 10 Enterprise (IoT) LTSC (version 1809)

Mac OS X 10.7 or higher

Google Chromebook™ version 29.0.1547.70

Android 5 or higher
