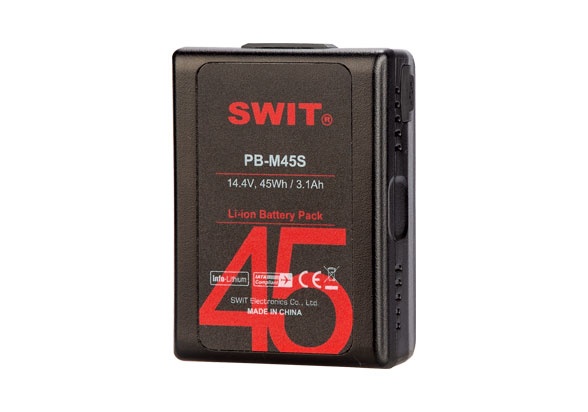

SWIT PB-M45S Battery V-mount 45Wh

Tiny V-mount battery

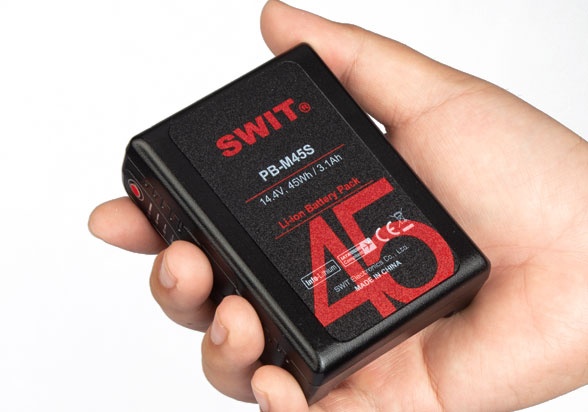

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M45S Pocket V-mount battery is a perfect solution!
It’s only a DV battery size, 45Wh capacity, and without any compromise on the DC sockets!

45Wh Fly Friendly

150W/12A constant high load

PB-M45S consists of 4pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The Constant load is as high as 150W, 12A, applicable for high power lightings.

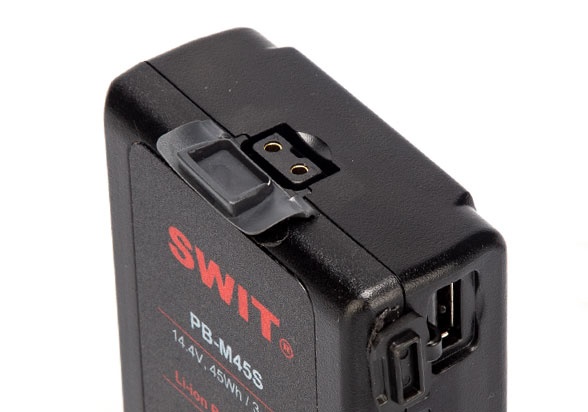

Built-in D-tap and USB

The pocket size PB-M45S still has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M45S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A. The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M45S: Approx. 75 min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M45S: Approx. 75 min
Charge 2x PB-M45S: Approx. 2 hours

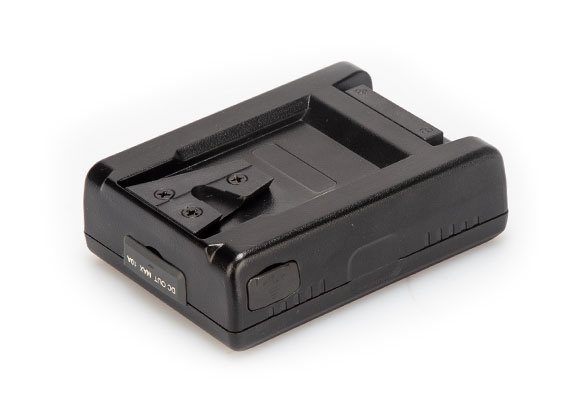

Hot-Swap Adaptor

You can use 2x PB-M45S hot-swapable on cam- eras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.
