43B4E31T

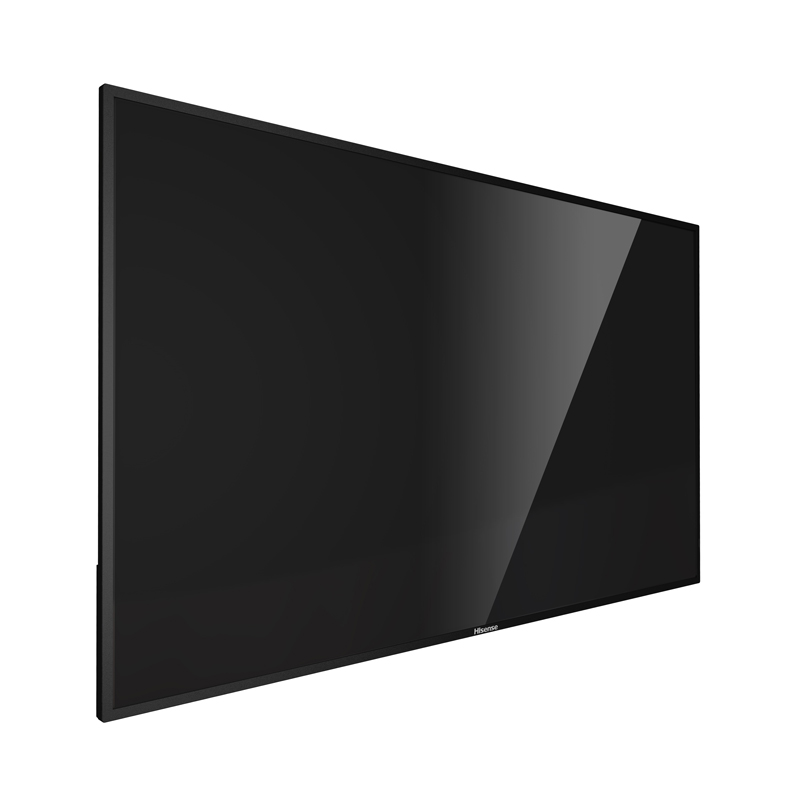

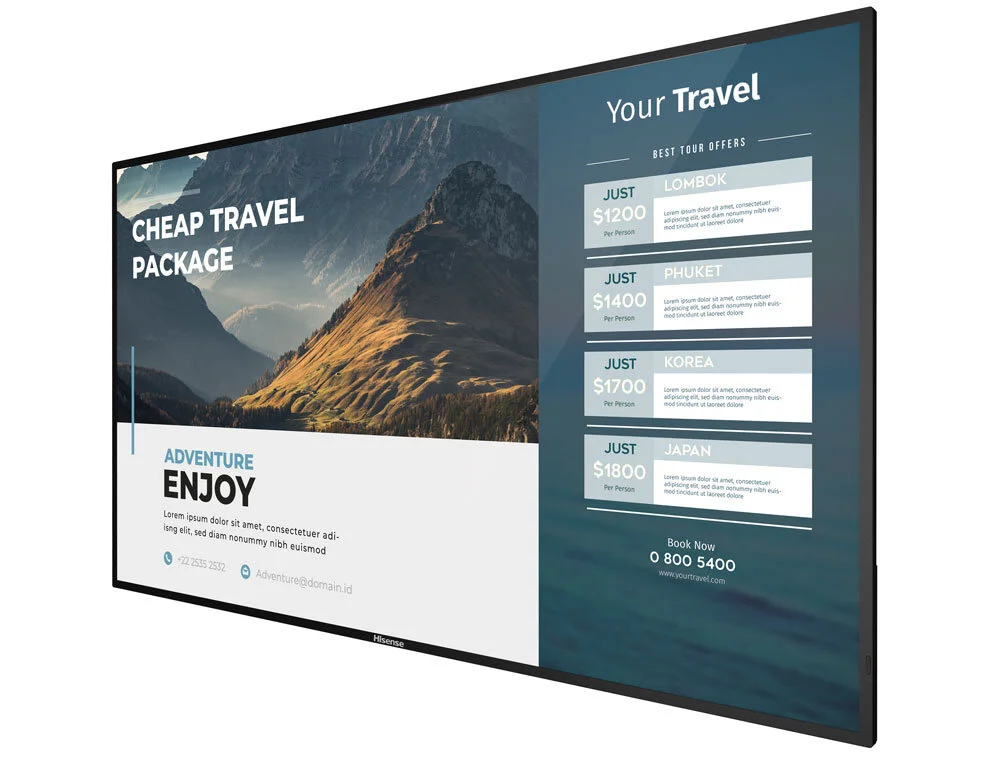

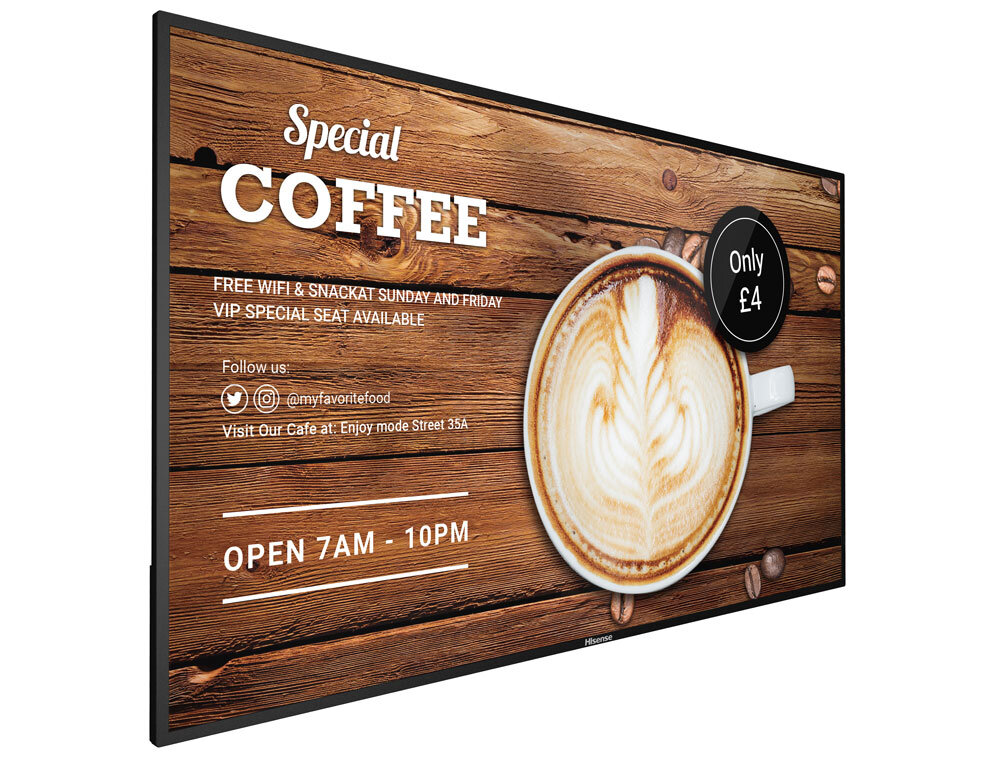

43” 4K UHD Digital Signage Display
Hisense Digital Signage Display’s are ideal for retail and business environments. The products are the perfect backbone of a digital broadcasting platform in supermarkets, restaurants, stadiums, shopping malls and office buildings. A combination of seamless design and enhanced 500 nits brightness will ensure your digital content vividly stands out from the crowd.
Specifications
Panel
Backlight: DLED
Size: 43’’
Resolution: 3840 x 2160
Refresh rate: 60HZ
Brightness: 500 nits (typ)
Contrast(typ): 1200:1 (typ)
Orientation: Landscape & Portrait
MTBF: 30000Hrs(min)
Operation Hours: 7Day*16Hour
Control Method
Remote: IR
RS232: RS232*1 (RJ45)
Speaker
Built in speaker: 8W x2
Power
Input: AC 100V-240V@50-60HZ
Power Consumption: 175W
Standby Consumption: <0.5W
Environment
Operation Temperaturer: 0 - 40°
Operation Humidity: 20% - 80%
Connectivity
WIFI: 2.4G/5G
LAN: 10/100Mbps
Operating System
OS: Android 8.0
Physical
Bezel Color: Black
Set Dimension(WxHxD):973mm*561.2mm*63.5mm
Bezel width (T/L/R/B): T/B/L/R:13.9mm
Net Weight: 10.9kg
Packing Dimension(WxHxD): 1070 x 696 x 159mm
Packed Weight: 13.3kg
VESA: 200mm*200mm
Certification
Standard Certification: CB,CE,ERP,RCM
What’s in the box
User manual
Remote controller inc battery
Power cord
RS232 cable
HDMI cable
Key Features
Opening hours’ operation
Designed with dual-core System on Chip (SoC) technology the Hisense B4E31T series can be used for broadcasting both offline and cloud based content 16 hours a day, 7 days a week. You are completely free to choose your CMS to help display your advertising. And if necessary the internal memory will allow you to save and play media as a PC-less solution for instant broadcast.
Smart CMS
Hisense’s CMS platform allows you to edit and arrange playlists, making content management easy and user-friendly. It supports all rich media content in synchronous playback over a multitude of commercial displays. Besides this status monitoring and real-time control will allow you to quickly and centrally respond to any emergency.
178° Wide viewing angle
The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view B4E31T displays from diverse angles while passing by.
Landscape & portrait
Both landscape and portrait orientations are possible, providing you with endless creative and functional possibilities to fulfil your commercial or informative goals.
500 nits
With 500 nits maximum brightness, the panels are well equipped to make your content vividly stand out in any commercial location.
4K Ultra HD
The 4K Ultra HD picture quality* ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops, to restaurants and office buildings.
Automatic time zone
When connected to the Internet each display will automatically synchronise to its local timezone. Making sure scheduled media broadcast is always in sync.
Customisation
Hisense’s B4E31T displays support a variety of on-screen customisations such as custom startup logo, startup animation, wallpaper and many more. Creating a uniform look & feel for all people working with or viewing the displays

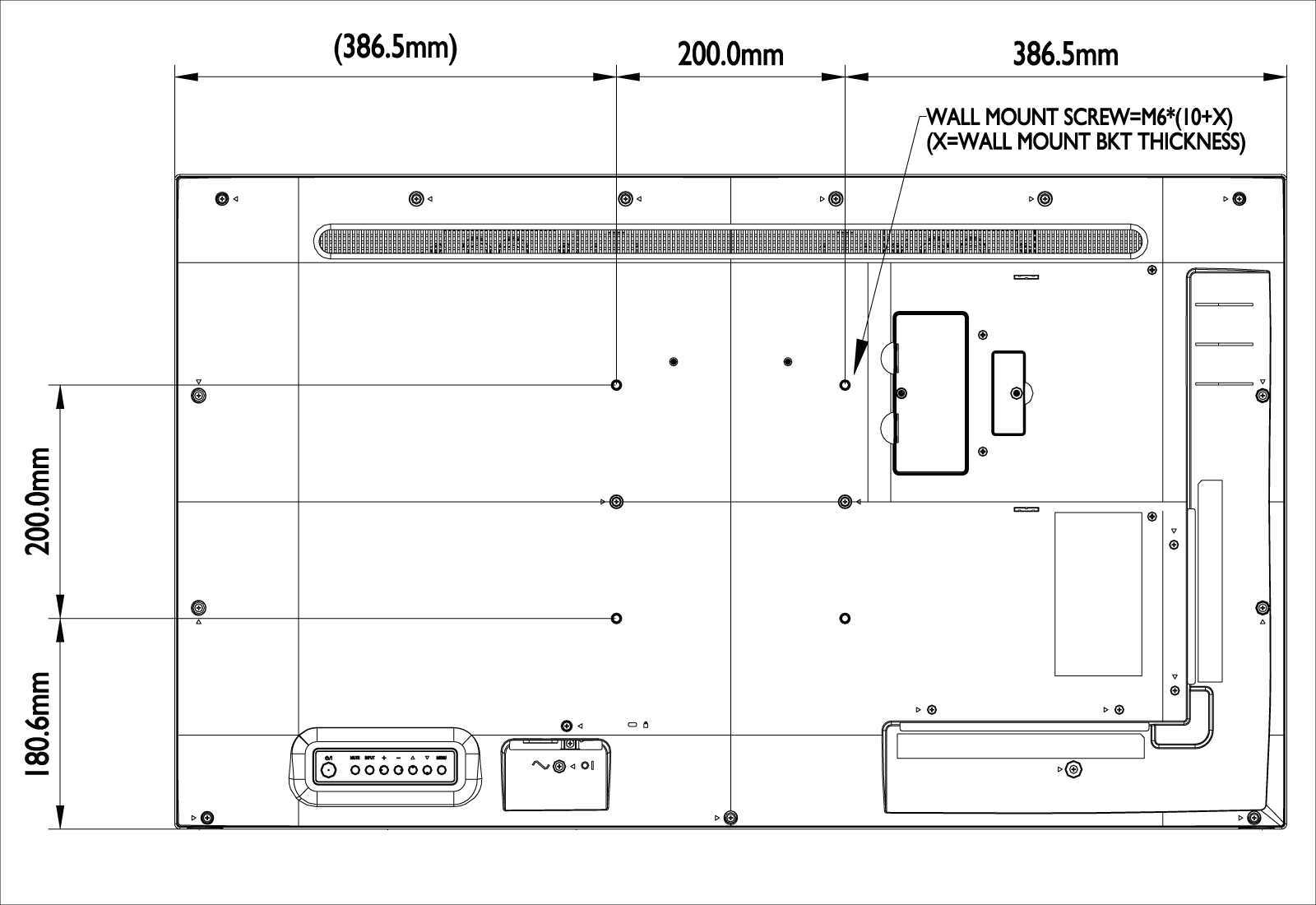

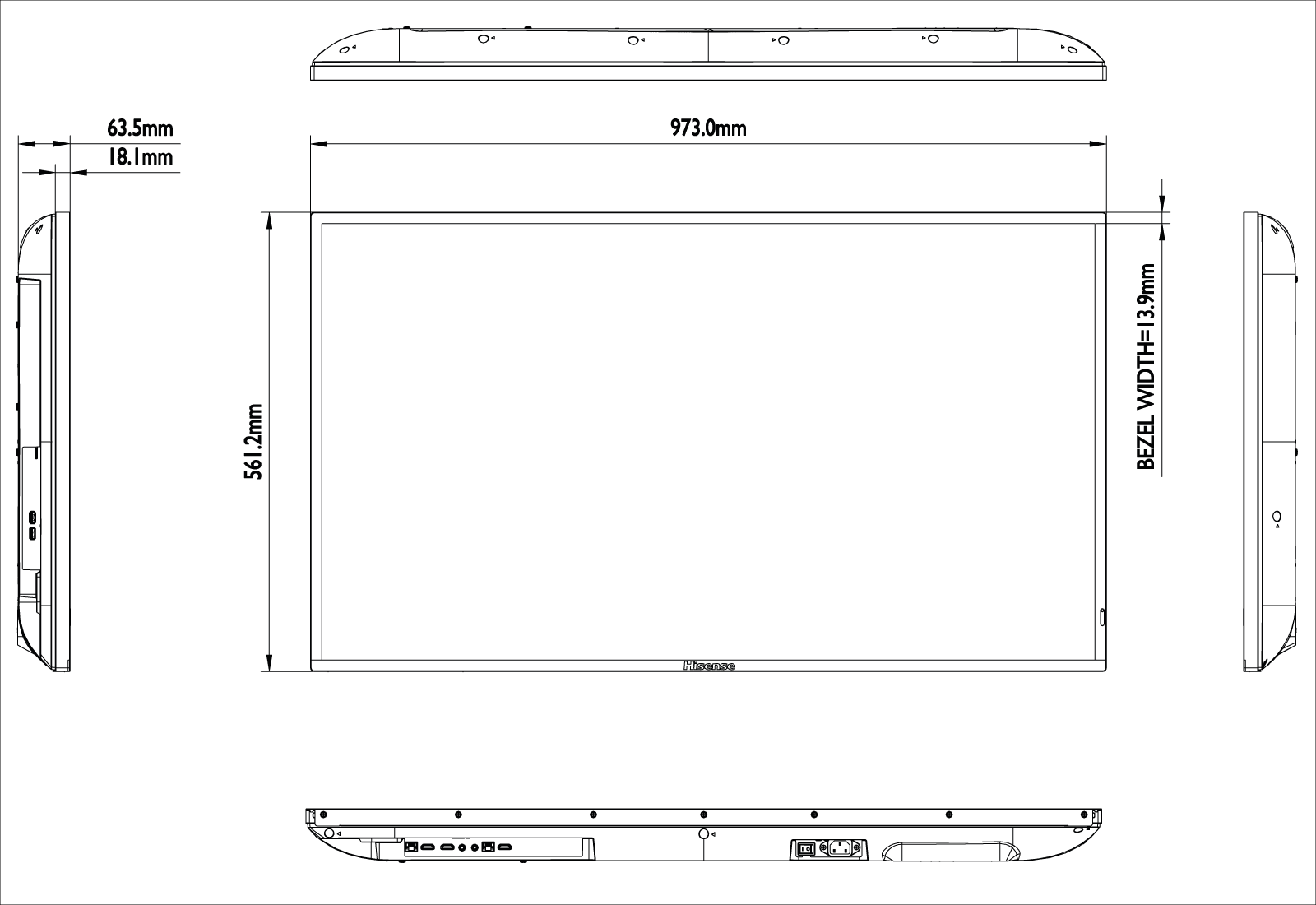

Dimensions

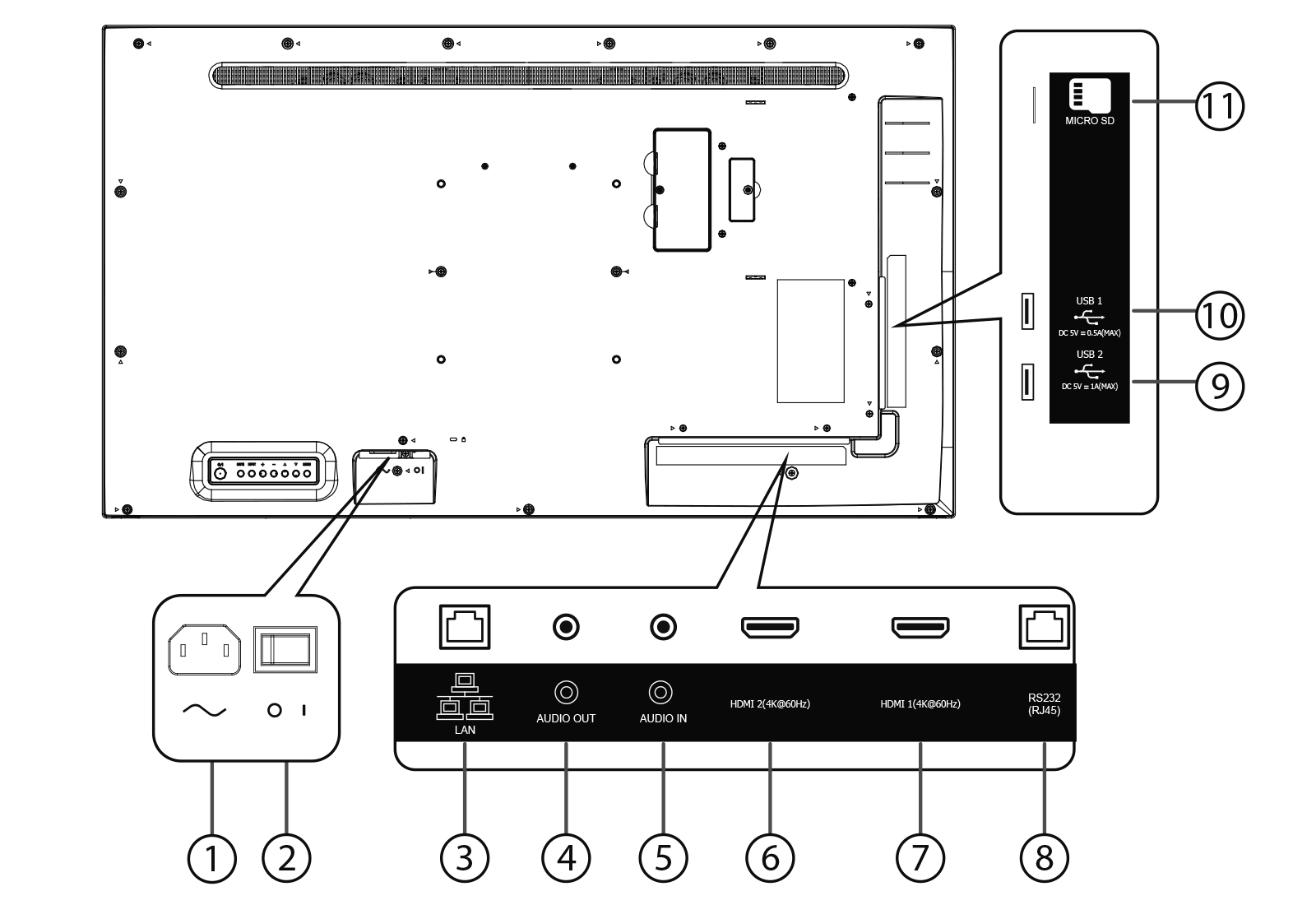

Connectivity
1. AC IN
2. Main Power Switch
3. LAN
4. Audio OUT
5. Audio IN
6. HDMI2 IN
7. HDMI1 IN
8. RS232
9. USB2 Port
10. USB1 Port
11. MICRO SD
