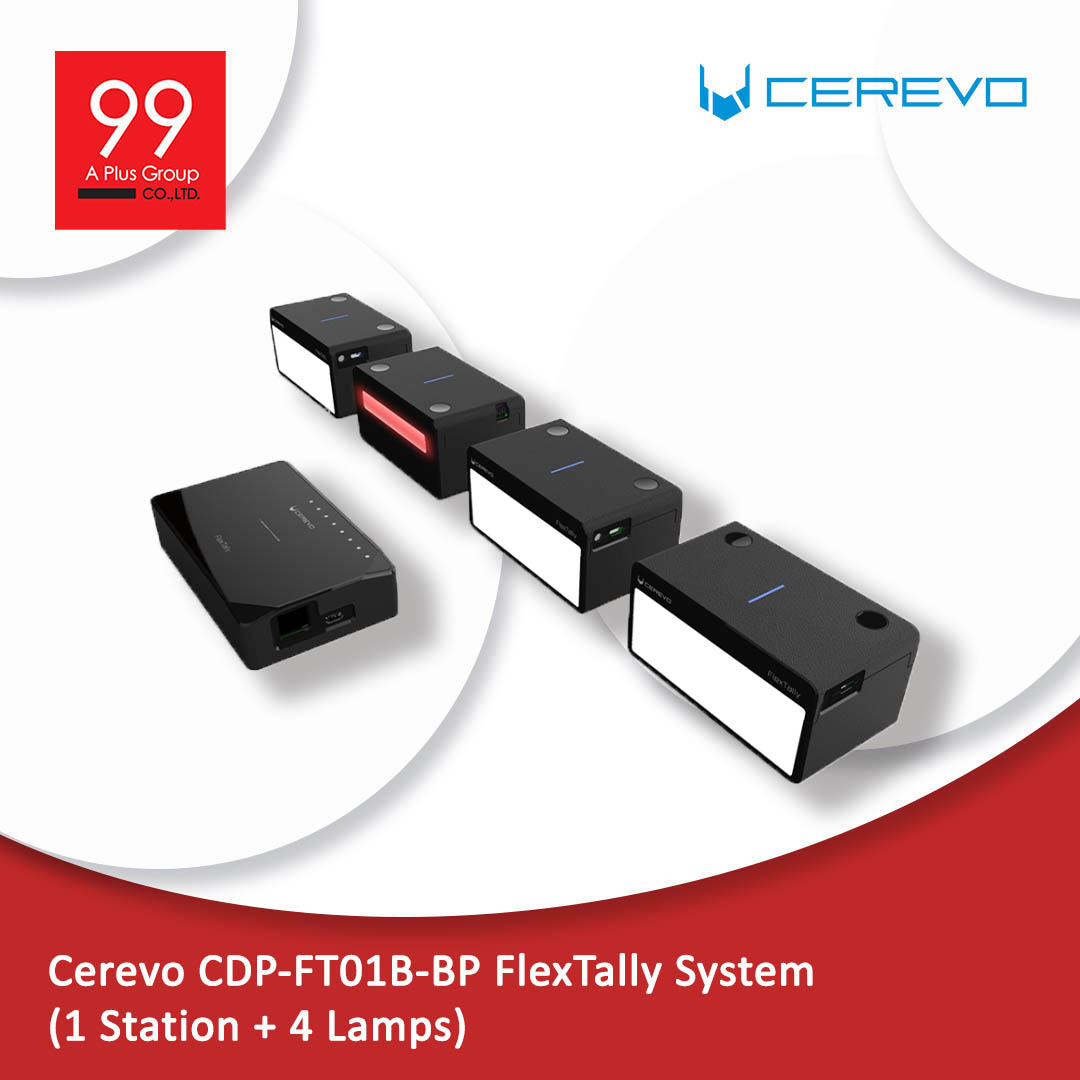

Cerevo CDP-FT01B-BP FlexTally System (1 Station + 4 Lamps)

FlexTally is now supplied with a durable equipment bag, enabling more secure storage for FlexTally and accessories.

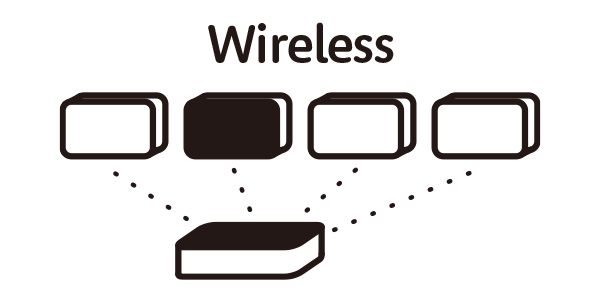

FlexTally is a tally lamp system designed for easy to operate and is available at a price range that means even small studios or streaming sites can look to add it to their multi-camera setups. FlexTally can be used via either wireless or wired connections for added convenience and its built-in battery allows for portability and use in remote shooting locations.


Specifications

Dimensions

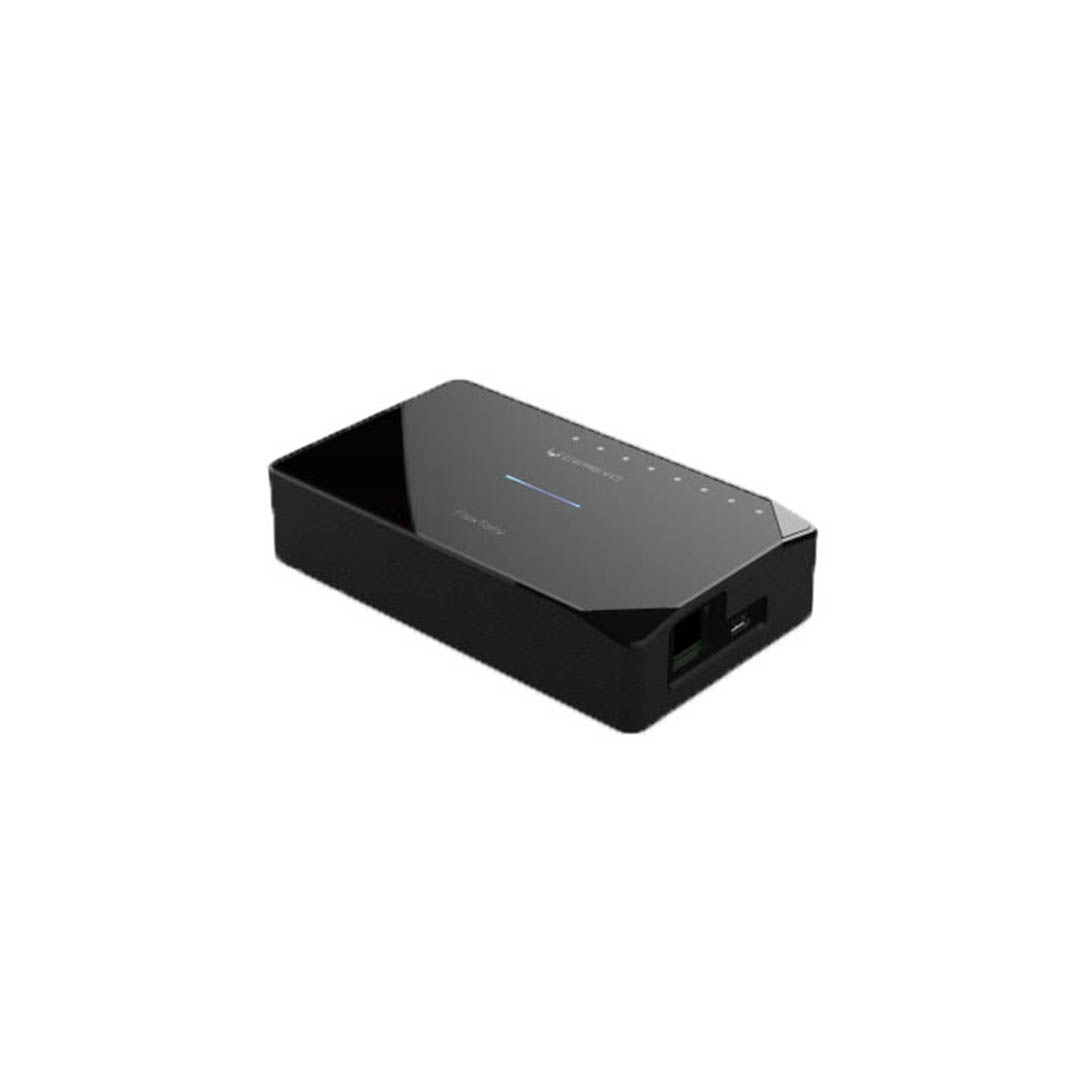

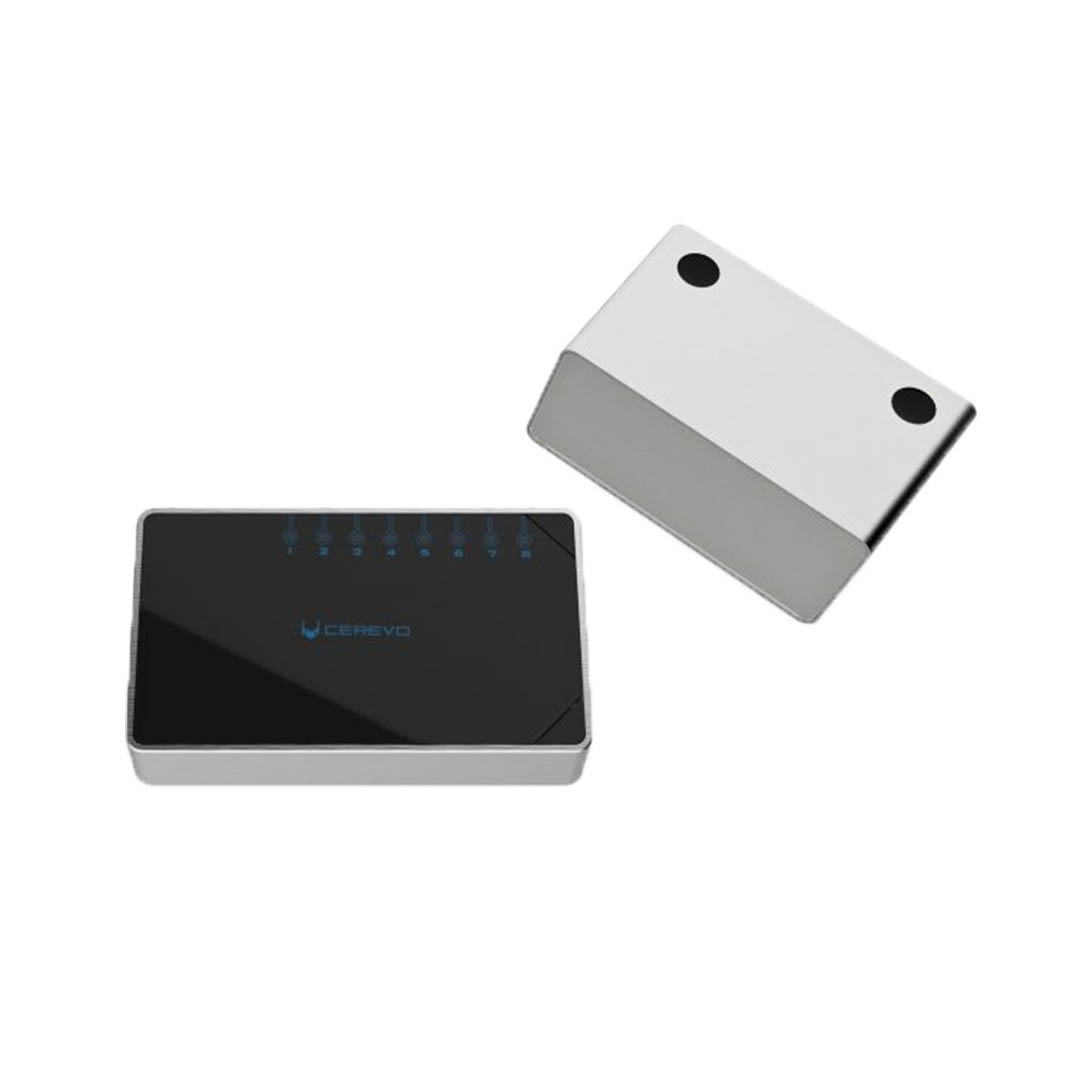

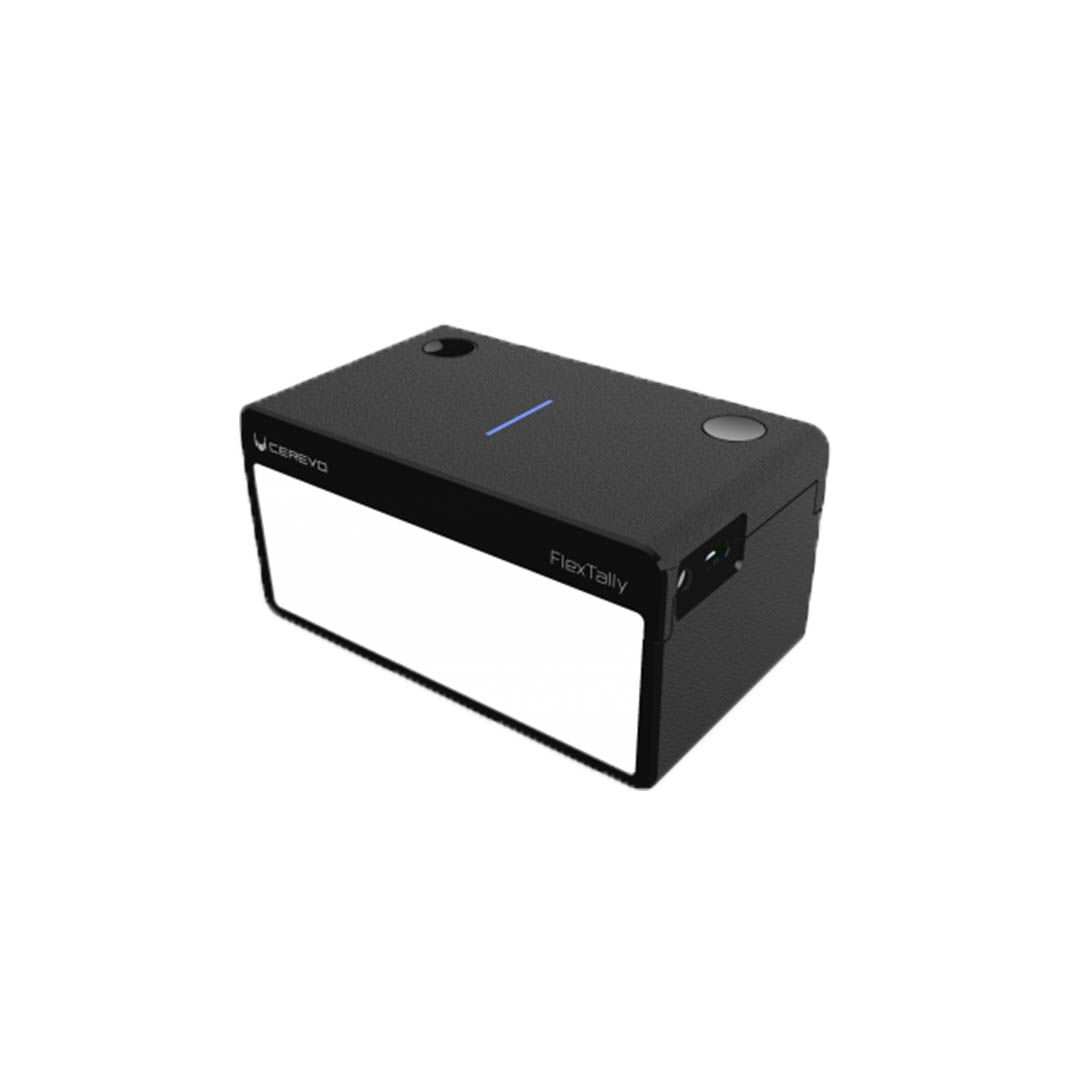

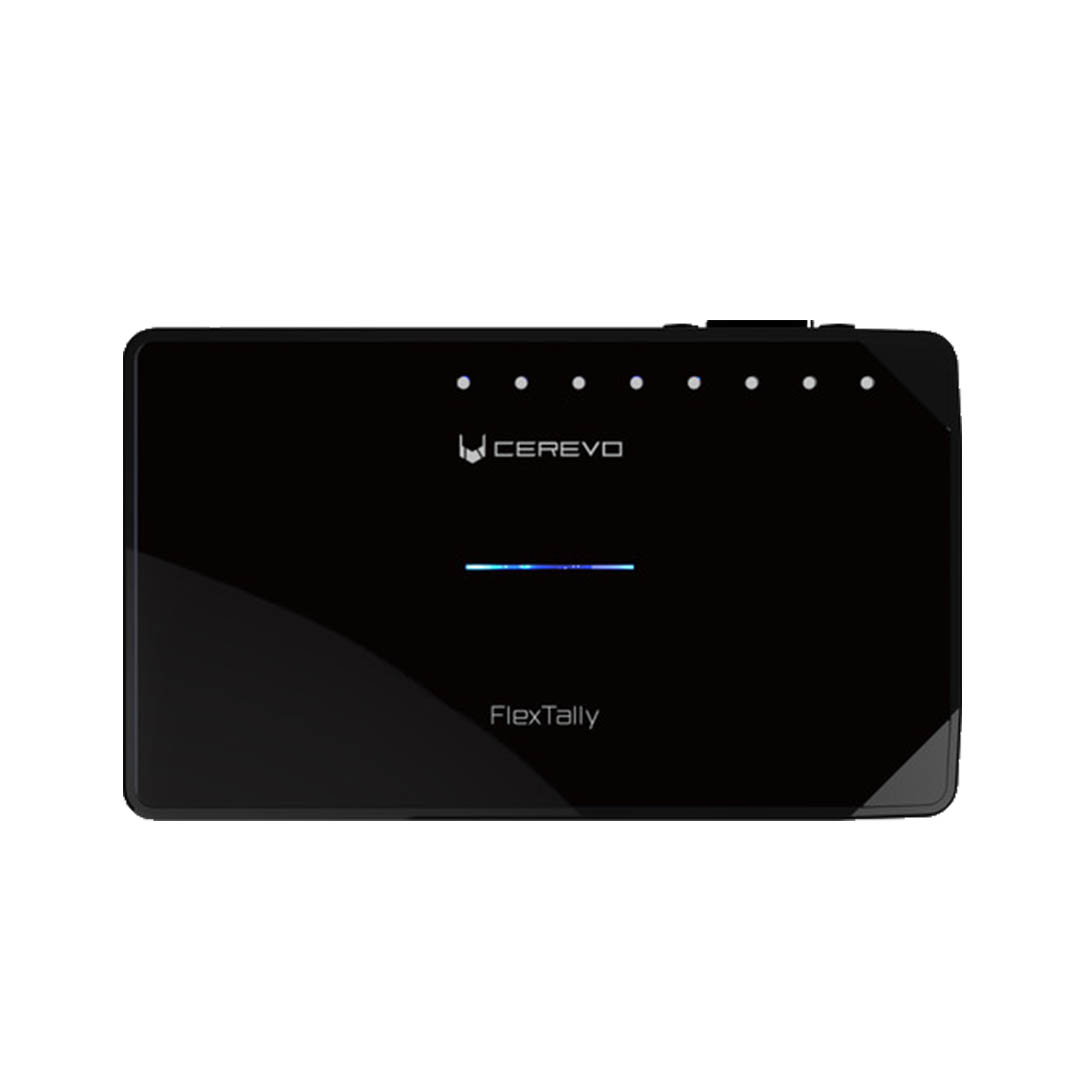

Station unit: W128 x D77 x H28 mm / Lamp unit: W100 x D60 x H50 mm

Weight

Station unit: 142g / Lamp unit: 164g

Wireless Connectivity

433MHz (US/EU)(*3)

Wired Connectivity

RS-485 serial connection

Wireless Connection Distance

Approx. 100m (line-of-sight)(*2)

Battery Operating Time

Lamp unit: 6-12 hours (will vary depending on the lamp brightness and usage environment)

Battery Charging Time

Lamp unit:Approx. 2 hours

Number of Lamps Supported

16 units(*4)

*1: To connect with your video switchers, you need to set up using dedicated software provided by Cerevo or a specifically configured cable for GPIO connection. The cable should be created based on the tally output specifications of the video switcher you are using and the FlexTally’s tally input specifications. Specifications of the tally output may be different for each brand and switcher model. Supported OS for the dedicated software is Windows 10/8.1/7, Mac OS X is scheduled to be supported in the future.

*2: Actual distance varies depending on the environment.

*3: Specification for the US/EU product version. The version for Japan uses the 315MHz band for connectivity.

*4: Up to 32 lamps will be supported in a future firmware update. 8 lamps can be controlled when connected via GPIO connection with your switchers.

FlexTally compatible switchers are;
