Ultra-Clear 4K Imaging with Flexible FOV
Flexibly adjust the field of view ( FOV) to fit y our situation. Equipped with a dual FOV function, the AVer VB130 ensures viewers always focus on the right spot and lets you experience versatile, 4K imaging in focus rooms or huddle rooms.
Always Appear Energetic via Intelligent Lighting
Look energetic and professional onscreen no matter where you are. AVer’s VB130 automatically adjusts lighting levels during virtual meetings in dim rooms*, and it also offers full-range color temperature (2700–5700 K) to fit any environment. Show your best side via AVer Intelligent Lighting.
*For best lighting results, sit within 1 meter away from the camera.
Uninterrupted Collaboration with AVer’s Audio Fence
Make sure you have an uninterrupted video meeting experience with the VB130’ s audio shield. AVer noise-blocking technology provides an adjustable audio fence that lets you silence any sound outside the viewing angle. Maintain focus on the meeting at hand to take advantage of every business opportunity.
Exceptional Audio Quality via Beamforming Technology
Everyone is a key participant in meetings with the Aver VB130. A beamforming five-microphone array precisely picks up and reproduces resonant voices from anywhere in the room. It's your time to shine—with a little help from exceptional audio quality.
Efficient and Safe Meetings with Less Touching
Enjoy less touching and increase efficiency with the latest AI-triggered viewing-angle adjustment. The camera’s audio tracking function automatically focuses on the person speaking. Plus, an Audio Preset Tracking Mode identifies and follows the human voice to track based on preset areas. Stay efficient and safe with the AVer VB130!

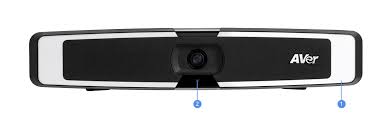

Hardware Spec
- 1Fill light
- 2Color sensor
Specifications
-
- Camera
-
- 4K optics lens, 120° FOV, up to 4X zoom
- Sony 4K sensor: ultra-crystal-clear image in any lighting
- Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- Adjustable audio fence: freedom to define your meeting area
- Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*
- SmartFrame: automatic FOV adjustment (auto focus) to fit all participants
- SmartSpeaker: Voice triggered tracking people or specific preset areas.
- True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
- Mirror, flip, AE, white balance: auto/manual override via PTZApp2
- Minimum focus distance: 60 cm
- People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
- 10 camera presets (through remote control and IP web page)
-
- Audio
-
- Beamforming microphone array: 5 microphones, 4-meter pickup range
- Echo cancellation and background noise suppression
- Supports an expansion microphone
- 6W speaker with a professional bass port tuned for communication
- 180Hz–20kHz speaker frequency response
- Output volume: 94dB SPL +/-2dB at 0.5 meters
-
- Connectivity
-
- 12V/2A power adapter
- Mini-B for expansion microphone connection
- USB Type-B 3.1 connector, backward compatible with USB 2.0
- RJ45 port for Ethernet
- USB 2.0 Type-A for wireless connection*
-
- Video Format
-
- YUV, YUY2, MJPEG
- Network video compression format: H.264
- Network protocols: RTSP, RTMP*
-
- USB
-
- 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB video), UAC 1.0 (USB audio)
-
- Control
-
- IR remote control
- WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
- UVC/UVA plug-and-play
- PTZApp 2
-
- Mount
-
- Screen mount kit
- Camera wall-mount bracket
-
- Optional Accessories
-
- Wall mount and mounting screws
- Screen mount kit
- BT Dongle
- 10m/20m expansion microphone
- 10m/20m/30m USB 3.1 extension cable
- USB 3.1 GEN1 Type-B to Type-A cable, 3 m
-
- Warranty
-
- Camera: 3 years
- Accessories: 1 year
-
- System Requirement
-
- Windows® 7/10
- MacOS X 10.7 or later
- Google Chromebook™ version 29.0.1547.70
-
- Hardware Specs
-
- 3.2 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0
-
- Power Supply
-
- AC 100V–240V, 50/60 Hz
- Consumption: 12V/2A
-
- Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers) - EZManager 2: Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
- View live video, people counting number, meeting interval information
- Enable Skype for Business far-end control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
- Free Applications for Meeting Collaboration
-
- Environmental Data
-
- Operation temperature: 0 ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20 ~ 60°C
- Storage humidity: 20% ~ 80%
-
- Dimensions
-
- Package dimensions: 406(L)x146(W)x189(H) mm
- Package weight: 2.358 kg
- Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
- Remote control: 149.72 x 42.3 x 19.29 mm/50g
-
- Package Contents
-
- VB130 unit
- Power cable 10 ft (3 m)
- USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
- QR code card
- Screen mount or wall mount*
- Remote control
- Tripod screw
-
- Compatible Applications
-
- Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
*For 4K UHD support, please check system/hardware requirements with your software application provider.
* Specifications may vary depending on countries and are subject to change without notice.
