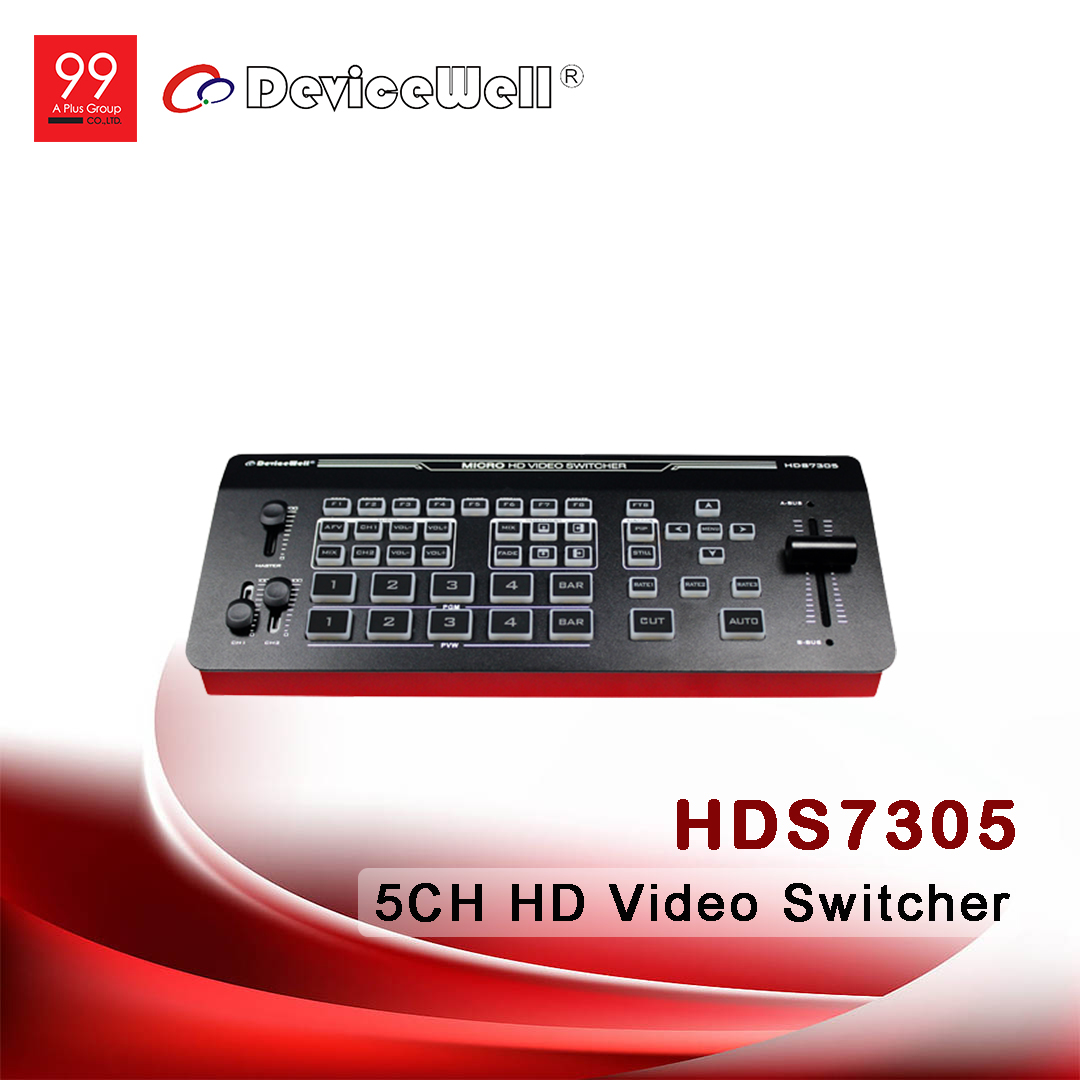

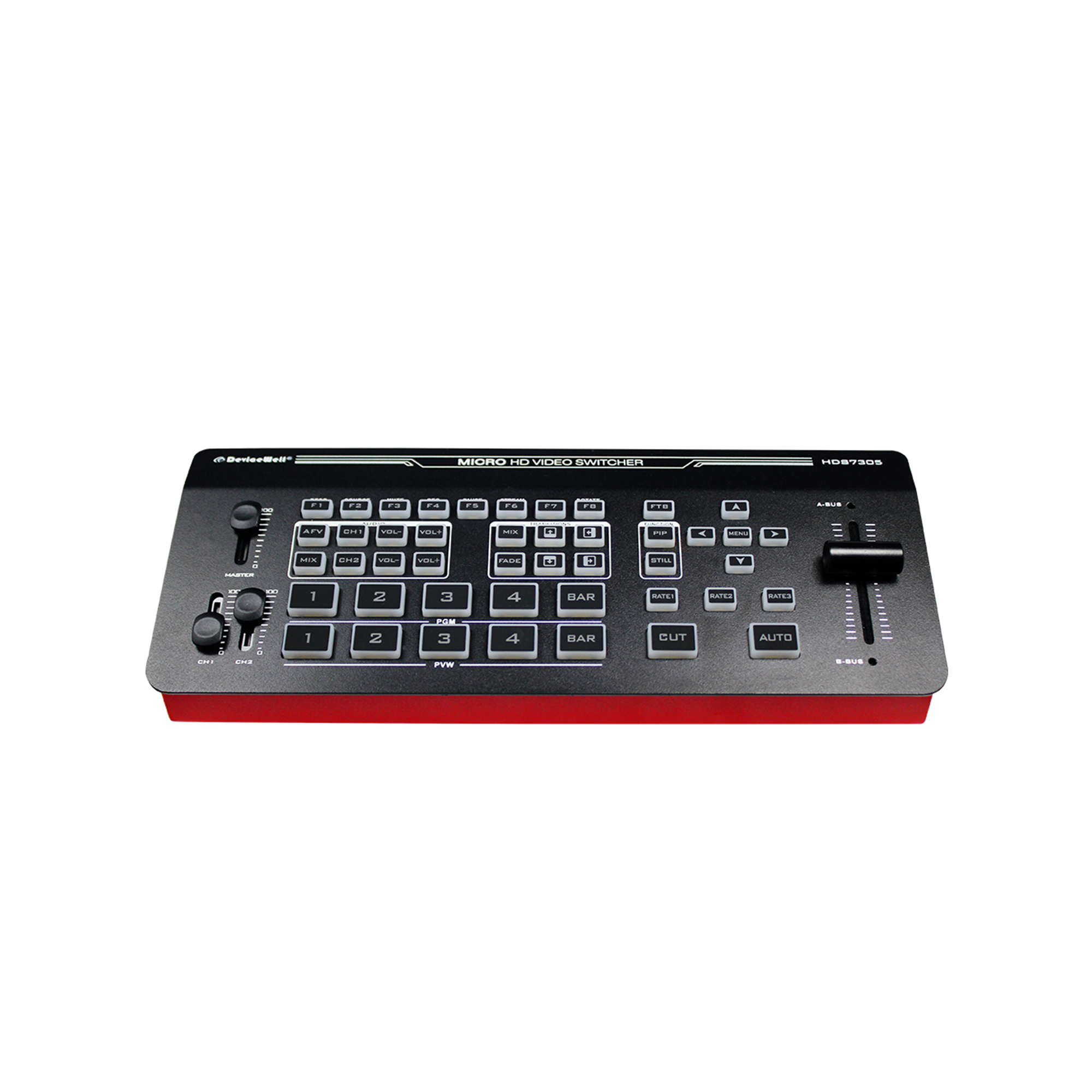

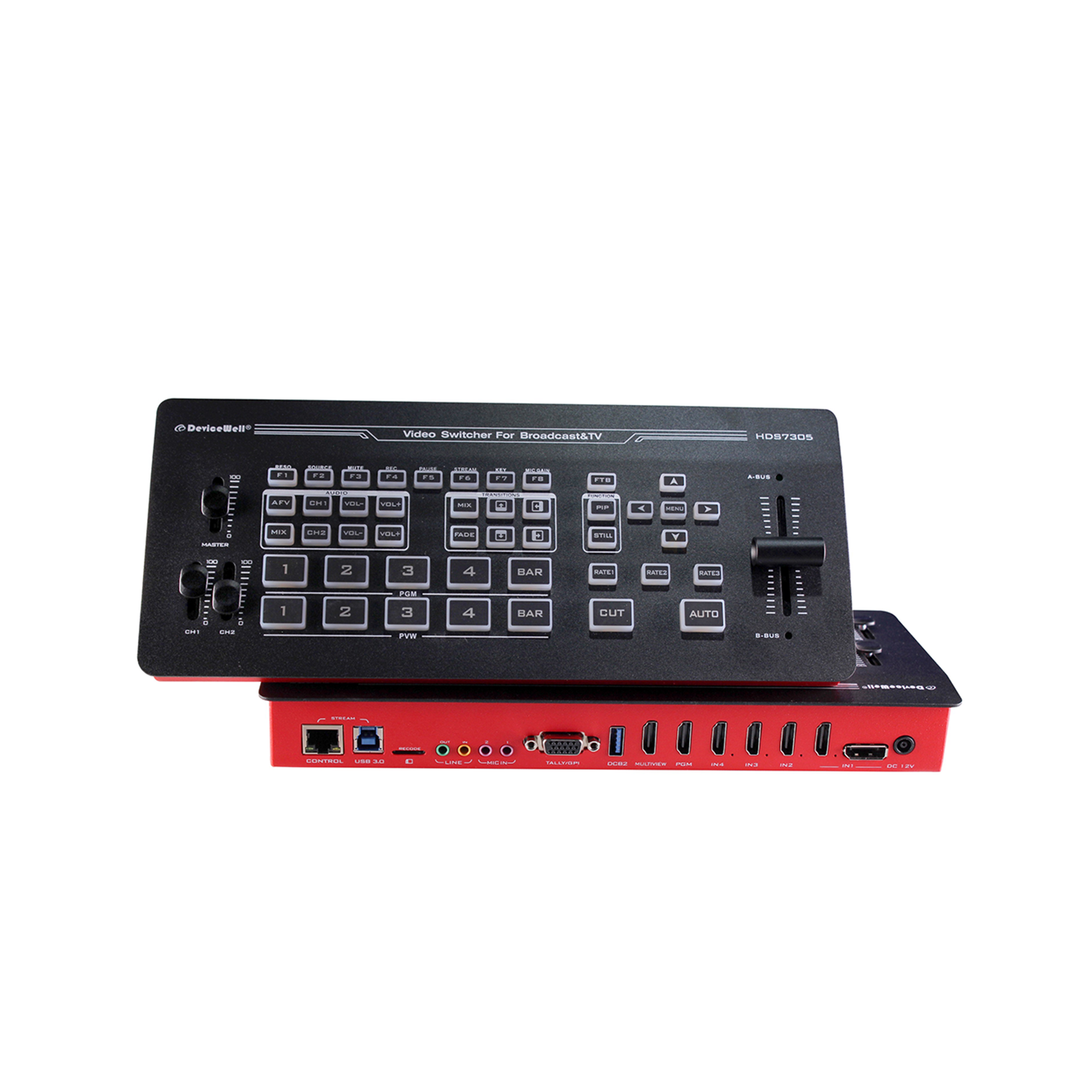

Devivewell HDS7305 5CH HD Video Switcher
*** โมเดลใหม่มีการตัดพอร์ต Type C ออก โดยเปลี่ยนเป็นสตรีมผ่านช่อง USB 3.0

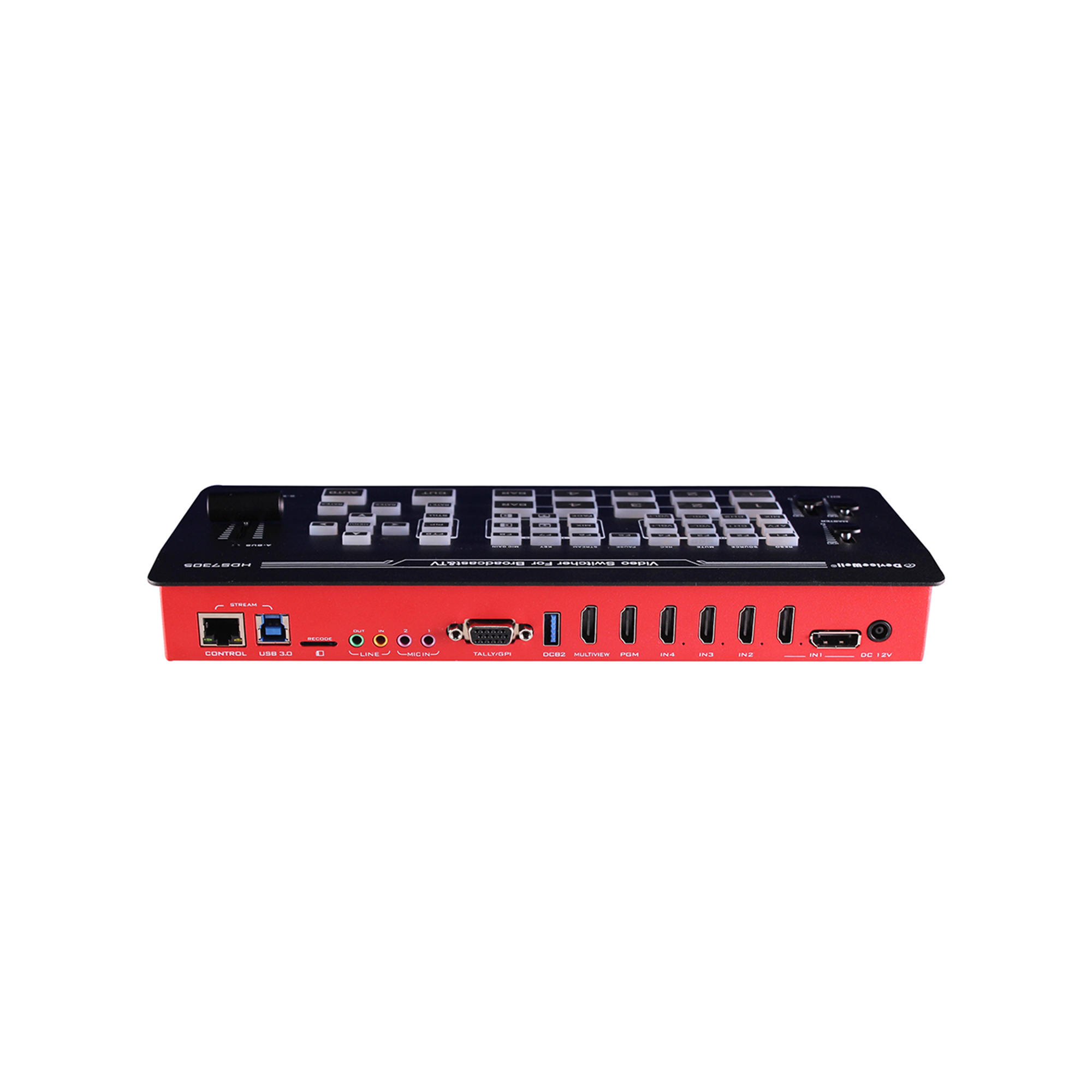

HDS7305 supports 4 HDMI + 1 DP signal input, a total of 5 input video signals. It can output 1 HDMI external multiview signal synchronously. HDS7305 5-channel switcher supports HDMI embedded audio + external analog audio, which can be embedded in the output HDMI signal after mixing. It can also be output from the analog port. HDS7305 5-channel director switcher supports audio follow and audio assignment mode optional. The resolution of all input signals is automatically adapted, and the output signal resolution can be
selected as required, and the operation is quite flexible.

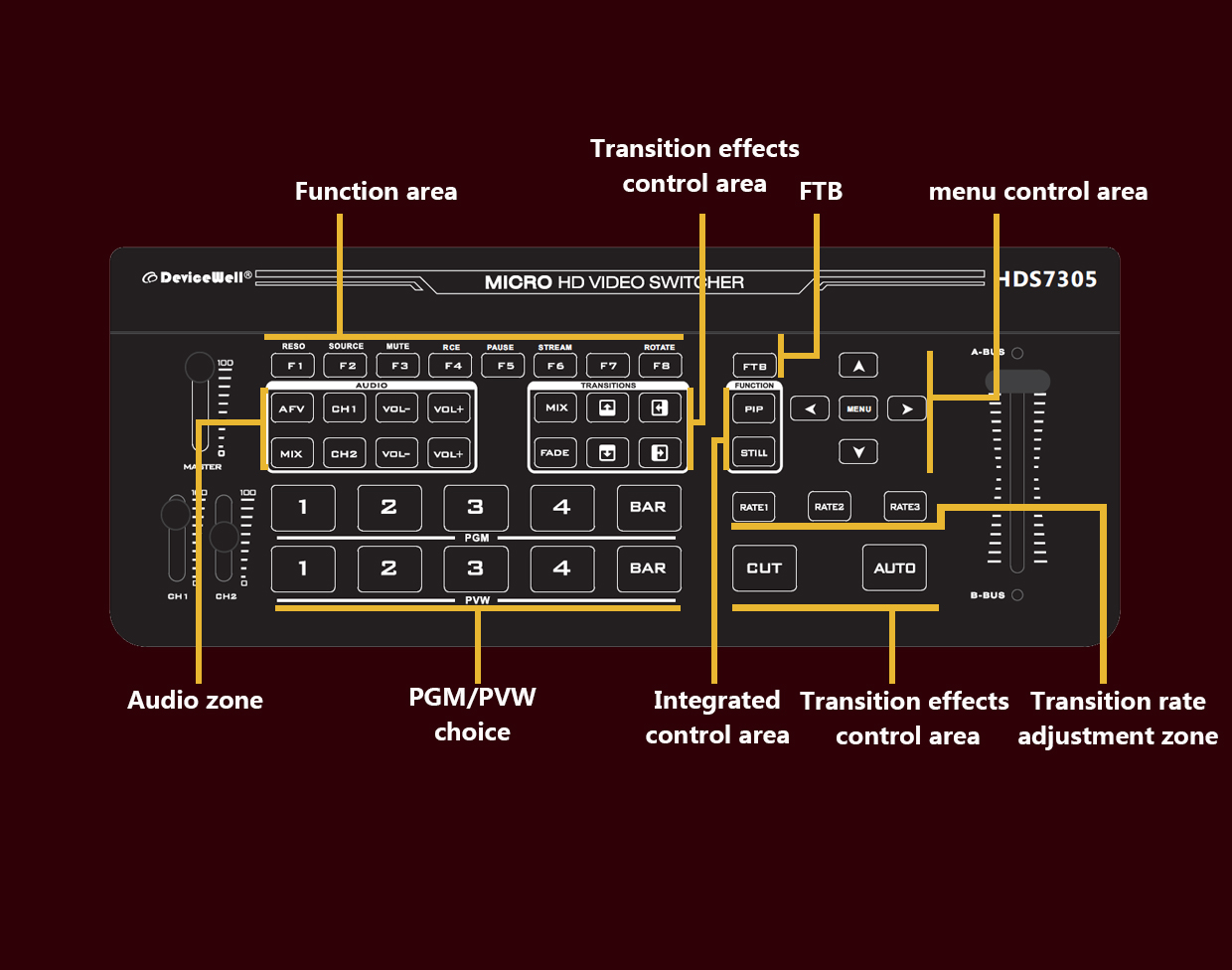

1. F1-F8 correspond to different functions:
you can use the buttons in this area to set the resolution, channel switching, one-key mute, recording, streaming and other functions (for details, please refer to the manual settings).
2. Audio setting area:
Use this partition button to set audio follow and audio assignment functions, and use the volume to adjust the sound level of each channel
3. Transition effects control:
Three modes of transition are supported: MIX mixed transition effects, FADE fade-in and fade-out transition effects, up to 4 groups of wipe transition methods, HDS7305 5-channel webcast switcher has a total of 6 groups of transition effects.
4. Adjustable transition rate:
When the HDS7305 5-channel switcher is controlling the transition, the transition rate can be controlled through the RATE button. Three rates are adjustable (640MS, 1280MS, 2560MS), with special effects transition effects, adding more possibilities for video creation.
5. Support PIP picture-in-picture special effects mode:
HDS7305 5-channel switcher can select the PIP picture-in-picture mode in the PGM screen, and the user can select the horizontal position, vertical level, display size, border switch, border width, border color, etc. of the PVW preview screen to be displayed on demand Later, it will be superimposed on the PGM screen and broadcast. This feature is very important when displaying product close-up effects in live streaming.
6. Support STILL screen freeze effects:
The user can set this "STILL" function and use this special effect to freeze the screen and freeze the screen in a single screen.
7. T-bar transition effects:
Added T-bar transition, you can use the T-bar fader to switch the video screen, one stroke to the end, the transition is more convenient
8. Audio fader:
HDS7305 director switcher adds 3 audio faders, you can use the audio faders to adjust the audio sound, and you can also choose to use the buttons to adjust the volume, (the adjustment mode can choose one of 2)
