Specs
-
- PTZ Camera
-
- Image sensor: 1/2.8" 60fps low lux CMOS sensor, 2 mega pixels
- Output resolution: auto, 1080P/60, 1080P/50, 1080i/60, 1080i/50, 1080P/30, 720P/60
- Optical zoom: 30X, Digital zoom: 12X
- Lens focal length: f=4.3mm (wide) ~ 129mm (tele)
- Iris: f=1.6 (wide) ~ 4.7 (tele)
- View of angle: DFOV=76° (wide) ~ 3° (tele)
- Minimum illumination: IRE50 0.47 lux (60fps); 0.23 lux (30fps)
- Preset number: 10 locations by remote (256 via RS232)
- Minimum working distance: 1.2 meter at tele-end (30X); 0.1 meter at wide-end (1X)
- White balance: auto/manual (2500 ~ 10000)
- Gain: auto/manual
- Electronic shutter: 1/5 s to 1/32000 s
- BLC (back light compensation): off/on
- Exposure: auto/shutter priority/iris priority/manual
- Noise reduction: off/low/medium/high
- Frequency: auto/50Hz/60Hz
- S/N ratio: >50db
- Horizontal resolution: Center : 800 TV Lines; Corner : 600 TV Lines
-
- Pan Tilt Parameter
-
- Pan rotation: -175° (left) + 175° (right)
- Tilt rotation: -30° (down) + 90° (up)
- Pan control speed: 2°~ 50°/sec
- Tilt control speed: 2°~ 50°/sec
- Preset speed: pan 160°/sec; tilt 160°/sec
-
- Panoramic Camera (Full View)
-
- Image sensor: 1/2.8" 60fps low lux CMOS sensor with WDR
- Effective picture elements: 2MP
- Output resolution: auto, 1080p/60, 1080p/30, 720p/60
- Lens focal length: 2.12mm
- White balance: auto
- Exposure: auto
- FOV: DFOV=120°, HFOV=110°, VFOV=74.5°
-
- Interface / Streaming / Protocol
-

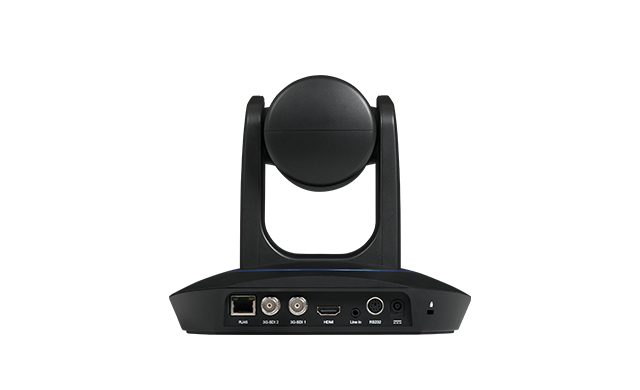

- 3G-SDI*2, HDMI*1, IP (RJ45)
- Video output capability: up to 1080P@60fps
- Remote control: RS232(via optional DB9 to DIN6 adapter)
- Baud rate: 115200/9600/4800/2400 bps
- Network interface: 10/100/1000 base-T, support Wake-on-LAN
- Network video compress format: H.264
- Network protocol: RTSP, RTMP, ONVIF
- IP video streaming: dual video streaming (PTZ and panoramic view)
- Control protocol: VISCA/Pelco-D/Pelco-P
- Power: DC12V, power jacket
-
- System
-
- Remote IR: IR sensor
- Audio: PCM, AAC-LC, G.711
- LED: power (blue-open, red-close)
- Security: Kensington slot
- Infrared remote: receiver on front of camera
- Power adapter: AC110V-AC220V to DC12V/5A
- Consumption: 24 W (Max)
- Operating temperature: 0℃ ~ +40℃
- Operation humidity: 20% ~ 80%
- Storage temperature: -20℃ ~ +60℃
- Storage humidity: 20% ~ 95%
- Dimensions: L=201.09mm, W=210mm, H=176mm
- Weight: 1.75kg
- Accessory: remote control, 12V/5A power adapter, DIN6 adapter, user manual
-
- AcuControl
-
- Free download on App Store
- Supported devices and platform
- iPad (iOS v8)
- System requirements for iPad
- iPad mini 2, iPad mini 3, iPad Air, iPad Air 2
- Chipset: Apple A7 or higher
- Switch camera working mode and define camera presets
- Set tracking and shielded zone
- Adjust the output format and tracking sensitivity
- Diagnose operating status
- Features
- 1/2.8" high quality low lux CMOS sensor
- PTZ camera with 30X total zoom
- 1080p/60fps high definition signal output
- Built-in panoramic camera and tracking camera for integrated fusion
- Accurate algorithms with smooth and precise tracking
- High speed of tracking rotation: 120°/sec
- Support ONVIF, RTSP protocols
-
- WebUI
-
- Browser IP access (Chrome, Firefox, IE, etc.)
-
- Warranty*
-
- Camera: 3+2 year
- Accessories: 1-year
*Please register online to receive free 2 year warranty extension. For detailed warranty information, please contact an AVer representative.
**For best quality, please check with your software application provider for system/hardware requirements.
