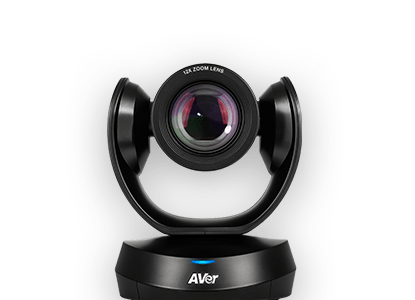

Aver CAM520 Pro2

Professional conferencing camera for mid-to-large rooms

The CAM520 Pro2 is an industry-leading conferencing camera. Its 24X total zoom, upgraded AVer SmartFrame, Preset Framing, Sony True WDR, IP video streaming, and a PoE port take your video conferencing experience to the next level!

•

  Full HD 1080p

•

  24X total Zoom

•

  Auto Framing

•

  Enterprise-Grade Imaging




  Specifications



  • Camera

    • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
    • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
    • SmartFrame for automatic FOV adjustment to fit all participants
    • Innovative Preset Framing: Follow presenter based on preset areas
    • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
    • Zoom: 24X total zoom (12X optical zoom)
    • Field of view(D/H/V):84.5°/76°/48°
    • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
    • Lens F#: 1.8 (wide) ~ 2.8 (tele)
    • Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
    • Minimum focus distance: 1.5 m
    • Standard tripod screw holes and Kensington slot
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage



  • Motorized Pan & Tilt Movement

    • Pan: ±170°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan/tilt movement

  • Video Format

    • YUV, YUY2, MJPEG, NV12
    • Network video compression format: H.264
    • Network protocol: RTSP, RTMP



  • Connectivity

    • 12V/2A power adaptor
    • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
    • USB 3.1 type-B connector
    • IP (RJ45)

  • USB

    • 3.1 Gen1 Type B, backward compatible with USB 2.0
    • UVC (USB video class) 1.1



  • Control

    • IR remote control
    • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
    • Remote side: VISCA over IP, IP (RJ45)
    • UVC/UAC plug and play
    • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
    • PTZApp 2

  • Package Contents

    • CAM520 Pro2 unit
    • Remote control
    • 5m, USB2.0 type-B to type-A cable
    • Power adapter (10 ft/3 m)
    • QR code card
    • Wall-mount bracket
    • ¼" tripod screw
    • Mini DIN9 to mini DIN8 RS232 adapter



  • Optional Accessories

    • Mini DIN8 to D-SUB9 RS232 adapter
    • Foldable TV mount
    • Ceiling mount
    • USB3.1 fiber extender 10m/20m/30m
    • USB3.1, 3m type-B to type-A cable

  • Mount

    • Camera wall-mount bracket included
    • Optional foldable TV mount
    • Optional ceiling mount



  • System Requirements

    • Windows® 7/10
    • Windows® 10 Enterprise (IoT) LTSC (version 1809)
    • Mac OS X 10.7 or higher
    • Google Chromebook™ version 29.0.1547.70

  • Hardware Specs*

    • 3.2 GHz Intel® Core™ i5-4460 processor
    • 4 GB RAM or more
    • USB 3.1 port , backward compatible with USB2.0 port



  • Web page browser requirement

    • Chrome: version 76.x or above
    • Firefox: version 69 or above
    • IE: Not support

  • Power Supply

    • AC 100V ~ 240V, 50/60 Hz
    • Consumption: 12V, 2A
    • PoE+: 802.3at



  • Free Applications for Meeting Collaboration (Windows® and MAC)

    EZManager 2 : Camera Central Management software

    • Remotely manage group FW/SW updates, camera control, and settings

    PTZApp 2

    • Support Virtual Streaming function.*
    • Compatible with Skype for business far-end control
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video

    EZLive

    • Real-time streaming / annotating / image capturing / video recording


    *Only available in Windows PC. Doesn't support in MAC PC.

  • Environmental Data

    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%



  • Dimensions

    • Package dimensions: 256 x 256 x 274 mm
    • Package weight: 3.335 kg/7.35 lbs
    • Camera: 182 x 142.7 x 153 mm/1.47 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg

  • Warranty

    • Camera: 3 years
    • Accessories: 1 year



  • Compatible Applications

    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

    ** Specifications may vary depending on countries and are subject to change without notice.



  * Specifications may vary depending on countries and are subject to change without notice.
