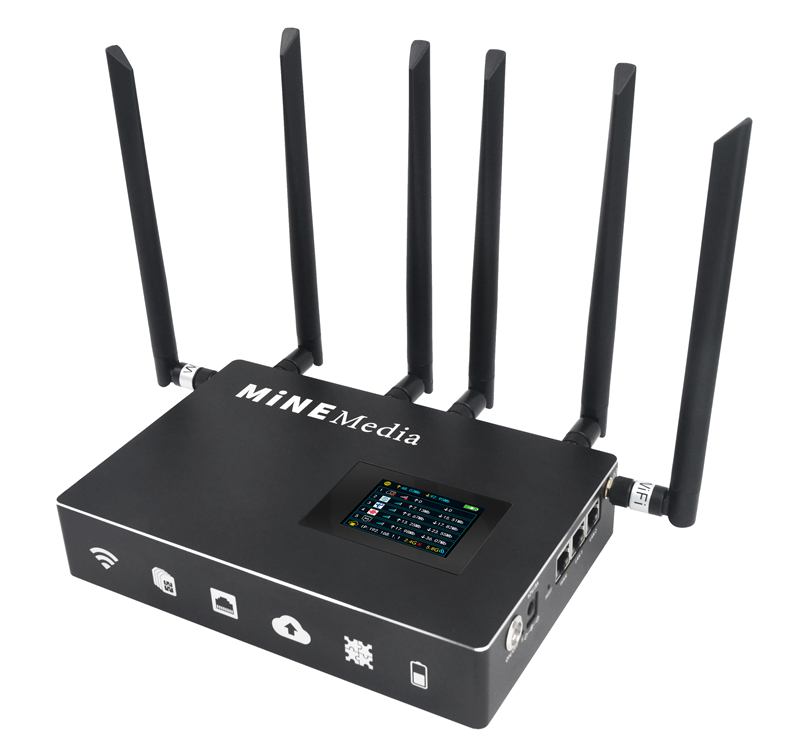

M4 Mini 4G Bonding Router

M4 Mini 4G Bonding Router
หมวดหมู่ MiNE Media
ราคา 48,000.00 บาท
สถานะสินค้า พร้อมส่ง
ลงสินค้า 18 ม.ค. 2565
อัพเดทล่าสุด 20 ม.ค. 2565
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
จำหน่าย M4 Mini 4G Bonding Router

M4 Mini is designed to aggregate 4 Sim, 1 Ethernet to create a single rebust pipeline for delivering video/data. The combination of several network connections allows broadcasters to reinforce their video by sending traffic over multiple routes, repacking at the destination with rock-solid dependability.

It only works as bonding router and cannot be used as a standard encoder. It does have the advantage of being light, and convenient for carry, and also no need cables when outdoor live broadcasting.

You can connect up to 4 sim cards and Ethernet max, which allow you to transmit video or data via bonding server with Linux Debian Above 9.0 OS. Bonding server can be built yourself or rent from Ali could/ Amazon server.

A built-in LCD display shows you the network of each sim speed status, Ethernet speed status if connected; in the top of the screen also shows you total upload and download speed. The unit power supply is AC 12V, 3A, after full charge, it can work 5-6 hours outdoor.



Features

  • Network Bonding: 4 SIM & 1 Ethernet

  • Network Provided: WiFi

  • Outdoor Work Duration: 5-6 Hours

  • Support Self-built Server: Linux Debain 9.0 OS Required

M4 Mini Connection


Tech Specs


Power 12V 5W
Model Mine M4-Mini
Function Multiple 3G 4G SIM card Bonding Router
Cellular network mode TDD-LTE,FDD-LTE,DC-HSPA+/HSPA+/HSPA/UMTS,TD-SCDMA
Port 4x PCI-E(3G/4G),3x RJ45,4x SIM Card
LAN 10/100 Mbps
WAN 10/100 Mbps
WIFI 802.11b/g/n 300Mbps
WIFI Frequency 2.4GHz,5.8GHz
LED Display LED Display to Indicate cellular speed
Battery Capacity 9000 MAhm
Working Duration 5 - 6 Hrs
Network protocol TCP/IP
Management Web
Net Weight 2Kg
