Blackmagic Universal Videohub 288

Connections

SDI Video Input  :  Up to 288 x SDI/HD-SDI, 3G-SD I and ASI. Can be BNC SDI or optical fiber SDI.
SDI Video Output  : Up to 288 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.
Reference Signal :  1 x Black Burst or Tri-level Sync input for all SD, HD and Optical connections.
Multi Rate Support  : Auto detection of SD, HD or 3G-SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
Updates   :  USB 2.0 high speed (480Mb/s) interface.
Device Control  :  Up to 288 bidirectional Sony™ compatible RS-422 deck control ports via breakout cable.
Router Control   :  Use either RJ45 Ethernet, Smart Control or Master Control shared over IP network.
Router Configuration  :  RJ45 Ethernet for Videohub configuration and USB 2.0 for IP settings only.
ASI Support   :  Yes.
RS-422 Router Control  :  1 x input for controlling router crosspoint switching.
Reclocking  :  On all SDI outputs.

Standards

SD Format Support : 525i29.97 NTSC, 625i25 PAL
HD Format Support : 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 ,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 , 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 , 1080i50, 1080i59.94, 1080i60

2K Format Support : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates : SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD-SDI and 3G-SDI HD and 2K SDI.

SDI Video Sampling : 4:2:2 and 4:4:4.

SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision : 4:2:2 and 4:4:4 10 bit.

SDI Color Space : YUV or RGB.

SDI Auto Switching : Automatically selects between SD-SDI, HD-SDI, 3G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support : Video payload identification ancillary data as per SMPTE 352M.

SoftwareInternal Software Upgrade : Via included firmware updater application.

Software Control : Router control included free for Windows™ and Mac™.

Operating Systems

Mac 10.10 Yosemite,
Mac 10.11 El Capitan or later.

Windows 8.1 and 10.

Power RequirementsPower Supply : Redundant power supply options are available. GPI connector for connecting external alarms.

Power Fail Protection : Router connections preserved and restored instantly at power on independently of host computer.

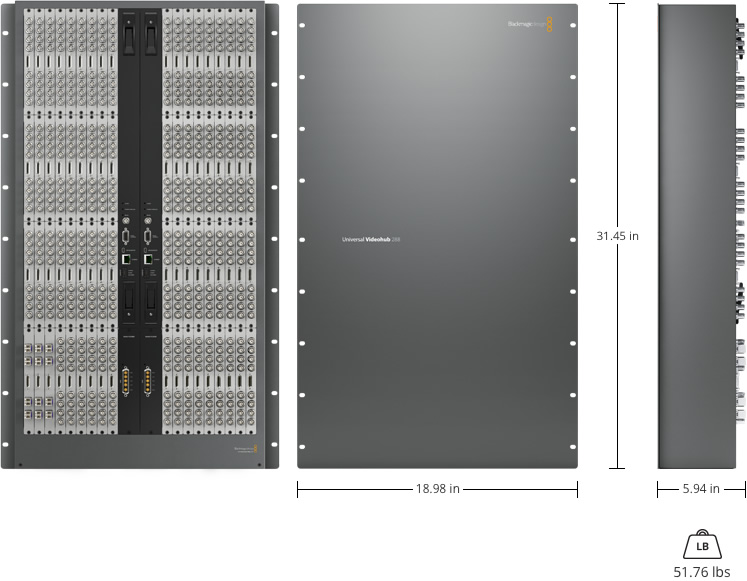

Physical Specifications

Physical Installation : 18 rack unit size. Less than 6 inches deep.

Environmental Specifications

What's Included : Universal Videohub 288Welcome wallet with QR code for software download

Warranty : 3 Year Limited Manufacturer's Warranty.
