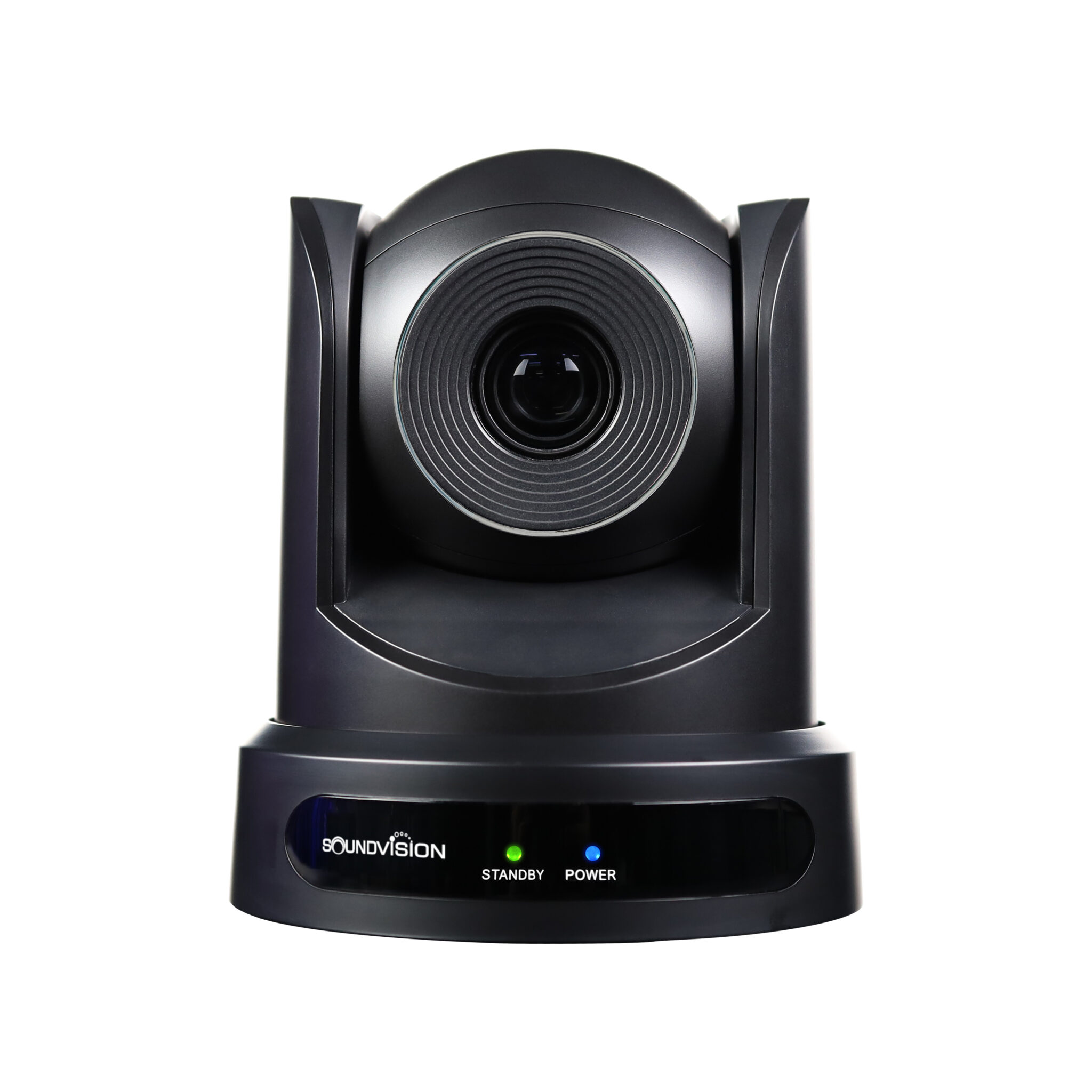

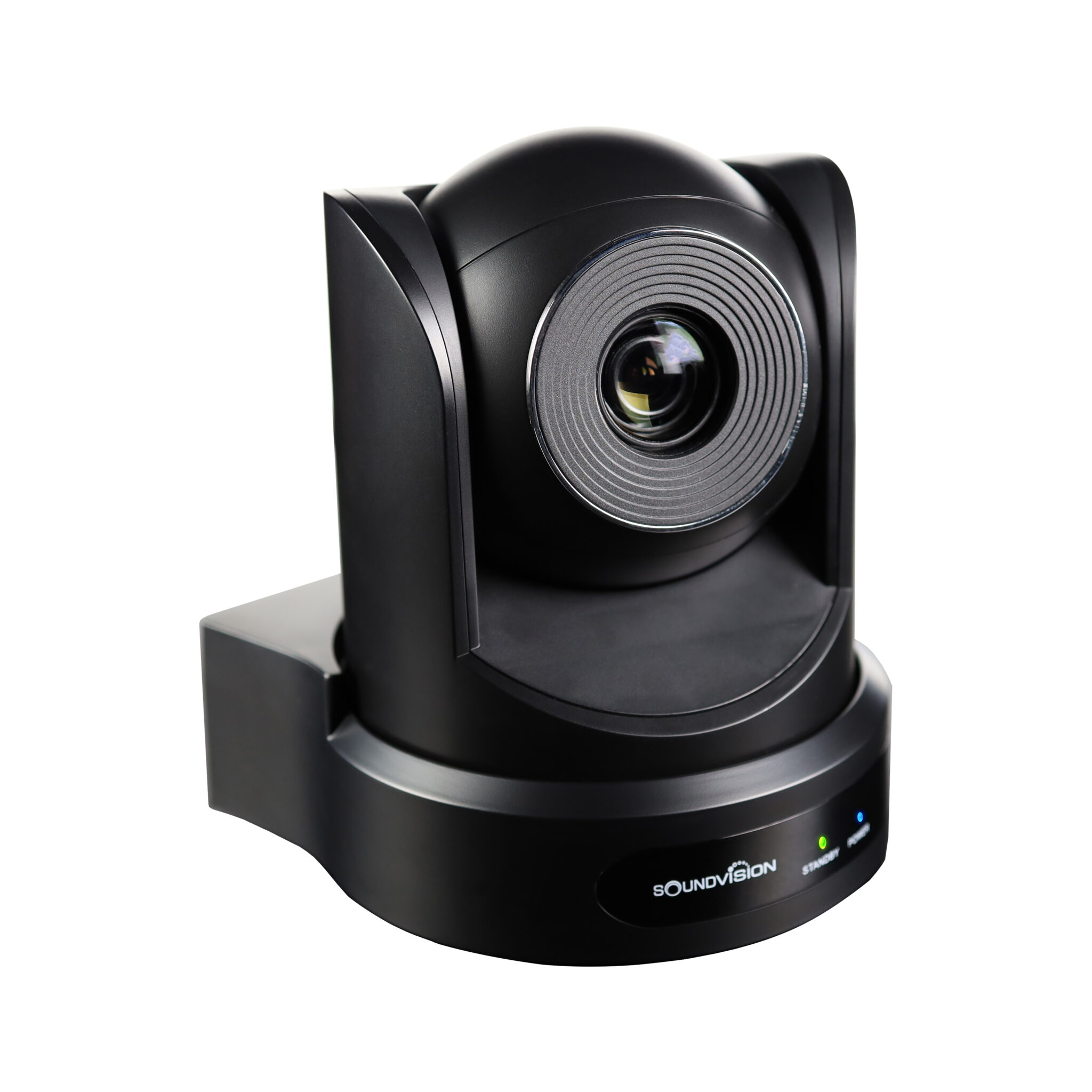

SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.
Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other

VERIFICATION OF COMPLIANCE :![]()
![]()
FEATURE
| Camera | ||
| Video System | 1080P, 720P, 540P, 480P, 360P, 240P etc. according to di rent resolution for di erent color space/compression modes. | |
| Sensor | 1/2.7”, CMOS, Effective Pixel: 2.07M | |
| Scanning Mode | Progressive | |
| Lens | 10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8 | |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K _1, 6500K _2, 6500K _3, One Push, Manual | |
| Backlight Compensation | Support | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Video S/N | ≥ 55dB | |
| Horizontal Angle of View | 58.5° ~ 6.5° | |
| Vertical Angle of View | 35.1° ~ 3.6° | |
| Horizontal Rotation Range | ±170° | |
| Vertical Rotation Range | -30° ~ +90° | |
| Pan Speed Range | 2.7° ~ 47°/s | |
| Tilt Speed Range | 3.4° ~ 30°/s | |
| H & V Flip | Support | |
| Image Freeze | Support | |
| Number of Preset | 255 | |
| Preset Accuracy | 0.1° | |
| USB Feature | ||
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | |
| Color System / Compression | YUY2 / MJPEG / H.264 | |
| Video Format | H.264 AVC: max to 1080P@30fps MJPEG: max to 1080P@30fps | |
| USB Video Communication Protocol | UVC 1.1 | |
| UVC PTZ | Support | |

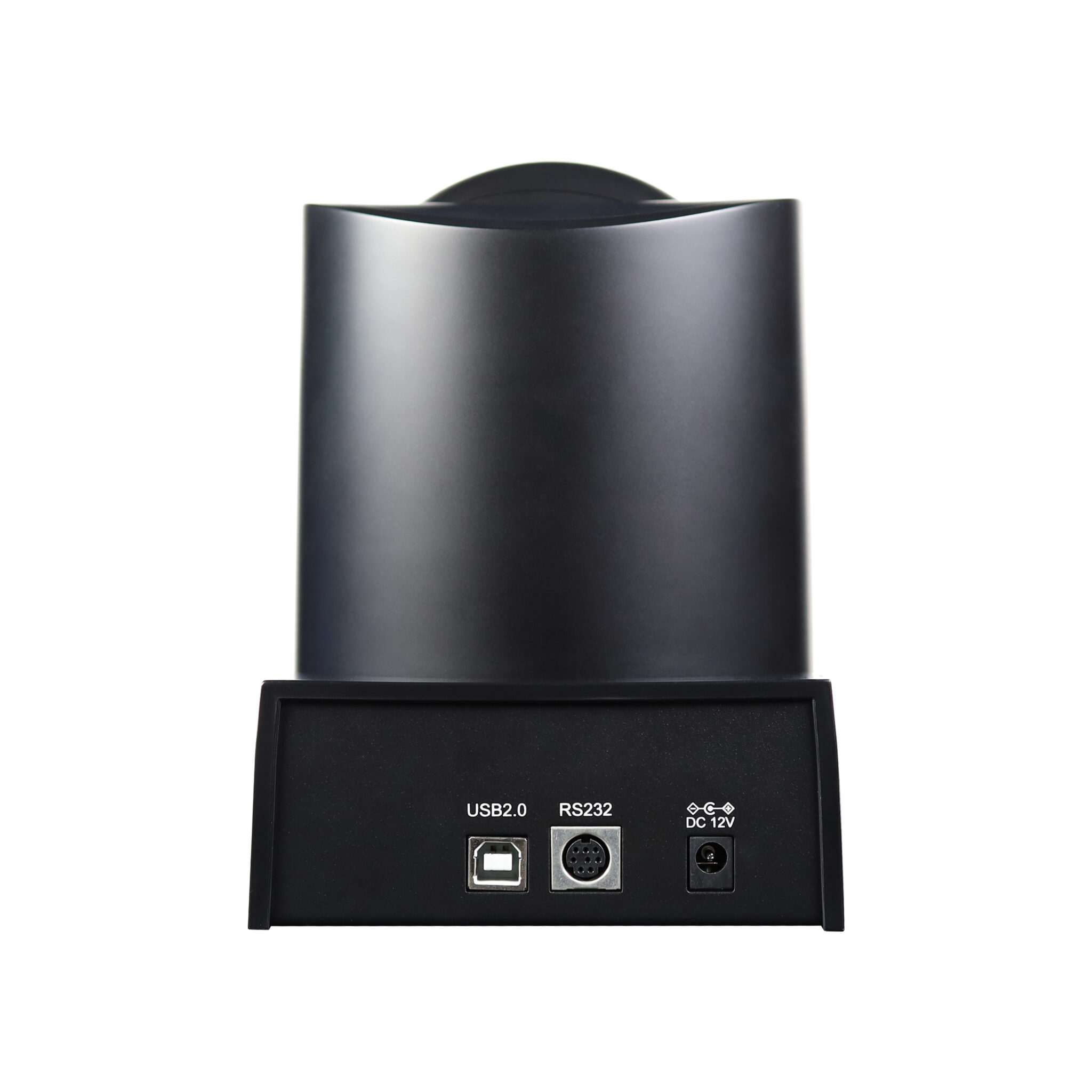

| Input / Output Interface | ||
| USB Interface | 1 x USB2.0: Type B female jack | |
| Communication Interface | 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V) / USB B type (DC IN 5V) | |
| General | ||
| Input Voltage | DC 12V | |
| Current Consumption | 0.5A( Max) | |
| Operating Temperature | -10 ~ 40°C | |
| Storage Temperature | -40 ~ 60°C | |
| Power Consumption | 6W( Max) | |
| MTBF | >30000h | |
| Dimensions (W x D x H) | 141.3 * 153 * 163.6 mm | |
| Net Weight | 1.153Kg | |
