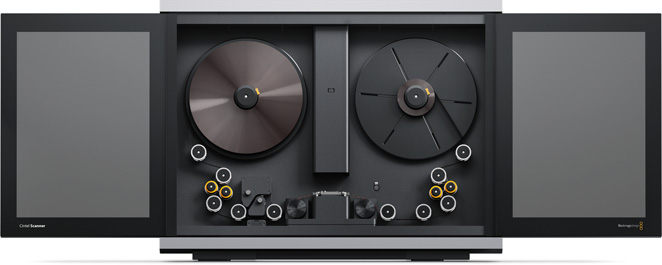

Cintel Scanner G3 HDR+

Film Stocks

Print, Negative, Interpositive, Internegative.

Mono and Color.

Film Gauges

35mm (2, 3, 4 perforations),

Super 35mm (2, 3, 4 perforations).

16mm, Super 16mm

Native Resolution

4096 x 3072

Effective Resolutions

3840 x 2880 - Super 35

3390 x 2465 - Standard 35

3390 x 2865 - Anamorphic 35

1903 x 1143 - Super 16

1581 x 1154 - Standard 16

HDMI Formats

3840 x 2160 Ultra HD

1920 x 1080 HD

(auto selected to match monitor resolution)

Dynamic Range

Normal Scans: 12 stops

HDR Scans: up to 3.5 additional stops

Audio

Extraction from scanned image.

Transport Type

Rubber Capstan.

Dirt and Scratch Reduction

Diffuse light source. Cleaning rollers.

Mounting Options

Desk Mount. Wall Mount.

Continuous Motion

Run speed:

1 - 30 fps

Shuttle:

1 - 100 fps (35mm)

1 - 200 fps (16mm)

Acceleration

5 - 30 fps/s

Film Shrinkage Tolerance

Up to 2% guaranteed, more may be possible if user care is taken.

Capacity

2000 ft (35mm)

HDMI Video Output

1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.

Computer Interface

Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V.

PCI Express 4 lane generation 2.

Bi-phase/Timecode Output

XLR3 Bi-phase: 4.5 Volt DC coupled.

Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps.

Analog Audio Inputs

2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels.

AES/EBU Audio Input

1 Channel with sample rate converter on XLR connector.

Options Interface

XLR6

Voltage Range

100 - 240V AC.

Power

200W

Operating Temperature

18 to 28°C (64.4º to 82.4º F).

Relative Humidity

Maximum 65% non-condensing.
