เลนส์ Zeiss 18mm/T3.6 CP.2 Compact Prime Cine Lens with EF Mount
จำหน่าย เลนส์ Zeiss 18mm/T3.6 CP.2 Compact Prime Cine Lens with EF Mount
PRODUCT HIGHLIGHTS
- Covers ANSI Super 35 & Normal 35 Format
- Covers APS-C and APS-H Digital Sensors
- 14 Iris Blades
- T* Coating
- Internal Light Traps
- Precision Geared Manual Focus and Iris
- Focus Rotation - 300°
- Calibrated Lens Scales
- Rugged Cine Style Housing

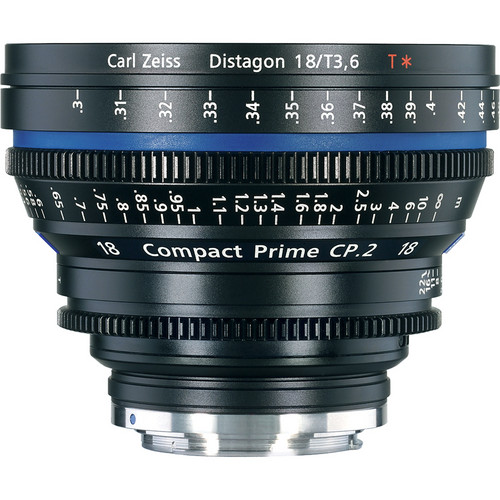

The Zeiss 18mm/T3.6 CP.2 Compact Prime Cine Lens with EF Mount is an 18mm fixed focal length lens with a flexible design compatible with separately available interchangeable mounts for PL, EF, F, E and MFT mounts, allowing you to use the cine lens with movie cameras and HDSLR cameras. The lens covers the ANSI Super 35 and Normal 35 image formats, and is suitable for HDSLRs with APS-C and APS-H format sensors.
Featuring 14 high-precision blades, which create a consistently round and symmetrical iris opening over the entire T-stop range, the lens ensures uniform out-of-focus highlights and a smooth bokeh. T* Anti-reflex coating and internal light traps help suppress disturbing flares. The Compact Prime Cine Lens features a unique lens design that helps provide enhanced contrast, resolution and color rendition, and reduces distortion. Markings for distance are given in feet.
18 mm fixed focal length
Flexible design - allows it to be used on both cinema and DSLR cameras
Interchangeable mount for PL, EF, F, E and MFT mounts allows the cine lens to be used with movie cameras and HDSLR cameras
- Covers ANSI Super 35 and Normal 35 image format
- Suitable for HDSLRs with APS-C and APS-H format sensors
- 14 high-precision blades create a consistently round and symmetrical iris opening over the entire T-stop range, for enhanced out-of-focus highlights and a smooth bokeh
- T* Anti-reflex coating and internal light traps help suppress disturbing flares
- Unique lens design helps provide enhanced contrast, resolution and color rendition, and reduces distortion
- Maximum aperture - T3.6
- Sweet spot effect with APS-C sensors
- Calibrated lens scales
- Standard focus and iris gear positions
- Stable exposure due to manual operated aperture
- 300° focus rotation
- Manual focus
- Evenly illuminated field
- Consistent front diameter from lens to lens
- Rugged cine style housing
- Compatible with standard rig
- EF mount
- Markings for distance are given in feet
SPECIFICATIONS
Focal Length |
18mm |
Lens Mount |
Canon EF |
Format |
Not specified by manufacturer |
Image Circle |
Not specified by manufacturer |
Maximum T-Stop |
T3.6 |
Minimum T-Stop |
T22 |
Horizontal Angle of View |
MFT: 51.3° Super 35: 69.3° |
Minimum Focus Distance from Image Plane |
12" / 31 cm |
Elements/Groups |
Not specified by manufacturer |
Iris Blades |
Not specified by manufacturer |
Front Diameter |
114 mm |
Filter Thread |
Not specified by manufacturer |
Focus Scales |
Not specified by manufacturer |
Electronic Communication |
Not specified by manufacturer |
Tripod Mounting Thread |
Not specified by manufacturer |
Dimensions (W x H) |
Not specified by manufacturer |
Length |
3.15" / 80 mm |
Weight |
2.0 lbs / 0.9 kg |
