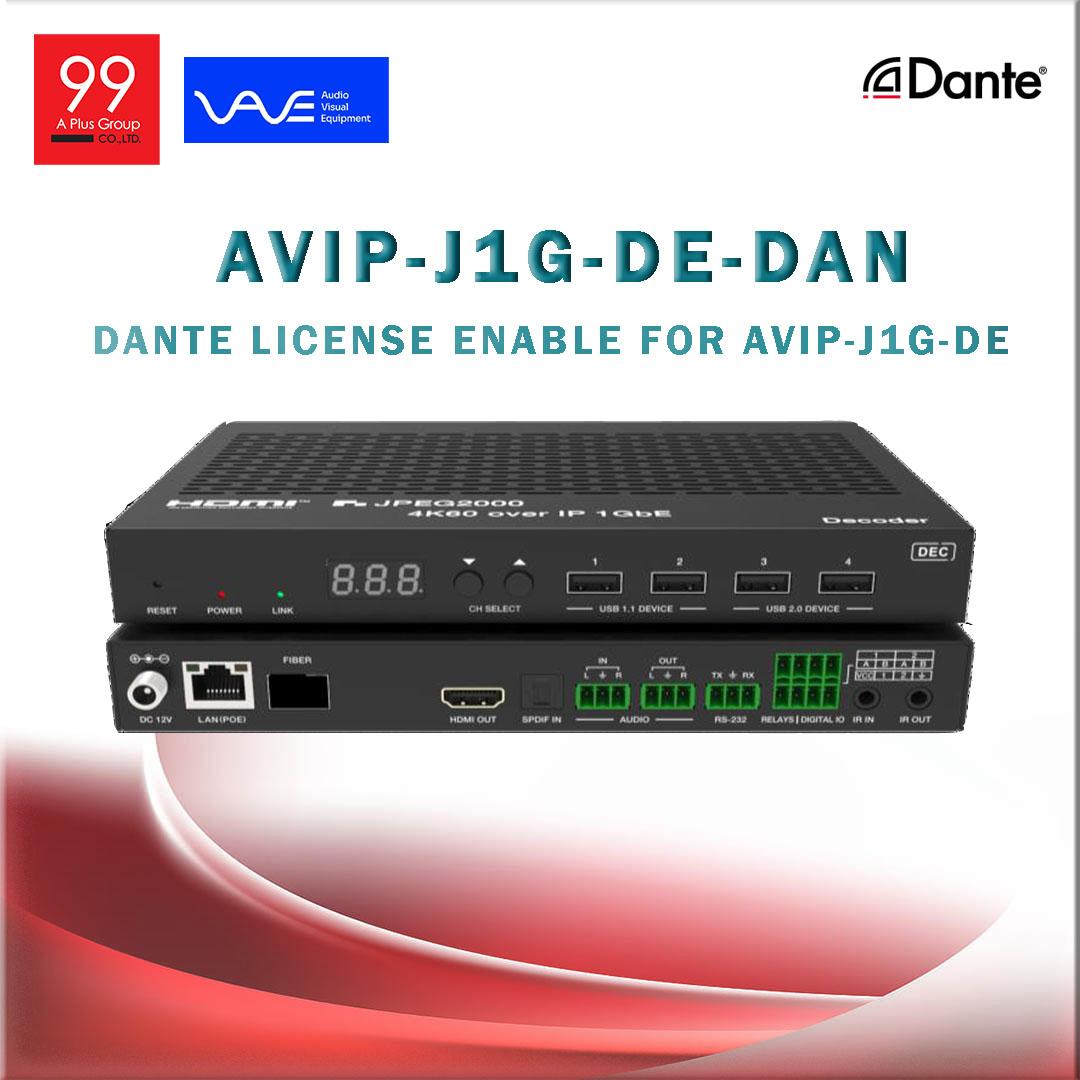

Vave-AVIP-J1G-DE-DAN
FEATURE:
- HDMI 2.0b, HDCP 2.2 compliant
- Support 18 Gbps video bandwidth
- Input and output video resolution is up to 4K60 4:4:4
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7
cable
- Transmit video, analog/digital audio, IR, RS-232, CEC and USB over Ethernet
- Integrate Copper port and Fiber port within a single box
- ARC/eARC/SPDIF/Analog audio return function
- Channel configuration via front panel buttons and LED screen
- Built-in two channel RELAY ports and two channel 1/0 ports for contact control
- Support unicast and multicast functions

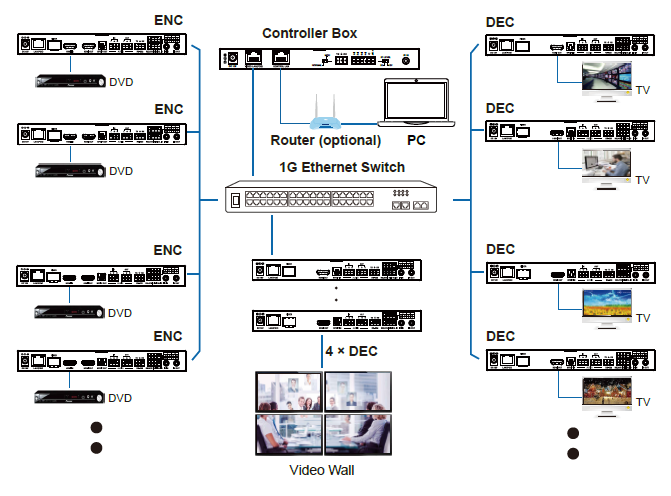

- Support point-to-point, video matrix and video wall functions
(video wall supports up to 9x9)
- Intelligent video wall class management
- Support MJPEG Sub-stream real-time preview
- 1G Ethernet Switch
- Support POE function
- Built-in web page configuration and control, Telnet and SSH as well
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Smart networking design for easy and flexible installation
- DANTE License built in
