ROLAND XS-62S HD VIDEO SWITCHER
| หมวดหมู่ | Switcher Roland |
| ราคา | 128,000.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 28 พ.ย. 2560 |
| อัพเดทล่าสุด | 22 ต.ค. 2562 |
| จำนวน | ชิ้น |
หยิบลงตะกร้า
Tags : จำหน่าย ROLAND, XS-62S, HD RACKMOUNT, Video Switcher, roland xs62, roland xs-62s, roland 62S HD, Roland rackmount, 625 HD, "XS-62S Roland HD Video Switcher", "Roland XS-62S ขาย", "Roland XS-62S ราคา", "จำหน่าย XS62S HD Video Switcher"
รายละเอียดสินค้า
จำหน่าย ROLAND XS-62S HD RACKMOUNT VIDEO SWITCHER ราคา 128,000 บาท
ROLAND XS-62S HD VIDEO SWITCHER
ROLAND XS-62S HD VIDEO SWITCHER

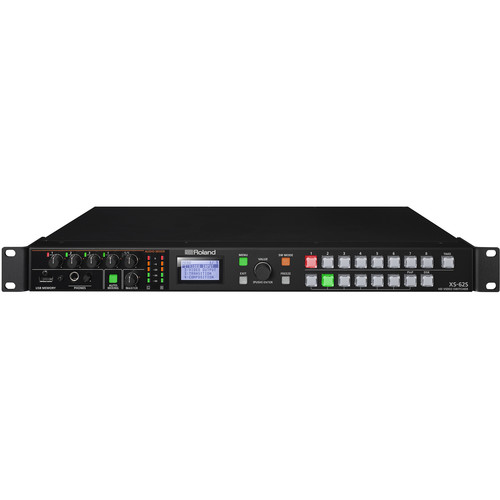

The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).
The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S’s audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.
*In order to do Live streaming with the XS-62S, will need to add an encoder device with an SDI or HDMI input, from a 3rd. party supplier.
VIDEO
The XS-62S video switcher can seamlessly switch 6 inputs including 3G-SDI, HDMI and RGB sources along with 2 still images stored in internal memory. Three video switching modes can be selected, allowing a wide range of applications from the XS-62S.
1---4 SDI Inputs (with de-interlacer)
2---2 HDMI Inputs (scaled)
3---RGB/COMPONENT/COMPOSITE input (Scaled) - Shared with HDMI input 6
4---2 SDI Outputs ‒ Assignable to PGM, PVW, AUX
5---2 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
6---1 HDMI Output (scaled / Multi-view) – Multi-view or Scalerd output
7---TALLY/GPIO
8---RS-232 ‒ Remote control
9---RS-422 ‒ PTZ Control (VISCA)
10---LAN ‒ Remote control and Smart Tally (PTZ Control (VISCA) * coming Q2 2018)
Professional user interface
The professional broadcast quality crosspoint buttons are back lit with brightness control for use in bright daylight or dark performance spaces. A dedicated menu screen and volume knobs for adjusting audio are both easy to access from the front panel . The XS-62S is designed for direct control and intuitive operation for any events.
Switching mode
The XS - 62S has multiple switching modes to best suit the app
PGM / PST mode
PGM/PST Mode operates as a traditional video switcher complete with video compositions that enable grouping multiple images on one screen.
You can create compotitions by combining DSK for layering titles and graphics as well PinP inset of video. Compositions can be previewed before sending to Program on the Preview output and can be sent to Program by pressing the TAKE button.
PGM / PST Mode also has an available AUX bus making it possible to output different video from the PGM bus and PST bus to an additional destination screen.
DISSOLVE mode
Video switching and composition with cross dissolve to the PGM bus are possible in Dissolve Mode. Disolve Mode is easily operated from the front panel and is suitable for a system where the user directly operates the main unit in a meeting space or event.
The AUX bus is also available in Dissolve Mode, making it possible to output different video from the PGM bus and PST bus.
* PST bus output is the same as PGM bus output.
MATRIX mode
Individual video input signals can be output to three different destinations on three buses. This mode is effective for routing signals and is ideal for events and using multiple screens. Switching the video is with black flame.
Video composition
In addition to traditional Square or Rectangle shapes, the PinP function can select Circle, Heart or Diamond shapes. With the DSK function, you can overlay titles, lyrics, logos etc on top of composited video.
Both luminance key (black / white) and chroma key (blue / green) fucntions are available.
AUDIO
The XS-62S features a 18-channel audio mixer which includes four TRS jacks, RCA stereo Pair, plus audio de-embed from the six video inputs.
Audio Mixer with preamp and dynamics (compressor)
The XS-62S powerful preamp and dynamics effects include a high-pass filter, gate, compressor, 3-band EQ, delay and ability to select audio follows video channel so audio passes through when a specific video source is selected. Dynamics can be adjusted from the onscreen menu or accessed through the powerful Remote-Control Software for Windows or Mac.
Auto mixing
The included Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across all audio sources. A priority weighting assignment that is channel specific can be set giving the moderator or priority audio channel a higher volume level while using the Auto-Mixing function allowing the operator to focus on video switching and production.
Discrete Multi-channel Audio Embedding
Assign up to eight analog audio inputs a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems post live event. This feature is additionally useful for multi-language events to record the voice-over or language translation on its own audio channel its own audio channel to a separate master.
SMART TALLY
Roland's unique and proprietary wireless tally system uses a wireless LAN router connected to the XS-62S to send tally information iOS or Android devices on the network.
PTZ CONTROL
Achieve multiple camera angles for fixed installations by controlling up to six PTZ cameras using VISCA protocol. Save and recall seven position settings for each camera.
REMOTE CONTROL
An easy-to-use software application XS-62S RCS for Mac or PC provides setup and control information for the Roland XS-62S through a network port. Copy, store and recall memory (backup) and preset settings.
The XS-62S is equipped with an RS-232 and LAN port for control and operation remotely from a touch panel or other programmable interface device.
SPECIFICATIONS
SPECIFICATIONS
VIDEO
Video Processing4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors SDI IN 1--4: BNC type x 4
Video Processing4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
RGB/COMPONENT/COMPOSITE IN 6: HD DB-15 type x 1
* Select either HDMI or RGB/COMPONENT or COMPOSITE for the INPUT 6 connector.
* Multi-format Supported Output Connectors
SDI OUT 1--2: BNC type x 2
SDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported Analog Input Level, Impedance
RGB: 0.7Vp-p, 75ohms (H, V:5VTTL)
RGB: 0.7Vp-p, 75ohms (H, V:5VTTL)
COMPONENT: 1.0Vp-p, 75ohms (Bi-level sync/Tri-level sync)
COMPOSITE: 1.0Vp-p (Y), 0.286Vp-p (C: NTSC), 0.3Vp-p (C: PAL), 75ohms
Input formats
SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
Input formats
SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p(SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
HDMI IN 5--6, RGB/COMPONENT/COMPOSITE IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p,
720/59.94p, 720/50p, 1080/59.94i, 1080/50i,
1080/59.94p, 1080/50p,
VGA (640 x 480, 60 Hz), SVGA (800 x 600, 60 Hz), XGA (1024 x 768, 60 Hz),
WXGA (1280 x 800, 60 Hz), SXGA (1280 x 1024, 60 Hz),
FWXGA (1366 x 768, 60 Hz), SXGA+ (1400 x 1050, 60 Hz),
UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Still ImageBitmap File (.bmp)
Still ImageBitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.
Output formats
SDI OUT 1--2: Conforms to SMPTE 296M, 274M
Output formats
SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (System Format = 720p)
1080/59.94i, 1080/50i (System Format = 1080i)
1080/59.94p, 1080/50p (System Format = 1080p)
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
HDMI OUT 3 (MULTI-VIEW): 1080/59.94p, 1080/50p
HDMI OUT 3 (SCALER): 480/59.94p, 576/50p,
720/59.94p, 720/50p, 1080/59.94p, 1080/50p,
SVGA (800 x 600, 60 Hz)(*1), XGA (1024 x 768, 60 Hz)(*1),
WXGA (1280 x 800, 60 Hz)(*1), SXGA (1280 x 1024, 60 Hz)(*1),
FWXGA (1366 x 768, 60 Hz)(*1), SXGA+ (1400 x 1050, 60 Hz)(*1),
UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* Select either MULTI-VIEW or SCALER for the HDMI OUT 3 connector.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
* 1920 x 1200, 60 Hz: Reduced blanking
(*1) Output refresh rate is 75 Hz when frame rate is set to 50Hz.Video Effects
Output Mode: PGM-PST, DISSOLVE, MATRIX
Output Mode: PGM-PST, DISSOLVE, MATRIX
Transition: CUT, MIX (DISSOLVE/FAM/NAM)(*1), WIPE (30 types)(*1)
Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND)(*1), SPLIT (4 types)(*1),
DSK (Luminance Key, Chroma Key)(*1)
DSK (Luminance Key, Chroma Key)(*1)
Other: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
(*1) These effects depend on Output Mode
AUDIO
Audio ProcessingSampling rate: 24 bits/48 kHz
Audio formatsSDI IN: Linear PCM, 24 bits/48 kHz, 2 ch (Conforms to SMPTE 299M)
AUDIO
Audio ProcessingSampling rate: 24 bits/48 kHz
Audio formatsSDI IN: Linear PCM, 24 bits/48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8 ch (Conforms to SMPTE 299M)
HDMI IN, HDMI OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors
SDI IN 1--4: BNC type x 4
Input Connectors
SDI IN 1--4: BNC type x 4
HDMI IN 5--6: HDMI Type A x 2
AUDIO IN 1--4: 1/4-inch TRS phone type
AUDIO IN 5--6: RCA phono type
Output Connectors
SDI OUT 1--2: BNC type x 2
Output Connectors
SDI OUT 1--2: BNC type x 2
HDMI OUT 1--3: HDMI type A x 3
AUDIO OUT: XLR type, RCA phono type
PHONES: Stereo 1/4-inch phone type
Input Level
AUDIO IN 1--4: -60--+4 dBu (Maximum input level: +22 dBu)
Input Level
AUDIO IN 1--4: -60--+4 dBu (Maximum input level: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum input level: +8 dBu)
Input Impedance
AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN: 0--+23 dBu), 5 k ohms (HEAD AMP GAIN: +24--+64 dBu)
Input Impedance
AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN: 0--+23 dBu), 5 k ohms (HEAD AMP GAIN: +24--+64 dBu)
AUDIO IN 5--6: 15 k ohms
Output Level
AUDIO OUT: +4 dBu (XLR type, Maximum input level: +22 dBu),
-10 dBu (RCA phono type, Maximum input level: +8 dBu)
Output Level
AUDIO OUT: +4 dBu (XLR type, Maximum input level: +22 dBu),
-10 dBu (RCA phono type, Maximum input level: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 600 ohms (XLR type), 1 k ohm (RCA phono type)
Output Impedance
AUDIO OUT: 600 ohms (XLR type), 1 k ohm (RCA phono type)
PHONES: 10 ohms
Audio Effects
Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
OTHERS
Other Connectors
USB MEMORY port (for USB flash drive): USB A type
Audio Effects
Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
OTHERS
Other Connectors
USB MEMORY port (for USB flash drive): USB A type
TALLY/GPIO: DB-25 type (Female)
RS-232: DB-9 type (Male, for remote control)
RS-422: DB-9 type (Female, for VISCA control)
CONTROL: RJ45, 100BASE-TX (For remote control)
Other Functions
Preset Memory (8 types)
Other Functions
Preset Memory (8 types)
Panel Lock Function
EDID Emulator
Smart Tally
Remote Camera Control
DisplayGraphic LCD 128 x 64 dots
Power Supply AC Adaptor Current Draw 2.6 A
Power Consumption 31.0 W
Operation Temperature+0 to +40 degrees Celsius
DisplayGraphic LCD 128 x 64 dots
Power Supply AC Adaptor Current Draw 2.6 A
Power Consumption 31.0 W
Operation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions481 (W) x 333 (D) x 44 (H) mm
Dimensions481 (W) x 333 (D) x 44 (H) mm
18-15/16 (W) x 13-1/8 (D) x 1-3/4 (H) inches
Weight (excluding AC adaptor)3.6 kg
Weight (excluding AC adaptor)3.6 kg
7 lbs 15 oz
Accessories
Owner's manual
Accessories
Owner's manual
AC adaptor
Power cord
Rubber Foot x 4
