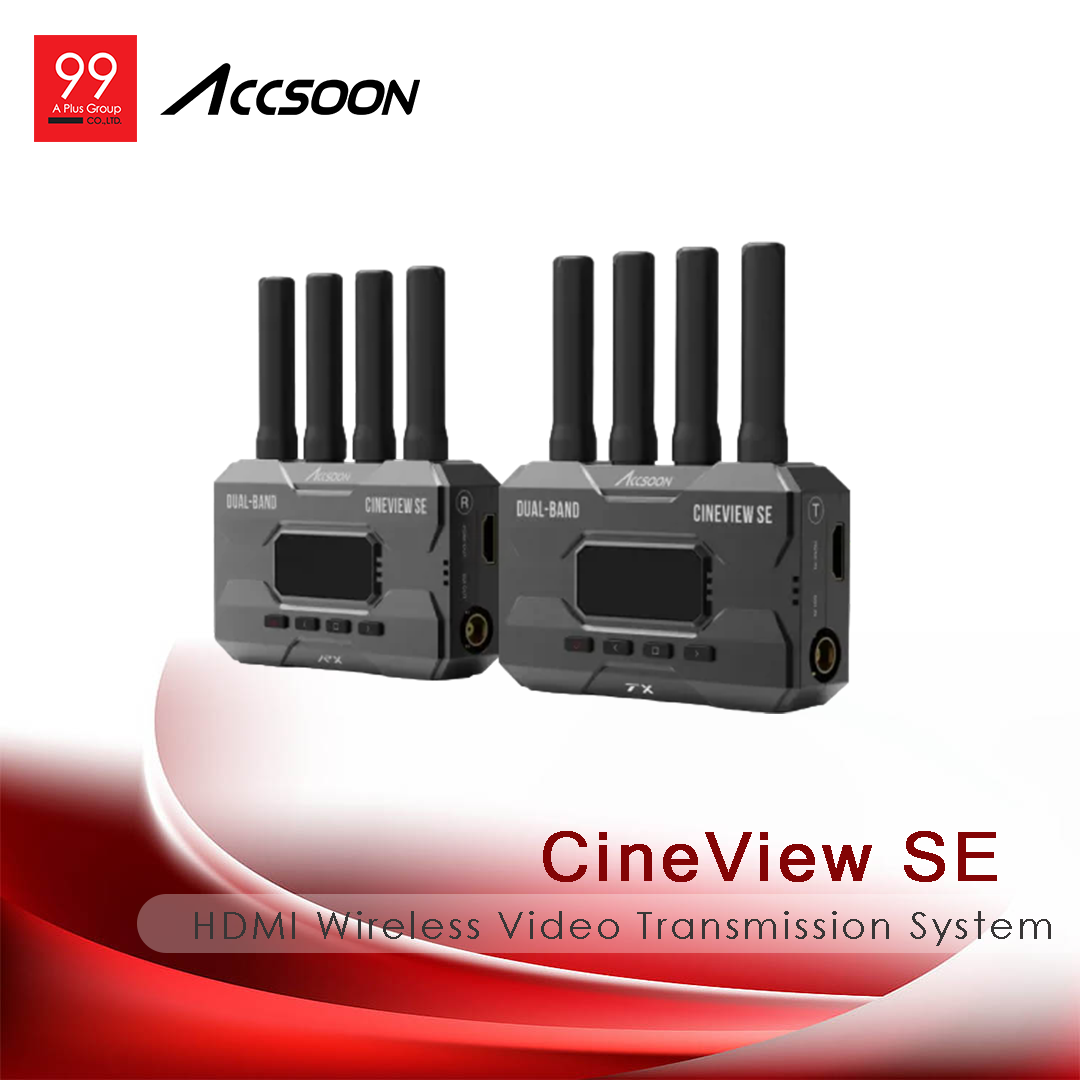

สเปค Accsoon Cineview SE SDI/HDMI Wireless Video Transmission System
| Antenna Ports | Transmitter/Receiver: 4 x RP-SMA |
| Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x Barrel 2.1 mm (16.8 VDC) Input Transmitter/Receiver: 1 x USB-C (5 VDC) Input |
| Encryption | None |
| Wireless | |
| Wireless Range | 365.8 m / 1200′ |
| # of Channels | 20 |
| Frequency Range | 2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
| Latency | < 50 ms |
| RF Power | 17 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Format Support | |
| Video Format | HDMI/SDI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| Audio Format | 2-Channel 24-Bit 48 kHz PCM Audio |
| Timecode Support | No |
| Power | |
| DC Input Power | 7.4 to 16.8 VDC |
| Battery Type | Transmitter/Receiver: 1 x L-Series |
| Power Consumption | Transmitter: 4.5 W (Typical) Receiver: 3.5 W (Typical) |
| Mounting | |
| Mounting | 1 x 1/4″-20 Female |
| Environmental | |
| IP Rating | None |
| Operating Temperature | -10 to 40°C / 14 to 104°F |
| General | |
| Material of Construction | Aluminum |
| Dimensions | Transmitter/Receiver: 10.5 x 6.6 x 3.2 cm / 4.1 x 2.6 x 1.3″ |
| Weight | Transmitter/Receiver: 210 g, / 7.4 oz Including Antenna |
