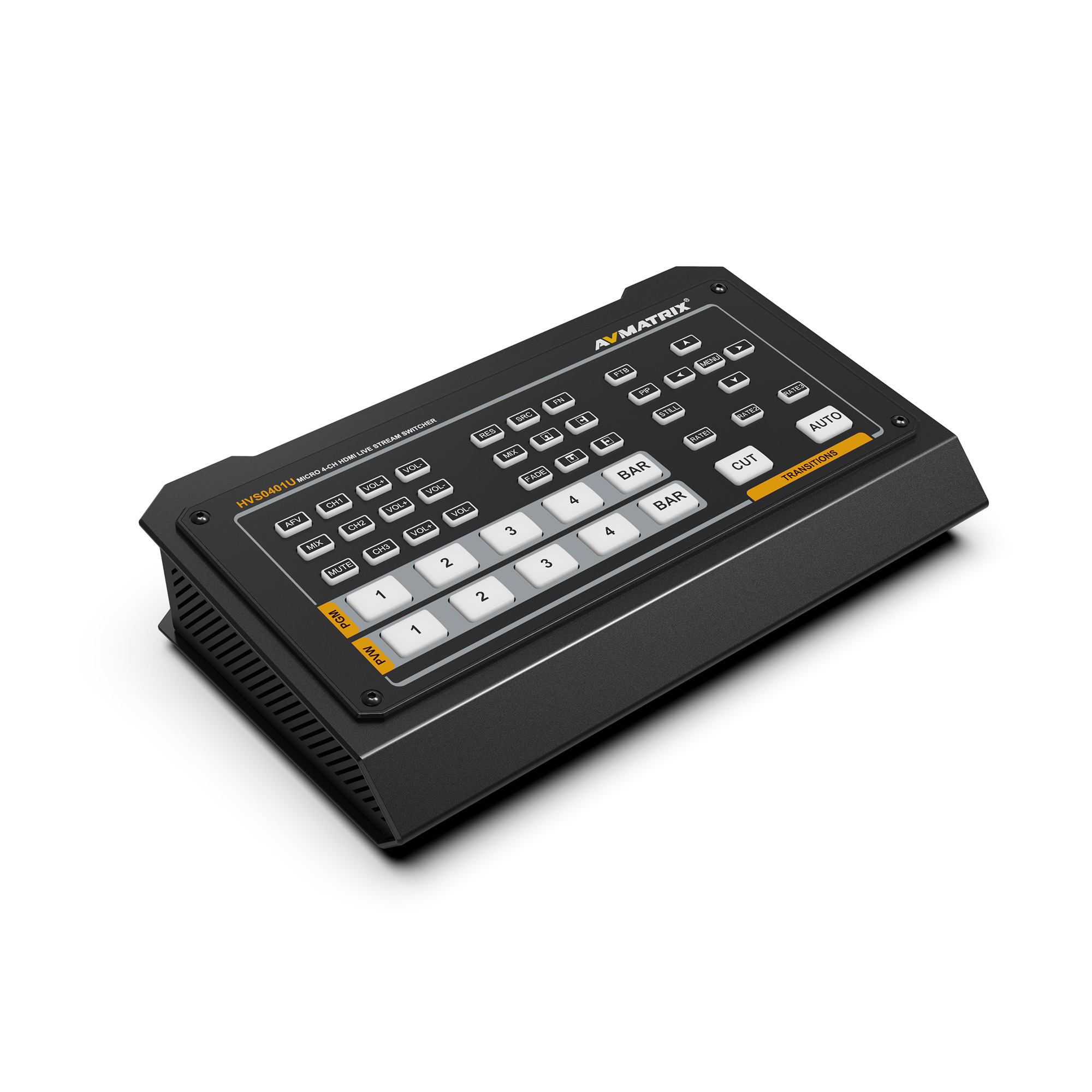

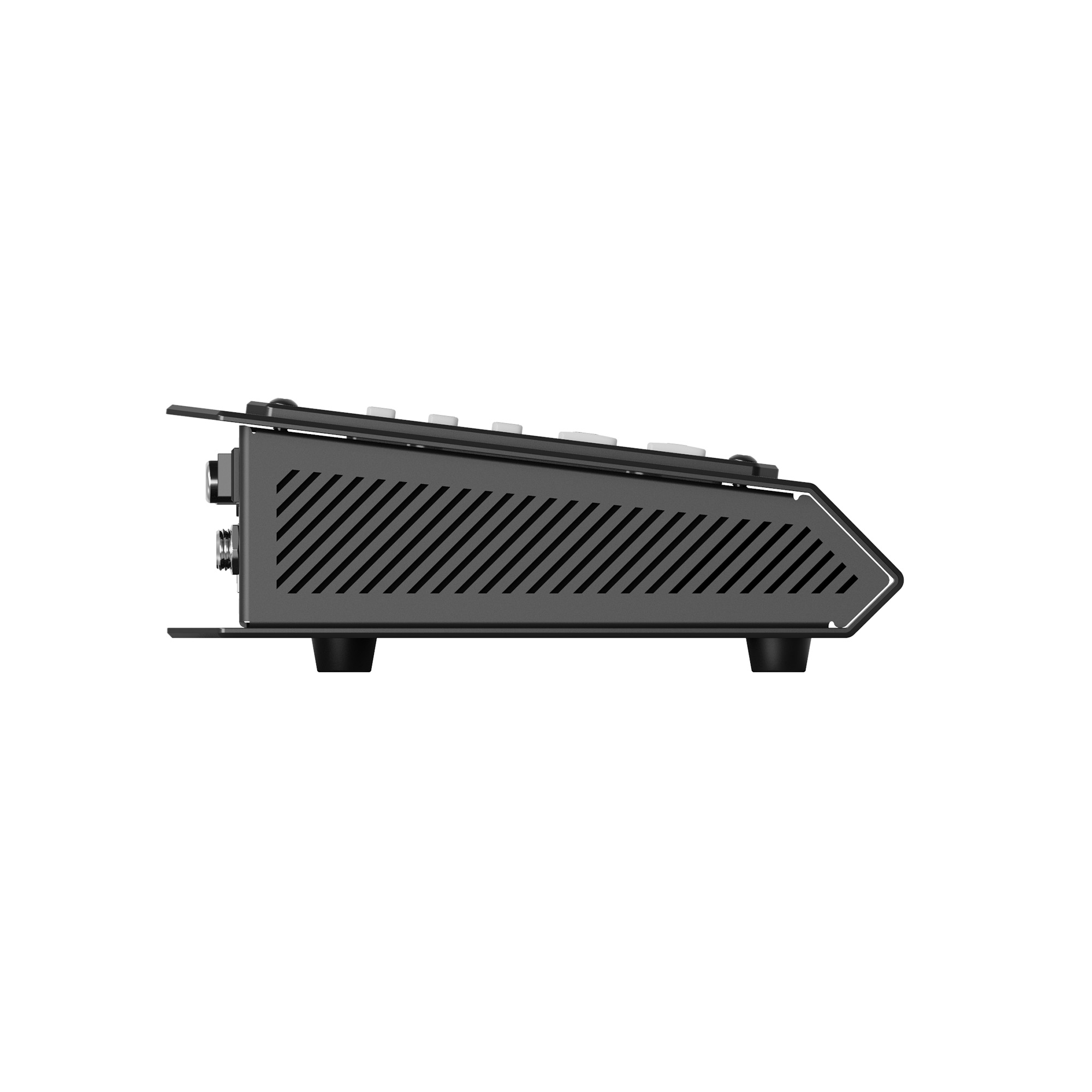

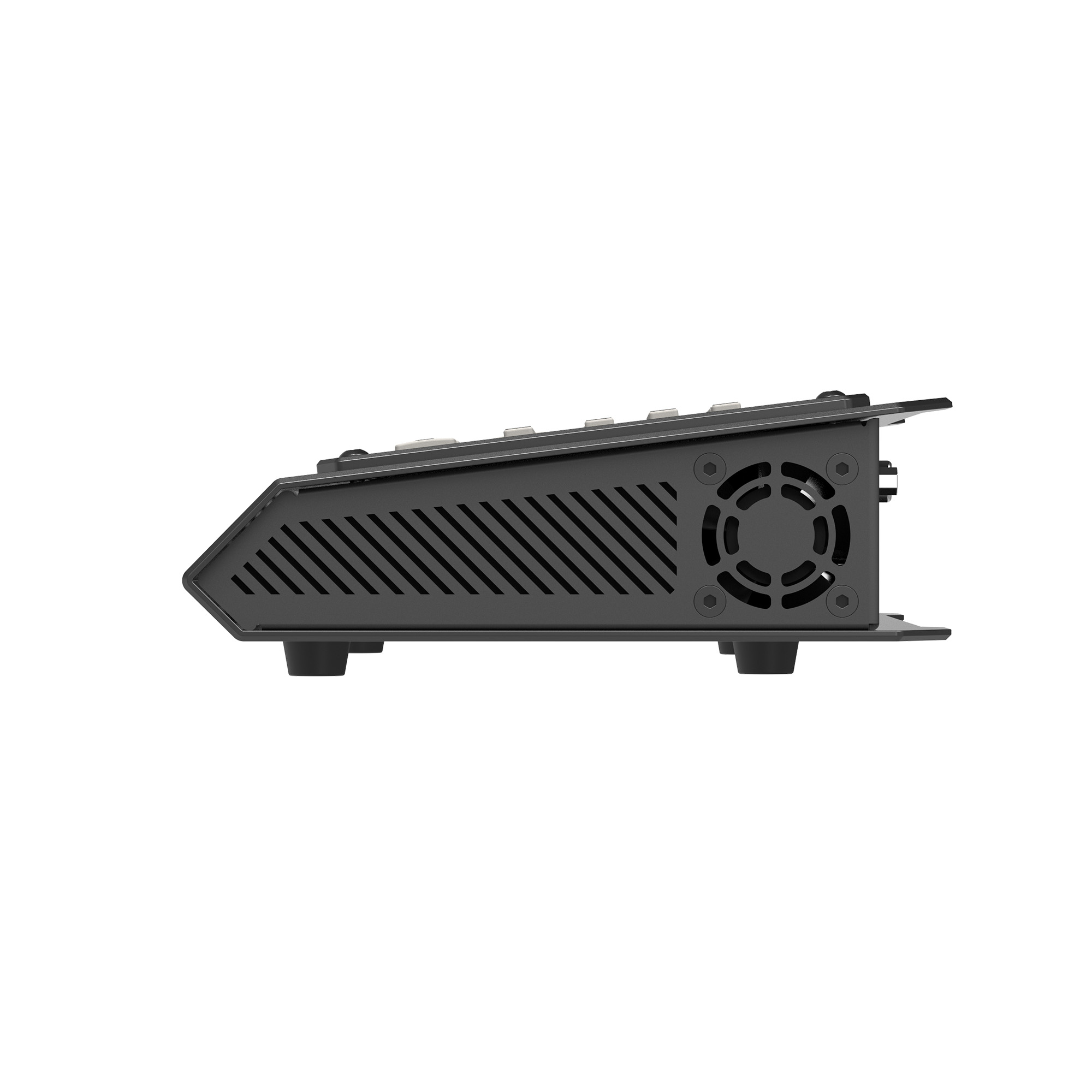

AVMatrix HVS0401U-Micro 4-CH HDMI/ DP Video Switcher

HVS0401U - Overview

• Features:

  • USB Type-C for video capturing (UVC)
  • PIP function, adjustable size and position
  • Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
  • AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • GPIO interface for live tally system
  • FTB for emergency situation


• Specifications:

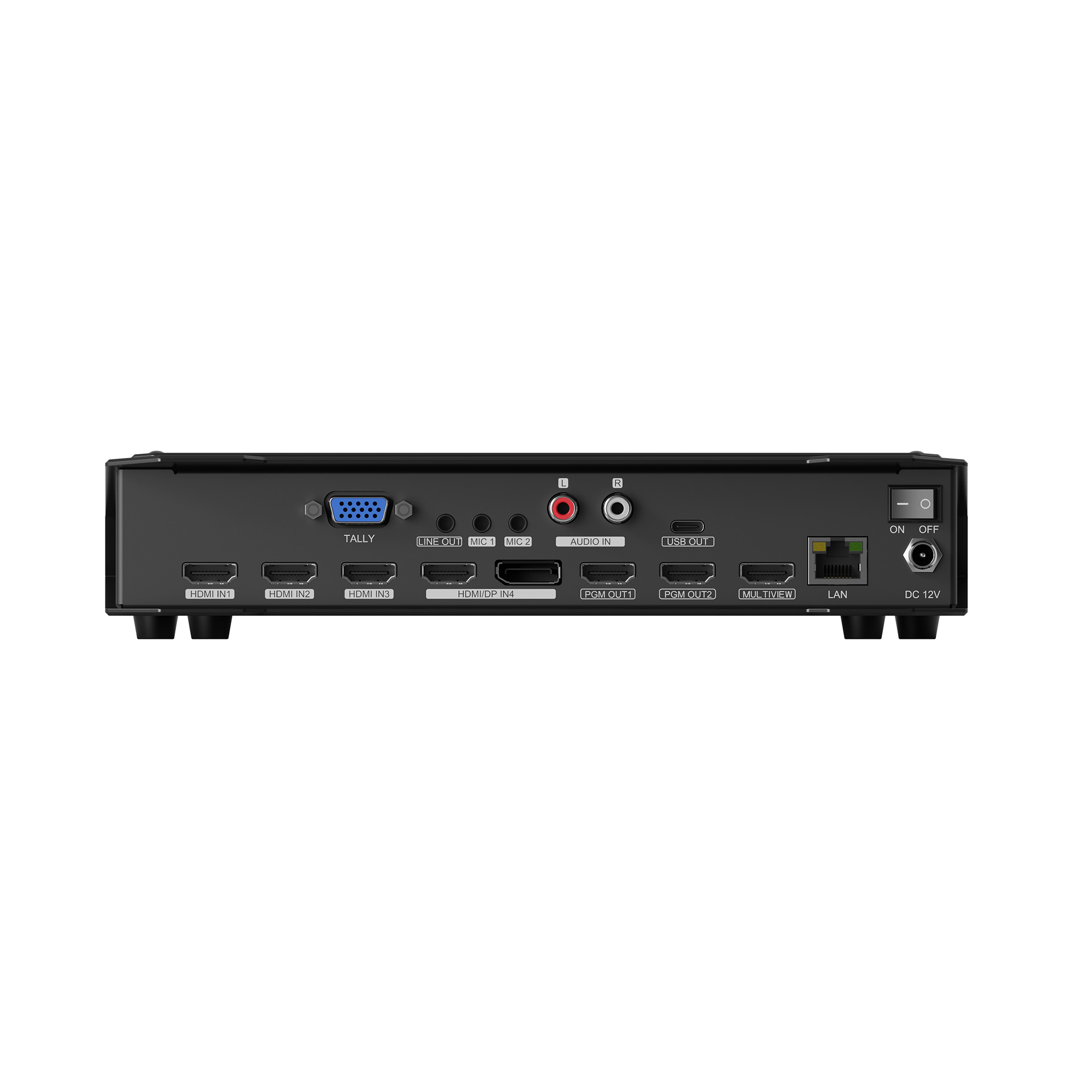

  • Connection
  • Video In:
    - Inputs 1-3: 3x HDMI
    - Input 4: 1x HDMI & 1x DisplayPort
  • Video Out:
    - PGM: 2x HDMI
    - Multiview: 1x HDMI
    - USB Capture: 1x USB-C
  • Audio In:
    - MIC/Line: 2x (3.5mm audio)
    - RCA: 1x (stereo audio)
  • Tally Out: 1x DB-15
  • Power In: 1x DC 12V IN

    Functions
  • Functions:
    - Image Still
    - Transitioin Speed
    - MUTE
    - Audio follows Video
    - Audio Mixer
  • Transitions:
    - AUTO
    - CUT
  • Effects:
    - WIPE
    - MIX
    - FADE
    - FTB
  • Layouts:
    - PIP
    - Multiview

    Video Format
  • HDMI In Format Support:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/25/24
    - 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
  • PC HDMI/DP Input Format Support: 2560x1600, 2048x1152, 1920x1080,1680x1050, 1600x1200, 1600x900, 1400x1050, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600, 640x480
  • HDMI PGM Out:
    - 1080p 60/50/30/25/24
    - 1080i 60/50
  • HDMI Multiview Out: 1080p60
  • HDMI Color Space: RGB/YCbCr
  • USB Capture Out: MJPG , Up to 1080p60

    Others
  • Power: 12V, 1.5A, 18W
  • Dimension (LxWxD): 9.4" x 5.5" x 1.71" (238.5mm x 140.4mm x 43.5mm)
  • Weight:
    - Net: 1.73lbs (785g)
    - Gross: 3.30lbs (1500g)
  • Operating Temperature: 14°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 155°F (-30°C - 70°C)


• Item Includes:

  • 1x Power supply (12V 2A)
  • 1x USB cable (type A-C)
  • 1x Tally connector (DB-15)
