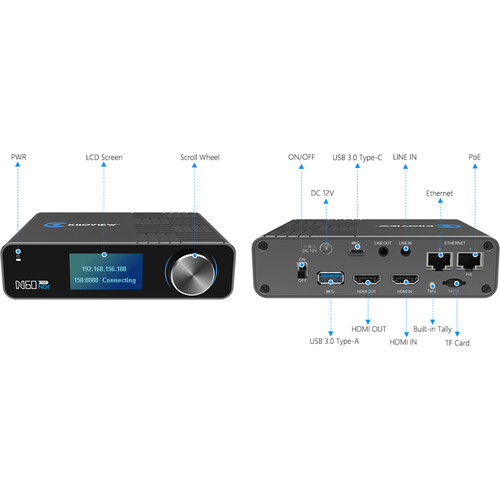

Take up to UHD 4K HDMI video sources and encode or decode your video for IP video transmission using this N60 UHD 4K HDMI/USB to NDI Bidirectional Converter from Kiloview. One HDMI input and one HDMI output can encode or decode video into NDI or NDI|HX video streams up to UHD 4K at 60 fps. A USB Type-A input and a USB Type-C port can accept web camera and PC computers as video sources to expand connectivity and allow for PTZ control.
The HDMI loop output can be used with a monitor or projector for viewing. An audio line input and output adds audio to your encoding and decoding capabilities. The front of the unit has a large 1.96" LCD screen and a scroll wheel to control your ports as well as adjust settings. Integrated in the converter's design is a TF card slot to record encoded NDI video directly to a storage card. Power for the device can be achieved via PoE or DC connection.
- Up to YCC 4:2:2 and 10-bit color depth
- USB 3.0 Type-C connects to your PC as a video input
- USB 3.0 Type-A connects to a web camera as a video input for encoding
- Control PTZ camera via USB expansion and serial RS-232/485/422
- Adopts network control protocols such as Sony VISCA, PELCO-D, and PELCO-P
- 1.96" LCD screen and scroll wheel
- Two Ethernet interfaces, one supports PoE
- Supports NDI and NDI|HX 2.0
- TF storage expansion to record encoded NDI video into a TF card
- Mount via cold shoe or V-mount accessory
