Image Sensor |
1"-Type CMOS
|
Sensor Resolution |
Actual: 13.4 Megapixel
Effective: 8.29 Megapixel |
Focus Control |
Autofocus
Manual Focus |
Shutter Speed |
1/3 to 1/2000 Second
|
Gain |
-6 to 36 dB
|
Minimum Illumination |
3 Lux
|
Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
White Balance |
Presets: AWB, Auto
Range: 3200 to 5600K |
Focal Length |
8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
|
Optical Zoom Ratio |
15x
|
Max Digital Zoom |
30x ( in 1080p)
|
Field of View |
Horizontal: 73 to 5.7°
Vertical: 45.2 to 3.2° |
Maximum Aperture |
f/2.8 to 4.5
|
Minimum Focus Distance |
2.0' / 60.0 cm
|
External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576i at 50 fps |
Embedded Audio |
HDMI/SDI
|
Broadcast Output |
NTSC
|
IP Streaming |
NDI|HX, RTMP, RTP, RTSP, SRT
3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p |
Presets |
100
|
Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-30 to 90°) at 0.1 to 100°/s |
Tally Light |
Yes
|
Supported Control Protocols |
FreeD
IP IR NDI VISCA |
Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
Single Slot: microSD (Unspecified Type) |

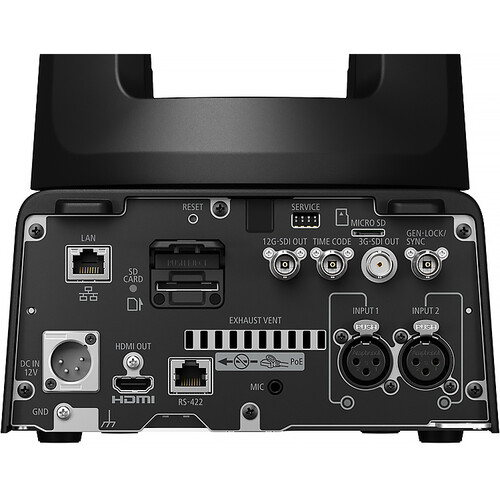

Video I/O |
1x BNC (3G-SDI) Output
1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output |
Audio I/O |
2x XLR 3-Pin Input
|
Other I/O |
1x RJ45 (RS-422) Control
1x RJ45 (LAN) 1x BNC (Genlock) |
Built-In Microphone |
No
|
Built-In Speaker |
No
|
PoE Support |
PoE++ 802.3bt
|
Power I/O |
1x XLR 4-Pin (12VDC)
|
Power Consumption |
PoE: 1.2 A (37.4 W)
Power Supply: 3.5 A (36.7 W) |
Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
Mounting |
6x M3 Female
|
Dimensions (W x H x D) |
7.9 x 10.6 x 8.2" / 200 x 269 x 208 mm
|
Weight |
9.7 lb / 4.4 kg (Body Only)
|
Package Weight |
14.15 lb
|
Box Dimensions (LxWxH) |
18.6 x 15.3 x 14.6"
|
