จอมอนิเตอร์ Lilliput A7 7" Full HD Camera-Top Monitor
Lilliput A7
The Lilliput A7 is the highest definition HDMI Monitor in our vast range. With a native definition of 1920 x 1200px, it has more than enough pixel density to accommodate any HDMI input feed.
The full metal outer body protects the unit against bumps and scrapes and both BSW threads and VESA 75 mounting allow both for mobile work and for studio installation.
Advanced monitor functionality
As detailed at the top of this description page, the Q7 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Waveforms, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.
7" SDI monitor with widescreen aspect ratio
The Lilliput Q7 features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolation
Metal outer frame for added durability
The Q7 has a lightweight metal housing - designed to take the roughest of knocks while at the same time being as light and portable. The unit weight in at 405g, with an overall thickness of 22mm - far thinner and lighter than many other comparable models. Invaluable for use in the field, or in a tough-and-tumble environment.
Battery plate system for compatible batteries with your DSLR setup
We supply the monitor with 2 battery plates as standard - these are compatible with the Canon LP-E6 and the Sony F-970. Also available are the Sony QM91D and the Panasonic DU21, and for an addition charge we can supply a V-Mount battery plate.
Shoe mount Adaptor included

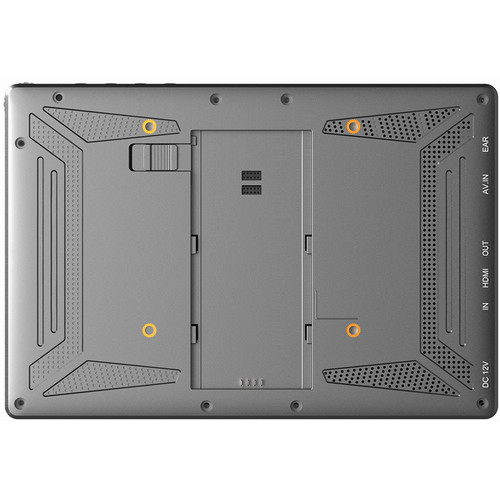

There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed
SPECIFICATIONS
- Screen Size (diagonal) 7"
- Aspect Ratio 16:10
- Resolution (Pixels) 1920x1200 (324ppi) (native
- Viewing Angle (degrees) 170º x, 170º y
- Brightness (cd/m²) 500
- Contrast Ratio 1000:1
- LCD Backlight LED
- Video Inputs
- HDMI x1
- Video Outputs
- HDMI x1
- Audio Outputs
- Built in speaker, 3.5mm Headphone Jack
- Input Power Source
- DC 12V
- Operating Temperature
- -20ºC to 60ºC
- Mount Type
- ¼ inch BSW thread, VESA 75
- Please note: product specifications, features, images and related downloads are subject to change at Lilliput UK's discretion at any time without prior notification. Lilliput UK Ltd cannot be held liable for outdated product information. Should customers have any queries about listed product specifications, please call Lilliput UK Ltd on +44 0845 0068868.
