จอมอนิเตอร์ Lilliput 664 7" IPS On-Camera Monitor
PRODUCT HIGHLIGHTS
- 1280 x 800 Display Resolution
- HDMI Input
- Composite, Shutter, Headphone Inputs
- 400 Nit Brightness
- 800:1 Contrast Ratio
- 178° IPS Viewing Angle
- Built-In Speaker
- LP-E6 & F-970 Battery Plates Included
- Sun Shade Included
The 664 7" Field Monitor from Lilliput is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. It features HDMI, Composite, shutter port, and earphone inputs. The monitor also features both a built-in speaker and headphone jack. The front panel buttons can be used to control the functions of the monitor.
7" camera-top monitor with 16:10 aspect ratio
Displays images with resolutions up to 1280 x 800
IPS panel offers 178° wide viewing angles

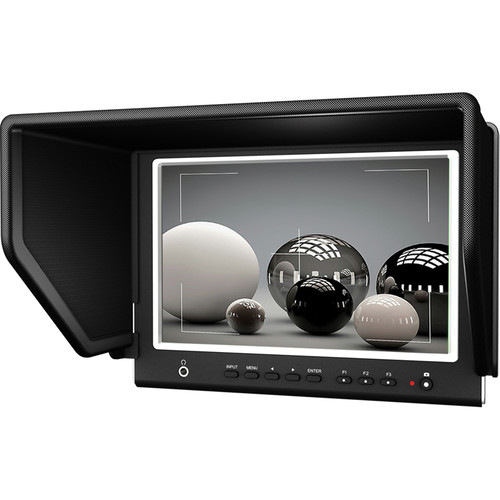

Features a smart screen protector that folds out to become a sun hood and provides protection for the LCD
800:1 contrast ratio produces vivid and rich colors
Pop-up shortcut menu
SPECIFICATIONS
LCD Display
- LCD Size 7.0" (17.8 cm) (IPS)
- Display Resolution 1280 x R.G.B. x 800 (Dot)
- Active Area 149.76 (H) x 93.6 (V) mm
- Dot Pitch 0.117 (H) x 0.117 (V) mm
- Aspect Ratio 16:10
- Brightness 400 cd/m2
- Contrast Ratio 800:1
- Light Source LED
- Surface Treatment 3H
- Response Time TR: 14 ms (typical), 17 ms (maximum)
- TF: 14 ms (typical), 17 ms (maximum)
- Viewing Angle Left/Right/Up/Down: 89°
- 178° wide viewing angle
Video
- Input Signal Analog RGB

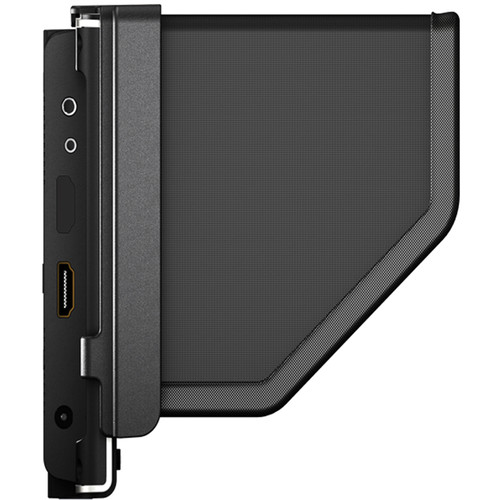

- Connections Inputs: HDMI, Composite, Shutter Port, Earphone
- Format Support 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 23.976, 24SF
- 1080i at 60, 59.95, 50
- 1035i at 60, 59.94
- 720p at 60, 59.94, 50, 30, 29.97, 25
- 576p at 50
- 576i at 50
- 480p at 60, 59.94
- 486i at 60, 59.94
General
- Control Power, Shutter Shortcut Button, F1-F3 User-Definable Buttons, Brightness, Contrast, Saturation, Tint, Sharpness, Color Temperature, Center Marker, Aspect Marker, Marker Color, Marker Mat, Aspect Ratio, H/V delay, Check Field, Pixel-to-Pixel, Underscan, Color Bars, Zoom, Image Flip, Freeze Input, PIP,
- Speaker Built in, 1 W
- Language English/Chinese
- Power Requirements 7 to 24 VDC (XLR Connector)
- Power Consumption ≤12 W
- Temperature Operating: -4 to 140°F (-20 to 60°C)
- Storage: -22 to 158°F (-30 to 70°C)
- Operating Humidity 80% RH maximum
- Dimensions (L x W x D) 7.2 x 5.1 x 0.9" (18.4 x 13.1 x 2.3 cm)
- Weight 13 oz (365 g)
