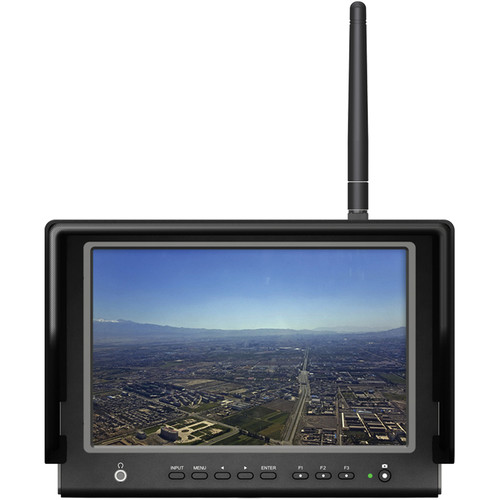

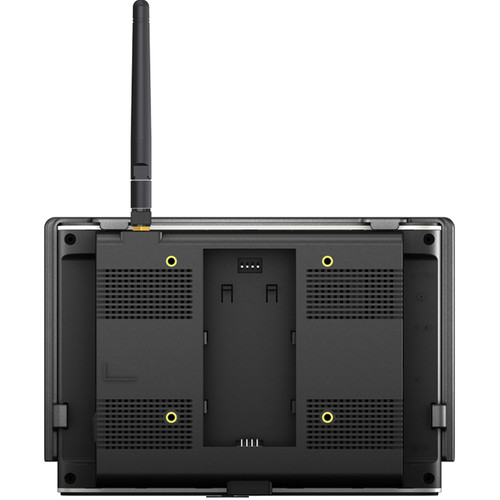

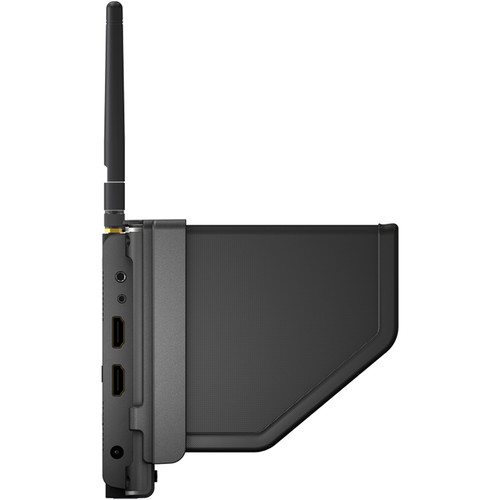

จอมอนิเตอร์ Lilliput 664/W 7" FPV Monitor with 5.8 GHz Wireless Receiver
The 664/W 7" FPV Monitor 5.8 GHz Wireless Receiver from Lilliput is built for first-person viewing (FPV) of the wireless AV feed. The monitor supports both NTSC and PAL signals and provides a composite AV input and wireless connectivity. The 7" IPS display has a resolution of 1280 x 800 and a high 400 cdm2 brightness for use in sunny conditions. The 5.8 GHz wireless receiver has a range of up to 6561.7'.
7" FPV monitor supports resolutions up to 1280 x 800
Features a built-in 5.8 GHz wireless receiver with a range of up to 6561.7'
Offers screen brightness of 400 cd/m2 and a contrast ration of 800:1
Supports PAL / NTSC signals with automatic switching, anti-black, anti-blue, and anti-flash
Features composite video AV inputs
Can be used with Li-ion batteries (not included)
Suitable for use in outdoor photography applications
SPECIFICATIONS
LCD Display
- LCD Size 7.0" (17.8 cm) IPS
- Display Resolution 1280 x 800
- Active Area 149.76 (H) x 93.6 (V) mm
- Dot Pitch 0.117 (H) x 0.117 (V) mm
- Aspect Ratio 16:10
- Brightness 400 cd/m2
- Contrast Ratio 800:1
- Surface Treatment 3H
- Viewing Angle 178°/178°
- Video
- Input Signal Analog RGB
- Inputs 1 x HDMI, 1 x Composite, 5.8 GHz Wireless AV, 1 x Shutter Port
- Input Connectors HDMI, AV
- Wireless Channels CH1: 5705 MHz, CH2: 5685 MHz, CH3: 5665 MHz, CH4: 5645 MHz, CH5: 5885 MHz, CH6: 5905 MHz, CH7: 5925 MHz, CH8: 5945 MHz
General
- Control Basic: Power, Shutter shortcut button, F1-F3 User-definable buttons, Enter button, Left/right selection key, Menu, circularly switch
- Speaker Built in, 1 W
- Language English/Chinese
- Power Requirements 12 VDC, 1500 mA
- Power Consumption ≤ 12 W
- Temperature Operating: -4 to 140°F (-20 to 60°C)
- Storage: -22 to 158°F (-30 to 70°C)
- Dimensions (L x W x D) 7.2 x 5.1 x 0.9" (18.5 x 13.1 x 2.3 cm)
- Weight 0.9 lb (0.4 kg)
