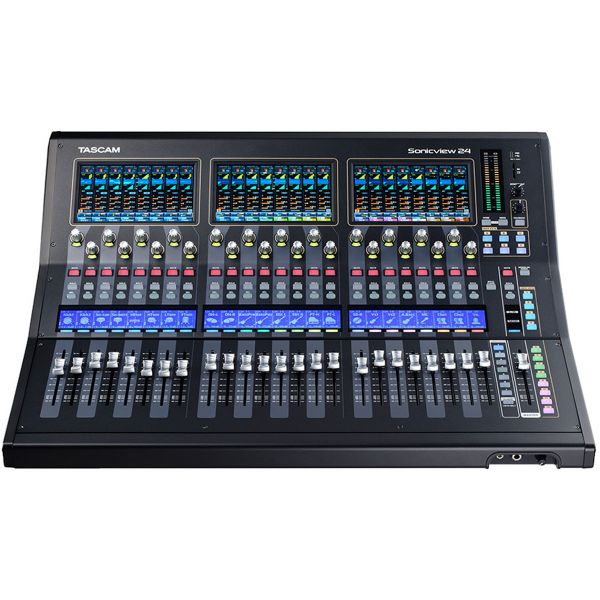

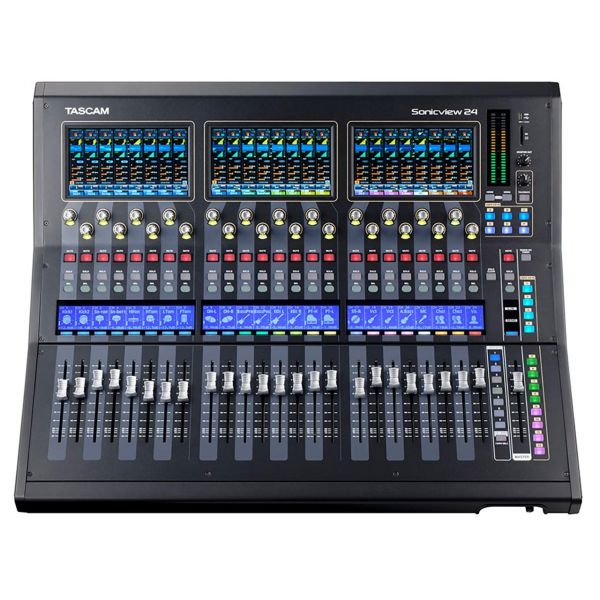

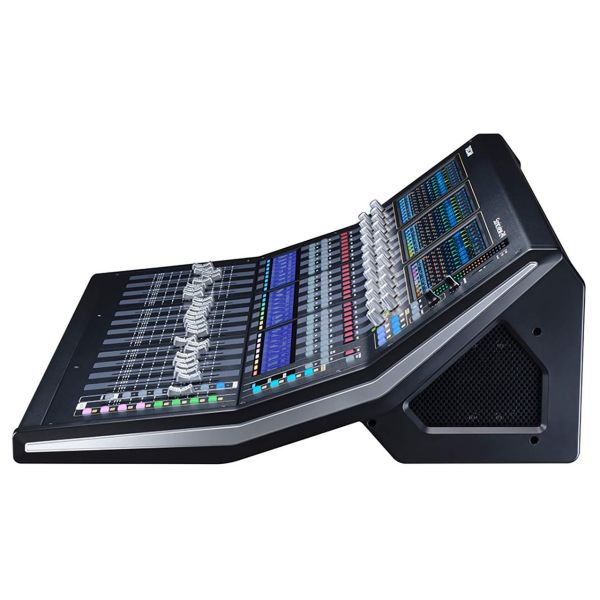

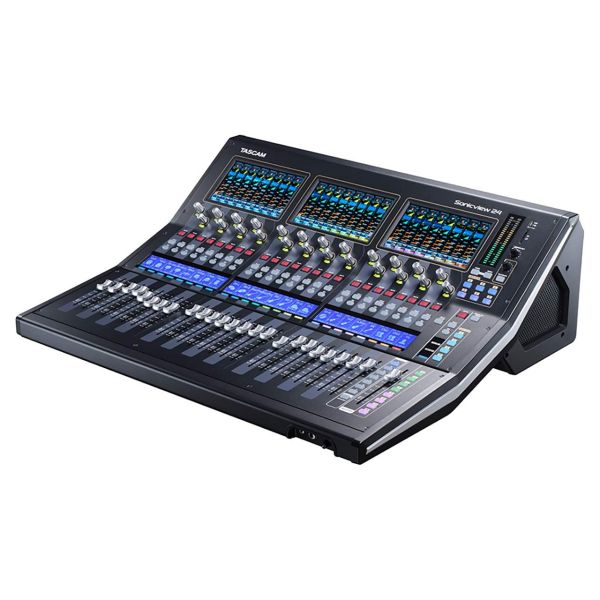

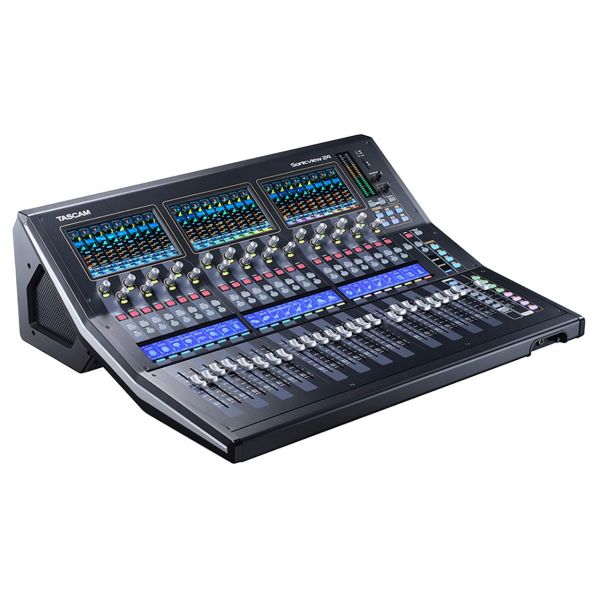

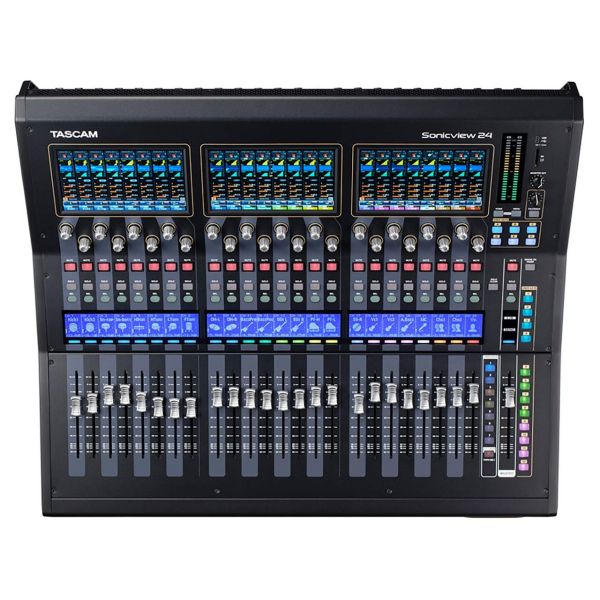

TASCAM Sonicview 24XP Digital Mixer 24 CH

คุณสมบัติ

• TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
• Multiple displays with three 7-inch touch panels
• 44 input channels (or 40 mono input channels and 2 stereo input channels) and 4FX return
• 22 flexible output buses and main L/R bus with 31-band graphic EQ
• 96 kHz, 54-bit float-point FPGA mixing engine
• Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
• 32-bit/96 kHz AD/DA conversion
• TASCAM Class 1 HDIA microphone preamplifiers
• 32-in/32-out, 32-bit/96 kHz USB audio interface
• Built-in 32-track SDXC recorder
• 64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
• 24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
• 4 multi-effects processors
• TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing
• 2 TASCAM expansion slots
  ・SDXC multi-track recording card preinstalled in one slot
  ・Optional MADI, Dante, AES/EBU, and analog outputs cards available for the second slot

คุณสมบัติอื่นๆ

• Hardware mixing surface and mixing engine operating system are independent of each other for high stability and continuous audio flow
• Library: Snapshot/Effect/Module/Parametric EQ/Graphic EQ/Gate/Compressor
• 18 assignable user keys, 7 custom fader layers, 8 DCA groups
• 24+1 100mm motorized faders
• 24 encoder knobs with color LED
• 24 LCDs with color LED display channel name, input level, and gain reduction meter
• 2 ch internal recording/playback with SD card or USB flash drive
• 8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
• XLR monitor outputs
• 1/4-inch and 1/8-inch headphone outputs
• Word clock In and Out/Thru
• 1000BASE-T gigabit Ethernet
• 8-in/8-out GPIO on DB25
• TRS footswitch jack
• XLR 4-31 lamp connector
• Power switch with guard
• Optional SB-16D 16-in, 16-out Dante-enabled stage box
