จอมอนิเตอร์ Lilliput 667GL70NP/H/Y On-Camera Video Monitor
PRODUCT HIGHLIGHTS
- 7" 800 x 480 TFT LED Backlit Display
- 500:1 Contrast Ratio
- HDMI, Component, Composite Inputs
- Image Flip
- Sun Hood & IR remote Control
- 2 x Interchangeable Battery Plates
- Battery Indicator Light, Power Selector

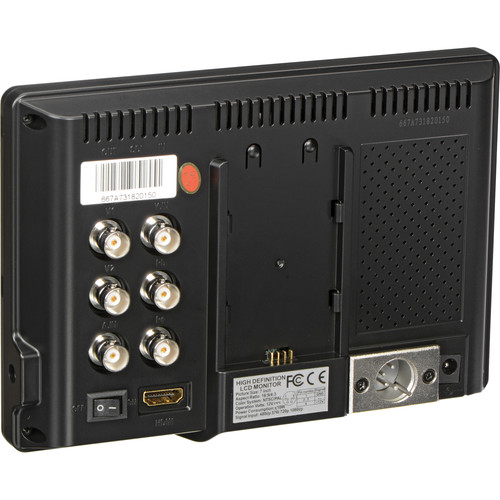

Lilliput's 667GL70NP/H/Y On-Camera Video Monitor provides 800 x 480 resolution with 400 nit brightness and an 500:1 contrast ratio. It supports NTSC and PAL compatible signals and features HDMI, Component, and Composite inputs. It features a built-in speaker, a sun hood, and an IR remote control. On the face of the monitor are the IR receiver, a battery power indicator, volume up and down buttons, a menu button, left/right select buttons, input select and a power button.
The monitor provides you control over the display's brightness, contrast, saturation, tint, and color temperature. You can power the monitor by using the included battery plates, an optional 4-pin XLR connector, or the built-in coax connector. An assortment of supplied accessories includes a Sony QM91D type and a Panasonic DU21 type battery plate, and a removable sun hood. The included mounting bracket is designed to allow you to stand the monitor on a desk. For on-camera mounting, you will require an optional cold shoe adapter.
SPECIFICATIONS
LCD Size 7"
- Video System NTSC
- PAL
- Resolution 800 x 480
- Aspect Ratio 16:9
- Brightness 450 nit
- Contrast 500:1
- Viewing Angle 140°/120° (H/V)
- Input and Output Connectors Input
- HDMI: 1 x HDMI Type A
- Component: 3 x BNC
- Composite: 2 x BNC
- Audio: 1 x BNC
Output
- Speaker: 1 x W
- Input Resistance 75 Ω
- Mounting 3 x 1/4"-20 threaded mounting holes
- Language English
- Chinese
- Power Connectors 1 x 4-pin XLR
- 1 x Battery plate slot
- 1 x Coax connector
- Power Requirements 7 to 24 VDC
- Operating Current: 650 mA
- Max Standby Current: 50 mA
- Power Consumption Max: 8 W
- Dimensions (WxHxD) Monitor Without Sun Hood: 7.4 x 5.2 x 1.3" / 188 x 131 x 33 mm
- Monitor With Sun Hood: 7.6 x 5.3 x 2.9" / 194 x 134 x 73 mm
- Weight Monitor Without Sun Hood: 1.1 lb / 510 g
- Monitor With Sun Hood: 1.5 lb / 668 g
