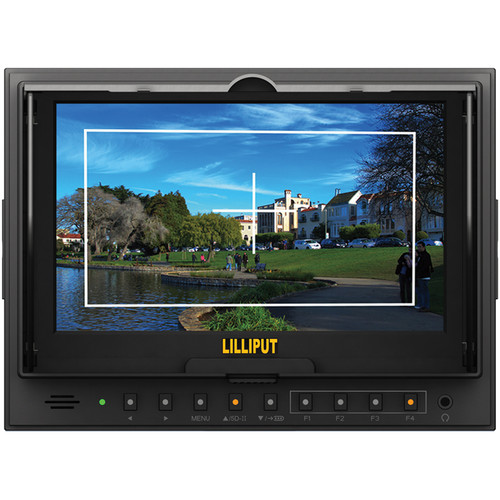

จอมอนิเตอร์ Lilliput 5D-ii/O/P 7" HDMI LCD Field Monitor
PRODUCT HIGHLIGHTS
- 7" 1024 x 600 HDMI Monitor
- False Color / Zebra / Histogram
- 250 cd/m² / 800:1 Contrast Ratio
- 130° L / R Viewing Angle
- Peaking / 1:1 Pixel Mapping
- Integrated Collapsble Sunhood
- Cold Shoe Mount
The 5D-ii/O/P 7" HDMI LCD Field Monitor from Lilliput is suitable for use with DSLR cameras and can be easily stored in a camera bag. It supports video with resolution up to 1920 x 1080 and features a native resolution of 1024 x 600, scaling your input video to fit. The 800:1 contrast ratio and 250 cd/m² brightness provide a sharp, clear display.
The monitor is equipped with 1:1 pixel mapping, peaking, and a foldable sun-hood/screen protector. It features an HDMI output, allowing you to feed a second monitor without requiring a splitter, thus reducing the amount of cable clutter on your camera. Four assignable front panel buttons allow you to rapidly recall often used menu functions. The monitor comes with Canon LP-E6 and Sony F970 battery plates.
7" LCD monitor fit for DSLR use
Easily stored in a camera bag
1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production
Focusing is easier with the peaking functionality

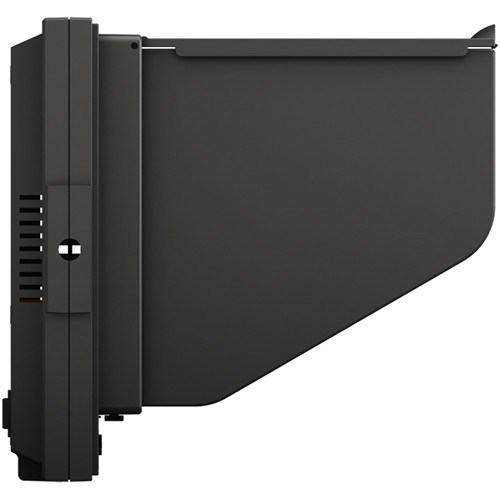

Screen protector folds out to become a sun hood, providing protection for the LCD and eliminating the need to buy a separate sun hood
HDMI output feature allows duplication of the video content onto a second monitor without the need of any HDMI splitters
LED-backlit display panels deliver higher levels of detail and image accuracy
800:1 contrast ratio produces colors that are vivid, rich, and accurate
With 150° viewing angle, you can get the same vivid picture from wherever you are standing
SPECIFICATIONS
- Screen Size (Diagonal) 7" (177.8 mm)
- Aspect Ratio 16:9
- Resolution 1024 × 600 (native), 1920 × 1080 (maximum)
- Pixel Pitch 0.135 × 0.135 mm
- Display Scan Frequency 60 to 72 Hz
- Response Time 6 ms
- Viewing Angle 150 x 130°
- Brightness 250 cd/m²
- Contrast Ratio (Typical) 800:1
- LCD Backlight LED
- Video Inputs HDMI
- Video Outputs HDMI
- Audio Outputs < 1 W
- Input Power 12 VDC
- Mount Type 1/4" BSW thread, shoe mount

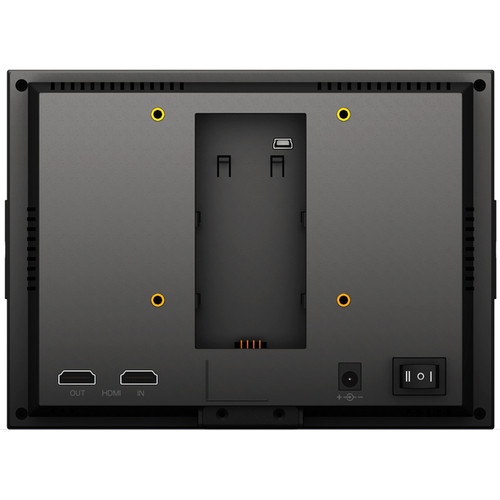

- Battery Plate Canon LP-E6: EOS 5D Mark II, EOS 5D Mark III, EOS 7D, EOS 60D, EOS 6D
- Sony F970: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330
- Dimensions (W x H x D) 7.7 x 5.7 x 1.2" (196.5 x 145 x 31 mm)
- Weight 14.1 oz (400 g)
