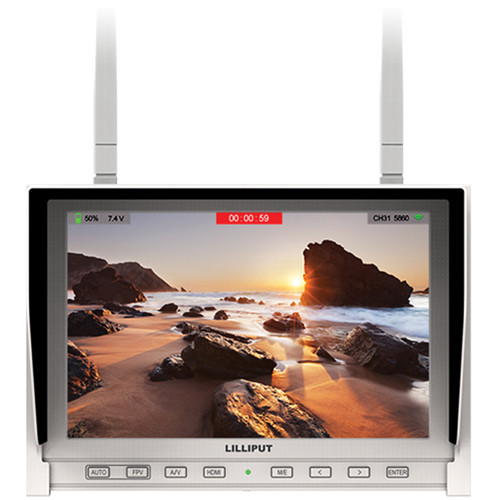

จอมอนิเตอร์ Lilliput 339/DW 7" FPV Monitor with Dual Built-in 5.8GHz Wireless Receiver (White)
The white 339/DW 7" FPV Monitor from Lilliput has dual built-in 5.8 GHz wireless receivers that cover 4 bands and a total of 32 channels. It has a display resolution of 1280 x 800 with an aspect ratio of 16:9. The included dual antennas can receive two different video signal channels and overlay the video signals on one monitor. Also multiple Picture-in-Picture (PiP) modes can be selected. The built-in receiver supports PAL/NTSC and can be switched automatically. The monitor is suitable for aerial enthusiasts and professional photographers.
Monitor
Features attractive IPS panels with 1280 x 800 resolution, 178° wide viewing angle, and high brightness/contrast that provide a better viewing experience
Supports 32 channels
Included dual antennas can receive two different video signal channels and overlay the video signals on one monitor
Multiple Picture-in-Picture (PiP) modes can be selected
Integrated timer function supports up to 4-hour countdown, and it will alert when 1 minute left
Built-in 2600mAh battery supports up to 3 to 4 hours working time and provides battery level indicator
Wireless signal sensitivity indicator is convenient for users to monitor the video signal status of a UAV
Receiver
Built-in 5.8 GHz wireless AV receiver
Supports PAL / NTSC switch automatically
Simulation of composite video AV inputs, aerial camera connection
No blue screen problem when the signal gets weak, from 100 to 2000m wireless distance
SPECIFICATIONS
- Display
- Panel 7" IPS, LED backlit
- Resolution 1280 x 800
- Aspect Ratio 16:9
- Brightness 400 cd/m2
- Contrast 800:1
- Viewing Angle 178/178° (H/V)
- Input
- Wireless Receiver Input 2
- HDMI 1
- AV 1
- Output
- AV 1
- Audio
- Speaker 1
- Earphone 1
- Power
- Current 1300 mA
- Input Voltage 7 to 24 VDC
- Battery Built-in 2600 mAh battery
- Power Consumption ≤ 18 W
- Environmental
- Operating Temperature -4 to 140°F (-20 to 60°C)
- Storage Temperature -22 to 158°F (-30 to 70°C)
- Mechanical
- Dimensions (L x W x D) 7 x 5 x 1" (185 x 126 x 30 mm)
- Weight 13.5 oz (385 g)
