The KIT-5005x2 is a 4K60 USB-C/HDMI extender and scaler matrix kit that enables seamless high-resolution video distribution. It combines flexible scaling, multi-source routing, and easy integration for professional AV setups, conference rooms, and live presentations.
KIT 500 is a high−performance integrated matrix scaler kit, consisting of the KIT 500T matrix transmitter with two USB−C and two HDMI/USB inputs independently routable to HDMI and HDBT outputs, and the KIT 500R auto−switcher scaler receiver with an HDMI input for routing a local signal and an HDBT input for routing a remote signal (from the KIT 500T transmitter). The remote USB peripherals (such as a room camera) are extended for use of local USB host for convenient hybrid meeting operation with both room and online participants.
INPUTS
2 HDMI: On female HDMI connectors
2 USB–C: On USB–C female connectors
1 Mic/Unbalanced Stereo Audio: On a 3–pin terminal block connector
1 AUX Unbalanced Stereo Audio: On a 3.5mm mini jack
OUTPUTS
1 HDMI: On a female HDMI connector
1 HDBaseT: On an RJ–45 connector
1 Balanced Stereo Audio: On a 5–pin terminal block connector
PORTS
1 Ethernet: On an RJ–45 connector
1 Control RS–232: On a 3–pin terminal block connector
1 Data RS–232: On a 3–pin terminal block connector
1 Program USB: On a USB type A connector for firmware upgrade
3 USB (HUB): On USB type A connectors
2 USB (Host): On USB type B connectors
Integrated USB Hubs: 2
ANALOG AUDIO
Input Coupling: AC
Output Coupling: DC
Max Input Signal Level: 5.5Vp–p/8dBu
Max Output Signal Level: 6Vp–p/8.7dBu
Frequency Response: 20Hz to 20kHz ±0.1dB
THD+N (A–weighted): 76dB
Input Impedance: 14KΩ
Output Impedance: 500Ω
For Embedded Audio — Number of Supported Channels: Up to 8CH
Supported Audio Formats: Dolby, DTS

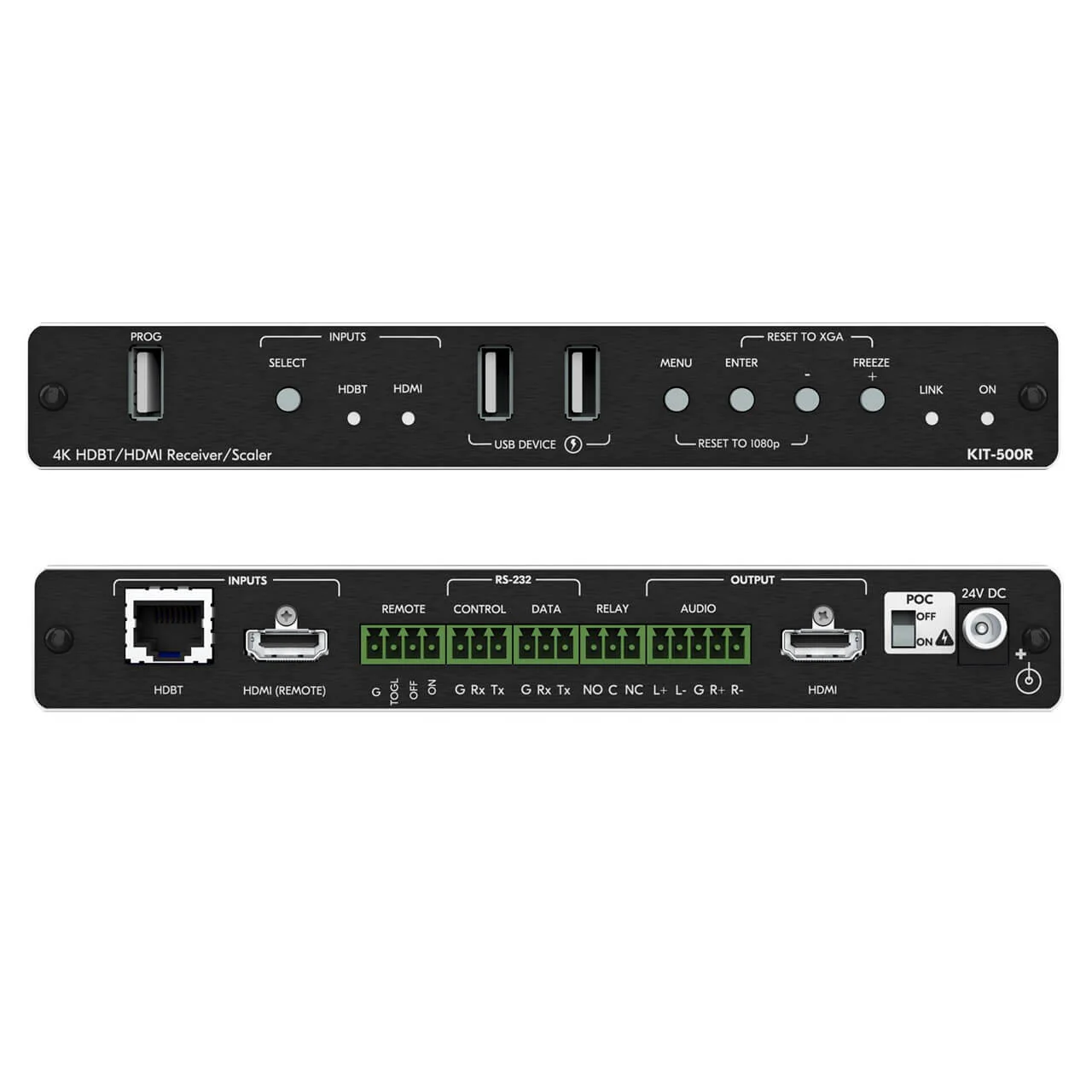

RECEIVER
INPUTS
1 HDBaseT: On an RJ–45 connector
1 HDMI: On a female HDMI connector
OUTPUTS
1 HDMI: On a female HDMI connector
1 Balanced Stereo Audio: On a 5–pin terminal block connector
PORTS
1 Control RS–232: On a 3–pin terminal block connector
1 Data RS–232: On a 3–pin terminal block connector
3 Remote Contact–Closure: On a 4 pin terminal block connector
1 Relay: On a 3–pin terminal block connector
2 USB (DEVICE): On USB 2.0 type A connectors
1 Program USB: On a USB–A connector for firmware upgrade
Integrated USB Hubs: 1
ANALOG AUDIO
Output Coupling: DC
Max Input Signal Level: 3.5Vp–p/4.2dBu
Max Output Signal Level: 10Vp–p/13dBu
Frequency Response: 20Hz to 20kHz ±0.1dB
THD+N (A–weighted): 76dB
Output Impedance: 500Ω
For Embedded Audio — Number of Supported Channels: 2CH
Supported Audio Formats: LPCM
VIDEO
Max Data Rate (Transmitter): USB–C and HDMI ports: 18Gbps
Max Data Rate (Transmitter): HDBT port: 10.2Gbps
Max Resolution (Receiver): HDMI port: 4K@60Hz (4:4:4)
Max Resolution (Receiver): HDBT port: 4K@60Hz (4:2:0)
HDMI Support: 4K60, CEC, xvYCC color
Content Protection: HDCP 1.4 and 2.2 (KIT–500R)
KIT-500R Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
USB FEATURES
Data Rate: USB 3.0 Ports: 5Gbps
Data Rate: USB 2.0 over HDBT: Up to 127Mbps (out of max 480Mbps)
EXTENSION LINE
Up to 40m (130ft): At 4K@60Hz (4:2:0)
Up to 70m (230ft): At full HD (1080p@60Hz)
Compliance: HDBaseT 2.0
POWER
Source: 24V DC, 5A
Combined Consumption of Both Units: 24V DC, 3.7A
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
ENCLOSURE
Size: MegaTOOLS®
Type: Aluminum
Cooling: Convection ventilation
STANDARDS COMPLIANCE
Safety: CE
Environmental: FCC, UCKA
ACCESSORIES
Included: 1 Power adapter, 2 power cords (EU and US), 8 rubber feet, 1 bracket set
PRODUCT DIMENSIONS
21.40cm x 17.40cm x 4.00cm (8.43" x 6.85" x 1.57" ) W, D, H
SHIPPING DIMENSIONS
17.00cm x 20.00cm x 5.00cm (6.69" x 7.87" x 1.97" ) W, D, H
