จอมอนิเตอร์ Lilliput 969A/S 9.7” LED-Backlit HD Broadcast Monitor
The Lilliput 969A/S 9.7” LED-Backlit HD Broadcast Monitor features earphone, SDI, YPbPr, audio, HDMI, mini USB, power cable interface, TALLY signal, USB, and XLR DC power inputs. This monitor is optimized for studio and video editing work. It supports resolutions up to 1024 x 768 pixels and features a 600:1 contrast ratio. This LCD features IPS technology and offers a viewing angles of 178°. The monitor also features a foldable sun shade to protect the display from glare when used outdoors.
Features a 9.7" IPS LCD screen that is suitable for a small broadcast applications
Supports resolutions up to 1024 x 768 pixels
Screen features a 4:3 aspect ratio and a 600:1 contrast ratio
178° viewing angle ensures the content does not get distorted
Features 3G-SDI & HDMI input
SPECIFICATIONS
- Display
- Panel 9.7" (24.6 cm)
- Resolution 1024 x R.G.B. x 768
- Dot Pitch 0.192 (H) x 0.192 (V) mm
- Aspect Ratio 4:3
- Brightness 400 cd/m2
- Contrast 600:1
- Backlight White LED
- Surface Treatment Hard coating (3H), glare treatment of the front polarizer (Haze 0%)
- Response Time Ton + Toff: 30 ms (typical), 50 ms (maximum)
- Viewing Angle Left/Right/Up/Down: 89°, Total: 178°(H/V)
- Format SDI
- SMPTE-425M-A: 1080p (60/59.95/50/30/29.97/25/24/23.976/24sf)
- SMPTE-274M: 1080p (30/29.97/25/24/24Sf/23.976), 1080i (60/59.94/50)
- SMPTE-296M: 720p (60/59.94/50/30/25)
- SMPTE-125M: 480i (60/59.94)
- ITU-R BT.656: 576i (50)

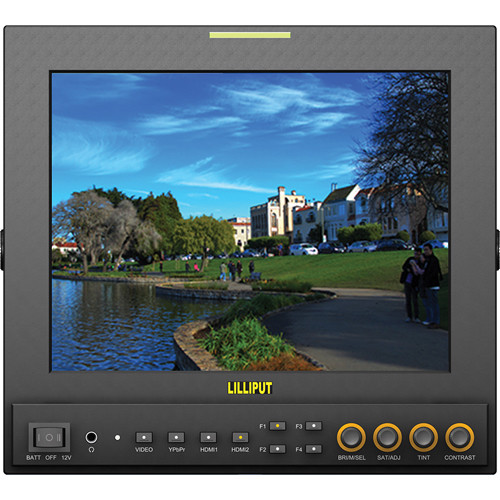

- Control Basic: Battery power, Video, YPbPr, HDMI bottoms. F1-F4 User-definable buttons, BRI/M/SEL knob, SAT/ADJ knob, TINT knob, CONTRAST knob
- Advance: Brightness, Contrast, Saturation, Tint, Volume, Sharpness, Color Temp, Check Field, Aspect Ratio, Pixel-to-Pixel, Camera, H/V delay, Underscan, Center Marker, Screen Markers, Language, PIP, Input Format OSD, LOGO, Freeze Input, Peaking, Assistant Function, Manufacturer Default, Color Bar, Zoom, ISP.
- Inputs & Outputs

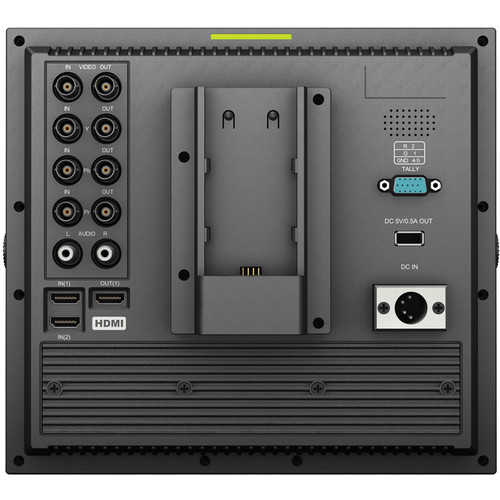

- Interface Earphone, SDI, YPbPr, audio, HDMI, mini-USB, power cable interface, TALLY signal, USB, XLR DC power
- Connectors Input: HDMI, YPbPr, SDI, TALLY, Audio
- Output: HDMI, YPbPr, SDI, USB
- Power
- Power Input 7 to 24 VDC
- Power Consumption ≤ 18 W
- General
- Speaker Built in 1 W
- Menu Language English/Chinese
- Operating Temperature -4 to 140°F (-20 to 60°C)
- Storage Temperature -22 to 158°F (-30 to 70°C)
- Dimensions (L x W x D) 9.8 x 6.7 x 1.2" (24.6 x 22.4 x 3.1 cm)
- Weight 8.2 lb (3.7 kg)
