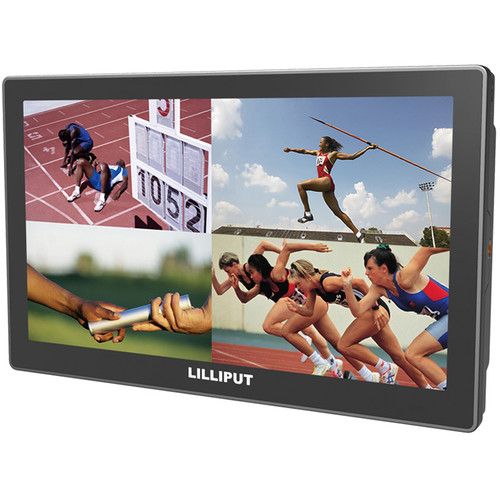

จอมอนิเตอร์ Lilliput A10 10.1" 4K Field Monitor
The LILLIPUT A10 10.1" 4K Field Monitor has a native resolution of 3840 x 2160 with a PPI value of 437 for clear 4K pictures. It features a DisplayPort 1.2 and HDMI 2.0 ports which support 4K 60 Hz signal input. The monitor is suitable for use by directors and camera operators operating 4K capable equipment.
8-bit IPS display with native 3840 x 2160 resolution and 160° viewing angle
Quad screen view, false color filters, peaking, image flip, overscan, underscan, and screen markers
1500:1 contrast ratio and 400 cd/m2 brightness rating
3G-SDI, HDMI, and DVI-I (DVI-D, VGA) ports
SPECIFICATIONS
- LCD Size 10.1" (256.6 mm)
- Video System Not specified by the manufacturer
- Resolution 3840 x 2160
- Aspect Ratio 16:9
- Viewing Angle 160/160°
- Brightness 400 cd/m2
- Contrast Ratio 1500:1
- Backlight LED
- Formats SDI
- SMPTE-125M
- 480i (59.94)
- 1080i (60/59.94/50)
- 1080p (30/29/97/25/24/24sF/23.98/23.98sF)
- SMPTE-292M
- 1080p (30/29/97/25/24/24sF/23.98/23.98sF)
- SMPTE-296M
- 720p (60/59.94/50/30/29/25/24/23.98)
- SMPTE-372M
- 720p (60/59.94/50)
- 1080i (29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29/25/24/23.98)
- SMPTE-425M-AB
- 1080p (60/59.94/50)
- Level A & Level B
- 720p (60/59.94/50/30/29/25/24/23.98)
- Level B 2x
- 1080i (60/59.94/50)
- ITU-R BT.656
- 576i (50)
- HDMI
- 4K, 1080p, 1080i, 1035i, 720p, 576p, 576i, 480p, 486i
- Displayport
- Up to 4K

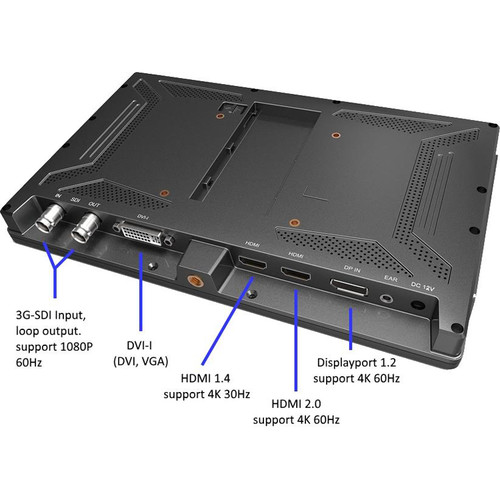

- Input and Output Connectors Video Inputs: 1 x Displayport 1.2 (Supports 4K 60 Hz), 1 x HDMI 2.0 (Supports 4K 60 Hz), 1 x HDMI 1.4 (Supports 4K 30 Hz), 1 x DVI-I
- Video Outputs: 1 x 3G-SDI
- Audio Outputs: 2 x Speaker, 1 x 3.5 mm jack
- Picture Controls Quad screen view, false color filters, peaking, image flip, overscan, underscan, and screen markers
- Remote Control Not applicable
- Power Requirements 12 to 24 VDC
- Power Consumption Not specified by the manufacturer
- Operating Temperature -4 to 122°F (-20 to 50°C)
- Dimensions (WxHxD) 9.9 x 6.1 x 0.9" (252 x 157 x 25 mm)
- Weight 21.1 oz (600 g)
