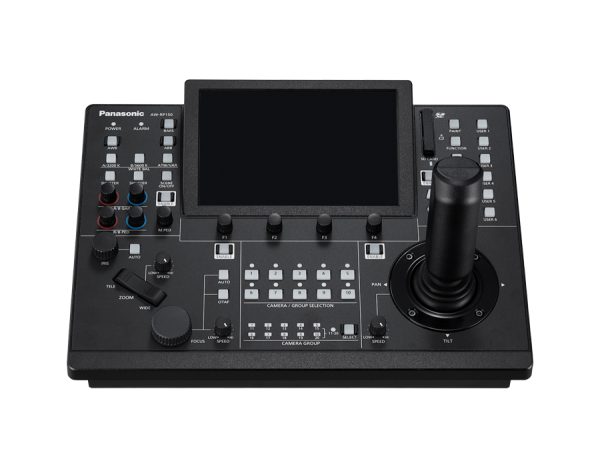

Panasonic AW-RP150GJ Remote Camera Controller

Overview:

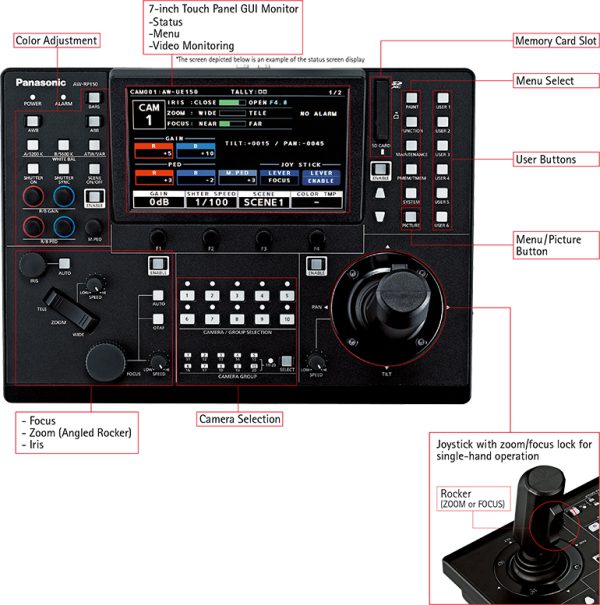

Panasonic AW-RP150GJ is a high-end remote camera controller built for advanced broadcast and live production workflows. It features a large 7-inch touch panel display, professional-grade joystick, and single-hand control for intuitive operation. Supporting IP and serial connections, the AW-RP150GJ can control up to 200 PTZ cameras with precision and flexibility, making it ideal for studios, live events, and multi-camera productions.

Key Features:

• 7-inch LCD touchscreen for intuitive menu navigation and real-time camera monitoring

• Professional joystick with zoom, focus, and pan/tilt control

• Supports IP and serial control for up to 200 cameras

• Scene file and preset management with trace memory

• PoE+ support for simplified setup and power management

• Customizable function buttons and assignable controls

• Tally, tally lamp, and audio monitoring support

• Designed for 4K and HDR production environments



  General
  Power Requirements	12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE+ power supply)
  Current Consumption	1.0 A (Connector Input), 0.6 A (PoE+ power supply)
  Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Allowable Humidity Ranges	10 % to 90 % (no condensation)
  Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
  Mass	Approx. 3.2 kg (7.05 lb)
  Dimensions (W x H x D)	342 mm x 178 mm x 245 mm (13-15/32 inches x 7 inches x 9-21/32 inches) (excluding protrusions)
  Input/Output Connectors
  Input	DC 12 V IN	XLR 4‑pin
  	3G-SDI IN	SMPTE424M/SMPTE292 / 75 Ω (BNC x 1) Supported formats: 1080/59.94p*2, 1080/50p*3, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
  Output	3G-SDI ACTIVE THRU OUT	SMPTE292 / 75 Ω (BNC x 1)
  Input/Output	IP CONT	100BASE‑TX PoE+ input Connection cable: LAN cable, max. 100 m (328 ft) • When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended • When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
  	SERIAL CONT (RJ‑45)	RS‑422 (control signals for remote cameras) Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
  	TALLY OUT	Open collector output (negative logic) Maximum voltage resistance DC 24 V, Maximum current 50 mA
  	TALLY/GPIO 1	D‑sub 25‑pin, female, inch thread TALLY IN : 10 inputs (for receiving photocoupler signals) GPI : 6 inputs (for receiving photocoupler signals) GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic) • Input/output switched with menu settings
  	GPIO 2	D‑sub 25‑pin, female, inch thread GPI : 10 inputs (for receiving photocoupler signals) GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic) • Input/output switched with menu settings Reserve connectors: 2 connectors (For future expansion feature)
  LCD Display	7-inch Touch Panel GUI Monitor (WVGA(800×480))
  SD Memory Card Slot	SDHC / SDXC Memory Card Slot x 1
  Connection Specifications
  No. of Connectable Cameras	200 (IP), 5 (RS422)
  No. of Camera Selection Buttons	10
  No. of Camera Groups	20 (10 units per 1 group)
  Memory
  Preset Memory	No. of memory presets 100
  Tracing Memory	No. of cameras	Cam1 to Cam10
  	Recording time, no. of memory settings	Maximum 5 min. total per camera, maximum of 10 settings per camera
  Other Functions
  No. of User Assignable Buttons	6 + up to 10 on the LCD menu
  Pan / Tilt Speed Adjustment	7 levels
  TALLY LED Display Color:	green / red
