Atomos Ninja Flame 7 นิ้ว 4K HDMI Recording Monitor
| หมวดหมู่ | จอมอนิเตอร์ Atomos |
| ราคา | 0.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 7 ธ.ค. 2560 |
| อัพเดทล่าสุด | 13 ก.พ. 2561 |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
- 1920 x 1200 Touchscreen Display
- 10-Bit FRC Monitor Processing
- 4K HDMI Input/Output
- 1500 cd/m² Brightness
- HDR Mode with 10-Stop Dynamic Range
- High Bright Mode for Rec. 709 Viewing
- UHD 4K up to 30p / 1080p up to 120 fps
- 10-Bit 4:2:2 ProRes & DNxHR Encoding
- Records to 2.5" SSD/HDD Media
- Dual Sony L-Series Battery Slots

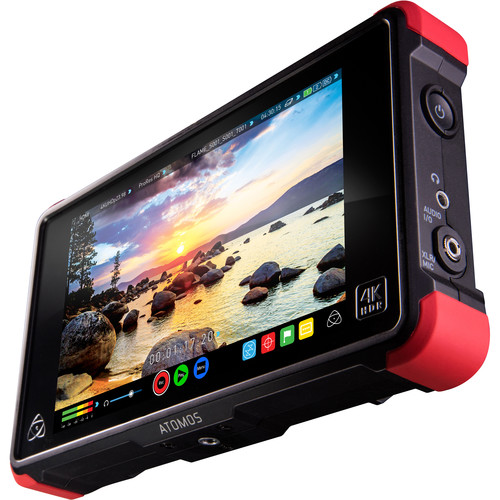

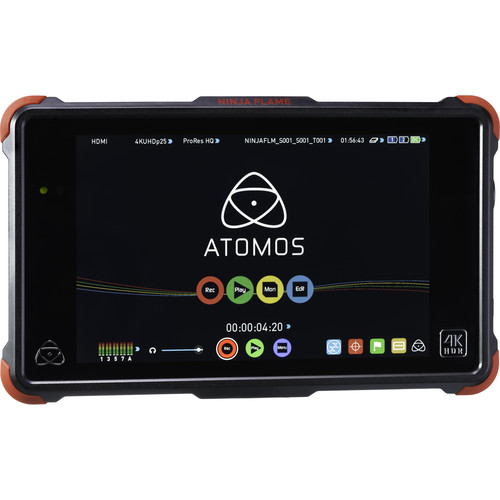

The Atomos Ninja Flame is a 7", 1920 x 1200 on-camera recording monitor combining 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage, as well as high-brightness viewing of Rec. 709 footage. It utilizes an HDMI input to support clean output signals at resolutions up to UHD 4K, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs.
The 10-bit panel and AtomHDR display technology support a brightness range of over 10 stops, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images, or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.

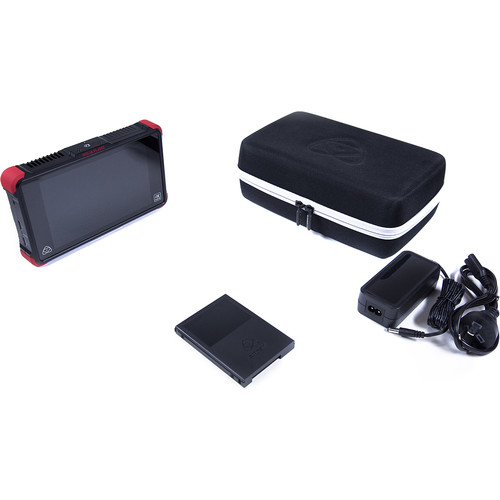

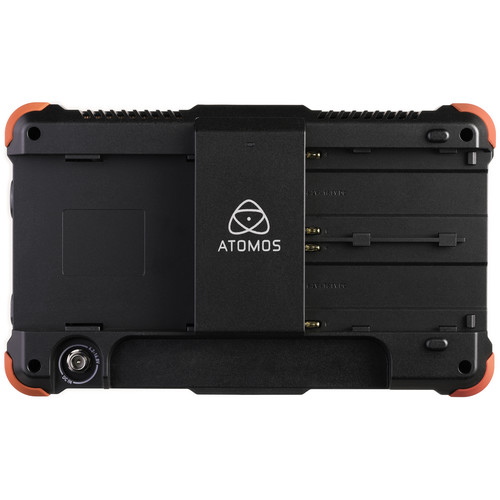

Built to withstand the rigors of production, the Ninja Flame features built-in protective armor with silicone-covered corners and chamfered edges. Compared to the original Ninja, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor features a 3.5mm microphone input, with on-screen audio level display. Additionally, the monitor features a variety of on-screen exposure analysis, framing, and focus assist tools. Included with the basic kit are a Master Caddy II 2.5" drive enclosure and an AC adapter power supply. A travel case for storing the monitor is also included to protect it during storage and transport.
Atomos ATOMNJAFL2 specs
Display
| Type | 7.1" (18 cm) IPS capacitive touchscreen |
| Resolution | 1920 x 1200 325 ppi |
| Bit Depth | 10-bit (8-bit plus FRC) |
| Video Aspect Ratio | Native: 16:9 |
| Brightness | 1500 cd/m² |
| LUT Support | 3D LUT (.cube file format) |
Interface
| Inputs | 1 x HDMI (1.4b) 1 x 2.5 mm LANC 1 x 3.5 mm stereo mini-jack (Mic / Line) |
| Outputs | 1 x HDMI (1.4b) loop-through output 1 x 3.5 mm headphone jack |
Supported Video Format
| Supported Signal | Input: 10 / 8-bit 4:2:2 (dependent on video source) Output: 10 / 8-bit 4:2:2 (dependent on video source) |
| Input/Output Resolutions | 2160p 24/25/30 1080p 24/25/30/50/60/120 1080i 50/60 720p 50/60 |
| Encoding Formats | UHD 4K (3840 x 2160): Apple ProRes HQ, 422, LT DNxHR HQX, HQ, SQ, LB 1920 x 1080: Apple ProRes HQ, 422, LT DNxHD 220x, 220, 145, 36 |
| Pulldown Conversion | 24/25/30PsF to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown) |
Supported Audio Formats
| HDMI | 2 or 8-channel, 24-bit (camera dependent) |
| Audio Input | 3.5 mm (Mic / Line in), 2-channel, 48 kHz, 24-bit |
| Audio Output | 3.5 mm headphone jack |
Remote Operation
| HDMI | Auto HDMI trigger Supported Protocols: Canon, Sony, Atomos Open Standard |
| LANC | Supports slave configuration |
Recording Media
| Supported Media | 4K: 2.5" SSD HD High Frame Rate (50/60/120p): 2.5" SSD 2.5" HDD (7200 rpm and up) for 1080p 50/60 HD (30p and Less): 2.5" SSD 2.5" HDD (5400 rpm and up) Note: Only use media that has been approved by Atomos |
| Master Caddy Dock | Interface: 2.5" SATA to USB 2.0/3.0 |
| Supported Applications | Final Cut Pro X/7+ Avid Media Composer 5.0+ Adobe Premiere 5.5+ Grass Valley EDIUS 6.0+ Sony Vegas Pro 10+ Lightworks Autodesk Smoke 2015 |
| XML Support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
General
| Power Requirements | 6.2 to 16.8 VDC (battery or DC power input) |
| Power Consumption | 10 to 24 W |
| Supported Battery Types | 2 x Sony L-Series type |
| Battery Life | 5200 mAh: Up to 1.5 hours (monitor and record 4K) 7800 mAh: Up to 2.2 hours (monitor and record 4K) |
| Construction | ABS polycarbonate |
| Dimensions | 8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm) |
| Weight | Without Batteries & Media: 1.4 lb (0.62 kg) With Batteries & Media: 2.3 lb (1.06 kg) |
Packaging Info
| Package Weight | 2.85 lb |
| Box Dimensions (LxWxH) | 10.0 x 6.693 x 4.331" |
