Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI
| หมวดหมู่ | จอมอนิเตอร์ Atomos |
| ราคา | 0.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 7 ธ.ค. 2560 |
| อัพเดทล่าสุด | 13 ก.พ. 2561 |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
- Atomos Shogun Studio 4K Recorder
- 1TB G-Technology Master Caddy 4K SSD
- G-Technology ev|Series Reader

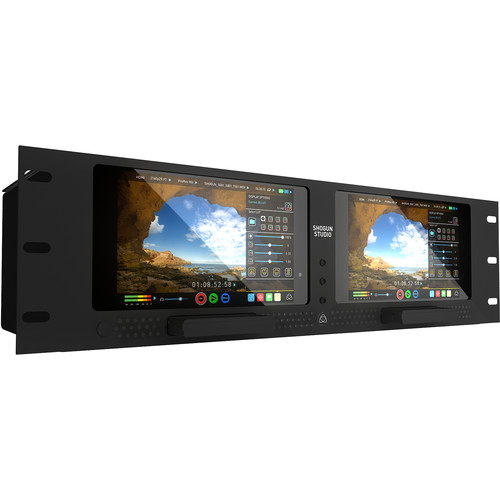

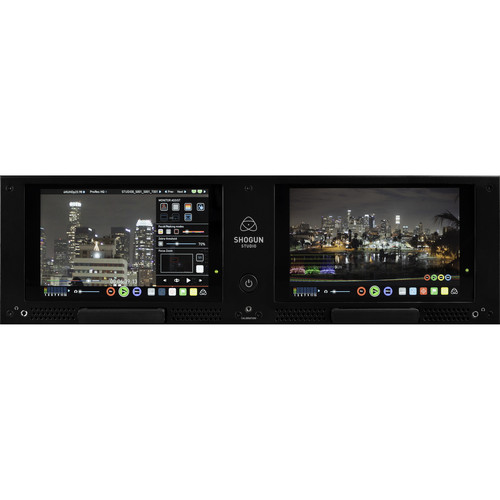

Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI
The Atomos Shogun Studio 4K Monitor / Recorder combines two color-calibrated 1920 x 1200 resolution displays with 4K video recording and edit-ready codecs in a 3RU chassis with removable rack mount ears. This configuration is well suited for live event, studio, and on-set DIT work. The Shogun Studio utilizes 4K HDMI and 12G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras. The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid's DNxHD format and UHD 4K video using Avid's DNxHR. Video is recorded to single or raided 2.5" HDD and SDDs for fast and reliable write speeds.
As a monitor, the Shogun features a 7" IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.
The Shogun Studio supports Tally function, custom 3D LUTs, Genlock In for multi-camera syncing. There are also a variety of onscreen tools to help you set up your shots, including a full waveform monitor, RGB parade display, vectorscope, focus peaking, and framing, focus, and exposure assisting tools. With two slots, one for each monitor, for a master recording caddy, you can simultaneously record the signal being fed to each monitor.
Atomos ATSGSK1 specs
Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI
Display
| Screen Size | Dual 7.1" capacitive touch panels |
| Resolution | 1920 x 1200 ppi: 323 |
| Screen Type | IPS LCD |
| Viewing Angle | 179° with 100% sRGB color accuracy |
| Color Gamut | 100% sRGB calibrated to Rec 709 with infinite 3D LUT conversion including BT-2020, DCI-P3 |
| Bit Depth | 8-bit |
| Brightness | 400 cdm² |
| Contrast Ratio | 800:1 |
| Tally Light | Front |
Monitoring
| LUT Support | 3D LUT in .CUBE format Internal Storage: 8 custom Luts Upload from External: Unlimited |
| LUT on Output | On screen On output Available to burn in to recorded clip |
Recording
| Modes | Pre Roll HD: 8 seconds 4K: 2 seconds 4K to HD Downscale Loop out and Playback Trigger & Timcode for Record LTC input and loop-through, SDI, HDMI, LANC, Timecode, Custom SDI Metadata Tagging Yes |
| Formats | 4K-DCI: 24/25/30p 4K-UHD: 24/25/30p, 1080p: 24/25/30/50/60/120 1080i: 50/60 720p: 50/60 |
| Codecs | ProRes HQ, 422, LT DNxHR - HQX, HQ, SQ, LB DNxHD - 220,145,36 HD Uncompressed V210 DNG Files |
| File Type / Wrapper | .MOV DNG |
| Pull Down | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| RAW Formats | C500 Sony FS AJA Arri to ProRes DNxHR DNG Uncompressed |
| Resolutions from RAW | 4K, UHD, HD: 120/60 |
| Simultaneous Recording | 4K ProRes & 2K/HD ProRes 4K DNxHR & 2K/HD DNxHD 4K RAW & 2K/HD RAW 2 x 4K/2K/HD ProRes, DNxHR/HD & RAW RAW to ProRes/DNxHR |
| Convert or Duplicate Files | 4K Avid to 4K ProRes 2K/HD Avid to 2K/HD ProRes 4K ProRes to 2K/ProRes 4K ProRes to 2K/HD Avid 4K Avid to 2K ProRes |
Inputs / Outputs
| Input | Per Monitor HDMI: 1x HDMI 1.4b up to 12-bit SDI: 1 x 12G/6G/3G/HD Timecode: LTC input and loop-through, SDI, HDMI, Internal REC Run, Time of Day, Auto Restart Genlock Genlock Input for Playout: Black Burst, Tri-Level Sync |
| Output | Per Monitor HDMI: 1 x HDMI (loop-through) SDI: 1 x 12G/6G/3G/HD (loop-through) Timecode: Loop-through, SDI, HDMI, Internal REC Run, Time of Day, Auto Restart |
Drive Specs
| Drive Slot | 2 channels |
| Drive Type | Qualified 2.5" drives supplied in Master Caddy |
| Drive Format | exFAT FAT 32 |
| Connections | SATA |
| Hot Swap Support | Yes (between channels) |
Interface
| Control Type | AtomOS Capacitive Multi-Touch |
| Front Panel Buttons | Power: 2x (one per monitor) Screen Lock: 2x (one per monitor) |
| Jog/Shuttle | On screen |
| RS422 Remote | Yes |
| Ethernet Control | Remote: Yes (AMP) |
| Scheduling | Yes: Rec / Play |
| Gang Control | Yes |
General
| Power | Dual Redundant Power Supplies: IEC c14 PSU FCC, CE, CCC UL, PSE (external Adaptor) |
| Operating Temperature | -22 to 104°F / -30 to 40°C |
| Rack Height | 3 RU |
| Dimensions | 19 x 5.2 x 8" / 482 x 132 x 202 mm |
| Weight | 8.2 lb / 3.7 kg |
Packaging Info
| Box Dimensions (LxWxH) | 21.1 x 15.3 x 9.8" |
G-Technology Atomos Master Caddy 4K (1TB)
| Capacity | 1 TB |
| Interface | SATA 6 Gb/s |
| Transfer Speed | Up to 500 MB/s |
| System Requirements | Mac OS 10.9 or later Windows 7 / 8.1 / 10 |
| Dimensions | 4.1 x 2.9 x 0.5" / 104 x 74 x 12 mm |
| Weight | 4.5 oz / 127 g |
