Sony PVMA250 25 นิ้ว Professional OLED Production Monitor

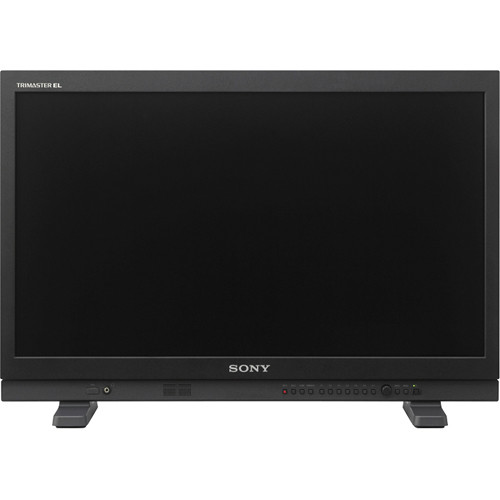

Sony PVMA250 25" Professional OLED Production Monitor

PRODUCT HIGHLIGHTS

- 24.5" Diagonal Screen Size

- 10-Bit OLED with 1920 x 1080 Resolution

- 3G-SDI, HDMI and Composite Inputs

- Loop-Out for Both SDI Inputs

- 89° Angle of View at > 10:1 Contrast

- Black Pixels Switch Off Completely

- OSD Waveform and Vector Scope

- Recessed Rear Connectors

- Serial and Parallel Remote Ports

- Portable Design with Built-In Handle

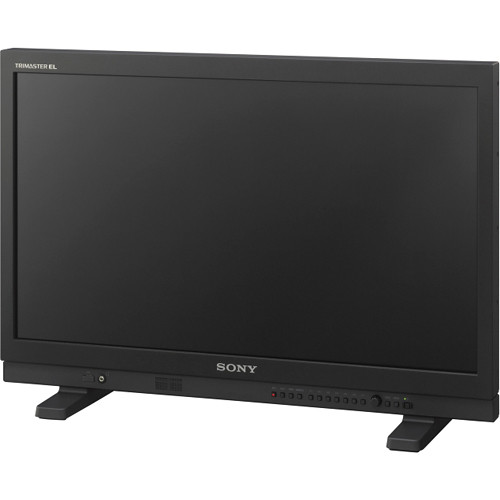

          The Sony PVMA250 25" Professional OLED Production Monitor is suitable for both field and studio use. It features a 24.5" diagonal OLED panel that has a native resolution of 1920 x 1080. Because of the OLED technology employed, each pixel can be switched completely off--unlike typical LCD displays--for a much closer approximation of true black. It can be connected to standard- and high-definition video sources via SDI or HDMI as well as analog standard-definition sources through composite.

           The PVMA250 features two SDI inputs with loop-out that support 3G-SDI, HD-SDI, and SD-SDI signals at resolutions up to 1080p60. In addition, 24 fps frame rates are supported, including 23.98p, 23.98Psf, 24p native, and 24Psf. It features an HDMI input that supports 1080p60, 24p, 23.98p, standard-definition, and a number of computer resolutions. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. A front panel 3.5mm headphone jack allows users to monitor embedded audio locally and there is also a 1W built-in speaker.

            Two Ethernet ports provide connectivity for serial and parallel remotes. Many third-party options can be used, as well as the Sony BKM-15R and BKM-16R. The monitor includes a removable desktop stand and is also compatible with standard VESA 100 x 100mm mounting hardware.

Display Features

Accurate Black Reproduction

Unlike many alternative display technologies, the OLED panel used in the PVMA250 features the ability to turn each pixel completely off so that no luminance signal is added to parts of the image recorded as black

Super Top Emission Technology

Designed to provide a wide color gamut with accurate color reproduction throughout the luminance range of the picture

Faster Response Time than LCD Panels

The gray-to-gray switching of the PVMA250 is faster than comparable LCD-based displays. This helps eliminate ghosting, motion blur (that is not naturally part of the scene), and other artifacts that reduce image quality

Wide Angle of View

Provides better off-axis viewing than many LCD-based alternatives, allowing users to accurately evaluate the image even if positioned off to the side. It features an 89° viewing angle in all directions while the contrast ratio remains above 10:1.

Low-Latency Image Processing

The PVMA250's I/P conversion system delivers automatically optimized signal processing according to the input signal format, with a latency of less than 0.5 fields. This helps ensure fast-moving images stay in sync with the audio

On-Screen Display (OSD)

Waveform Monitor and Vector Scope

Provides a built-in waveform and vector scope display so that users do not have to rely on dedicated equipment. Both displays can be magnified from 0 to 20% for detailed analysis, and within the waveform display the Line Select feature allows a specific portion of the image to be isolated. Level meters for two channels of embedded audio may also be displayed alongside the waveform or vector scope

Focus Assist with Color Peaking

An aperture level adjustment displays images with sharpened edges (peaking) to aid camera focus operation. In addition, the sharpened edges can be displayed in user-selectable colors (white, red, green, blue, and yellow) for increased visibility

Audio Level Indicator

Embedded audio levels can be displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected at once

Closed Captions

OSD can display EIA 608 and EIA 708 captions

Additional Displays

Additional OSD features include: a tally overlay, video format overlay, and an on-screen menu system

General Features

Emphasis on Portability

The PVMA250 is 40% slimmer than the previous generation and weighs in at 13.4 lb. In addition, a handle is built into the back to simplify transport

Recessed Connector Panel

The connectors do not protrude from the back of the monitor helping to ensure they will not be damaged during transport or if the monitor is laid flat
