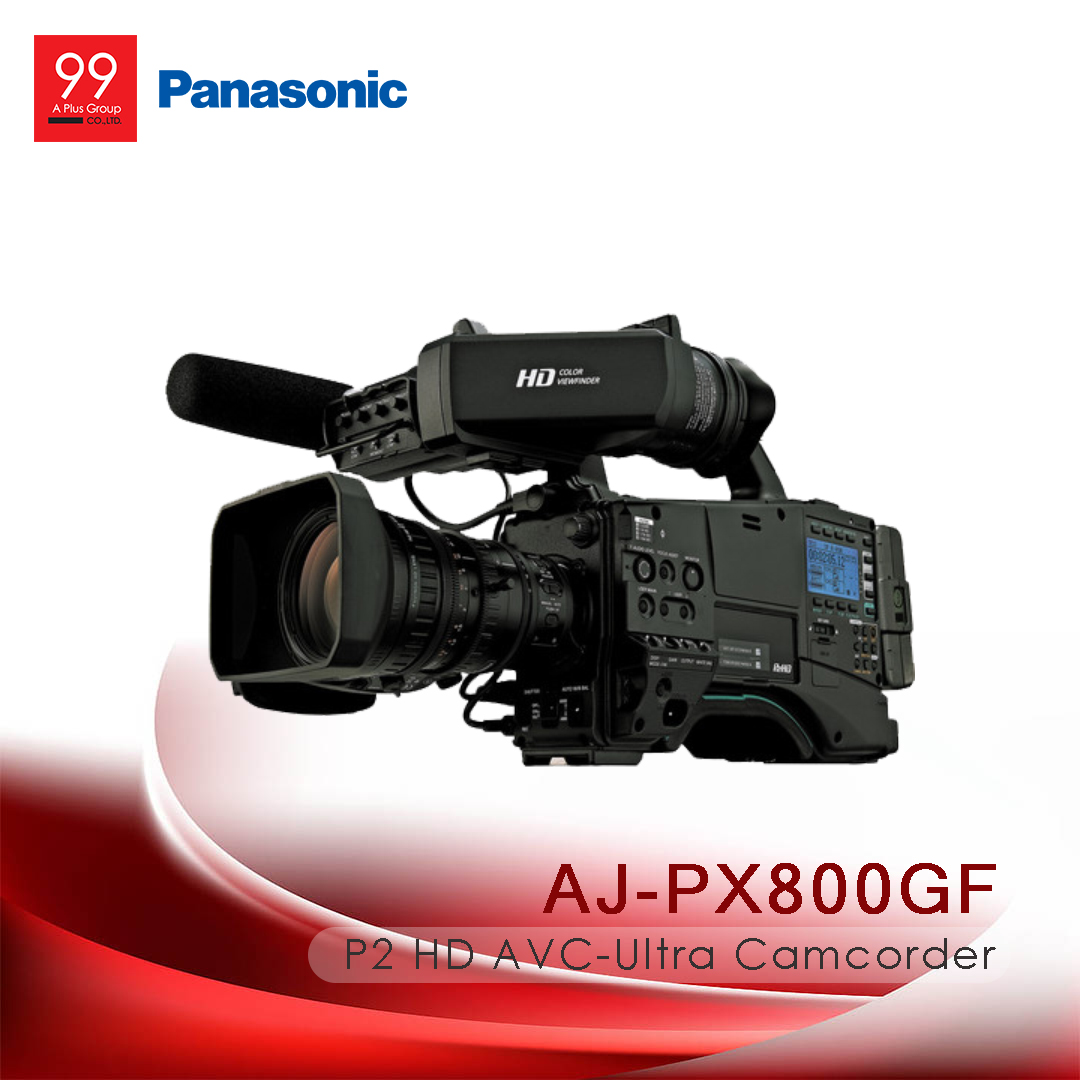

Panasonic AJ-PX800GF P2 HD AVC-Ultra Camcorder
Tags : "ขายกล้องวีดีโอ Panasonic", AJ-PX800GF, MOS, Image Sensor, Full-HD Camcorder, AJ-PX800GF ราคา, "ร้านขายกล้องวีดีโอ", พานาโซนิค AJ-PX800GF, panasonic AJ-PX800GF ราคา, aj-px800, ag-px800gf ราคา, panasonic ราคา 800gf, 800g camera, camera panasonic, panasonic camera 800g, pana camcorder, p2 camera, pana p2 camera, camera P2 card, กล้อง พานาโซนิค การ์ด P2, Panasonic AJ-PX800GF P2 HD Camcorder, Panasonic AJ-PX800GF, P2 HD Camcorder, P2 HD, Camcorder aj-PX800, pana 800gf, panasonic PX800GF, panasonic PX800 ราคา
รายละเอียดสินค้า
Panasonic AJ-PX800GF P2 HD AVC-Ultra Camcorder
- Three 2/3" MOS Sensors 2.2 MP Resolution
- Full HD 1920x1080 up to 59.94p
- AVCUltra Recording & Simultaneous Proxy
- Dual P2 Slots, Single SD Card Slot
- HD-SDI HDMI & Monitor Output
- Genlock In, Timecode In/Out
- LAN Network Functions
- USB Slot for Optional WiFi/4G/LTE Dongle
- Includes Viewfinder
- Includes Fujinon 16X Zoom Lens
Introducing the AJ-PX800; a new 2/3-inch; three-chip shoulder-mount camcorder with AVC-ULTRA recording. Weighing a little over 6 pounds; the PX800 is the industry's lightest camcorder in its class. Delivering the trifecta of low weight; low power consumption and affordability; the PX800 is ideal for virtually all broadcasting needs as well as sports or live events. Built-in network functions support wired LAN; wireless LAN and 4G/LTE connections; enabling on-site preview; streaming and uploading data to a server quickly and easily at low cost with a PC/Mac; tablet or smartphone; or users can connect to the camera via WiFi to control; add or edit metadata; view proxies; or watch live streaming for logging or monitoring.
Panasonic's multi-codec AVC-ULTRA offers master-quality and/or low-bit-rate 10-bit; 4:2:2 recording in full raster HD to meet a variety of user needs from mastering to transmission. Addressing the need for high-speed file exchange; its high-resolution AVC-Proxy encodes in parallel with higher bandwidth production formats; enabling fast; efficient offline editing; at bit rates from 6 megabits down to 800 kilobits per second.
The PX800 records in AVC-LongG to provide on-air content direct from the shooting location and for workflows using content transferred over the internet. The camera offers three AVC-LongG bit rates: AVC-LongG50/25 providing10 bit/4:2:2 quality at bit rates of approximately 50/25 Mbps; and the more economical AVC-LongG12; which is optimized for field wireless workflows.
The PX800's compact body provides superb mobility; along with low power consumption of 22W. The 2.2 megapixel 2/3 type 3MOS (RGB) image sensors offer full-pixel HD (1920 x1080) resolution; F12 (59.94 Hz) or F13 (50 Hz) sensitivity and low noise with an S/N of 62 dB (with DNR ON). It also achieves rich gradation and vibrant color reproduction. The shoulder-type design allows the use of a variety of interchangeable B4 mount 2/3-inch lenses.
The PX800 can record in AVC-Intra100/50 (1080/60i; 50i; 30p; 25p; 24p and 720/60p;50p; 30p; 25p; 24p); DVCPRO HD; DVCPRO50; DVCPRO and DV; and is 50 Hz and 59.94 Hz switchable for worldwide use. The camcorder will be equipped with Chromatic Aberration Compensation (CAC) to maximize lens performance; Dynamic Range Stretch (DRS) function to help compensate for wide variations in lighting; a highly accurate flash band detection and compensation algorithm that minimizes this effect; and a 12 + 3 skin tone Axis Matrix Control. The PX800 delivers seven-mode gamma selection and extensive digital image settings; there are two P2 card slots (microP2 cards can be used with an adaptor) and an SD card slot for proxy/metadata recording.
Professional interfaces include MON out (can be set to output HD-SDI); HDMI out; HD/SD-SDI in/out; genlock in for multi-camera operation; timecode in/out; USB 2.0 (Host and Device) and a two-channel UniSlot compatible wireless receiver.
Innovative features include a smart user interface that permits accessibility to the camera's extensive functions from an LCD display on the side of the camera; an (optional) 16:9; 3.45-inch; 920;000-dot resolution LCD color viewfinder; which doubles as a LCD monitor when open; a simplified waveform and vectorscope; a 10-pin remote terminal enabling remote camera operation; and an optional camera studio system.
Audio capabilities include two XLR audio inputs; and recording up to four channels of 48kHz; 24-bit audio in AVC-Intra formats (16-bit in AVC-LongG; DVCPRO HD; DVCPRO and DV).
Standard features include Scan Reverse for use with a cinema lens adaptor; Digital Zoom function for 2x; 3x and 4x magnification; Presettable Shutter Speed from 1/12 to 1/2000 sec plus fully variable Synchro Scan; and a four-position (CLEAR; 1/4 ND; 1/16 ND; 1/64 ND) optical neutral density filter wheel.
The world's lightest*1 2/3 type shoulder-type HD camera-recorder
with three image sensors revolutionizes newsgathering
with high mobility, superb picture quality and network functions.
The AJ-PX800G is a new-generation camera-recorder for newsgathering. It is network connectable and provides superb picture quality, high mobility and excellent costperformance. Weighing only about 2.8 kg (main unit), the AJ-PX800G is the world's lightest*1 shoulder-type camera-recorder equipped with three MOS image sensors for broadcasting applications. It also supports AVC-ULTRA multi-codec recording.*2 The picture quality and recorded data rate can be selected from one of the AVC-ULTRA family of codec’s (AVC-Intra/AVC-LongG) according to the application. Along with a Low-rate AVC-Proxy dual-codec recording ideal for network-based operation and off-line editing. Built-in network functions support wired LAN, wireless LAN** and 4G/LTE network connections,** enabling on-site preview, uploading data to a server and streaming. The AJ-PX800G is a single-package solution for virtually all broadcasting needs.
**: For details, refer to "Notes Regarding Network Functions".
*1: For a 2/3-type shoulder-type HD camera-recorder with three sensors (as of June 2015).
*2: Not all AVC-ULTRA formats will be supported.
The use of DCF Technologies is under license from Multi-Format, Inc.
Innovating Workflows with Network Functions** and AVC-ULTRA Codecs
Acquisition ⇒ Automatic Uploading
Recorded clips (proxy or actual files) are uploaded directly from the AJ-PX800G to a network. The new Rec During Upload function automatically uploads files to a network server in the background while recording.
Full-HD Streaming
On-air streaming (via the internet) is possible while recording mainstream video onto a memory card, using only the AJ-PX800G. This QoS (Quality of service) mode allows proxy images in Full-HD resolution to be streamed at a low bit rate by optimizing the bit rate to match the network condition.
Preview and Remote
P2 ROP APPWireless connection is supported via a wireless LAN. Clips recorded by a PC/Mac, tablet device or smartphone can be previewed and metadata can be checked and edited. P2 ROP App for iPad is also provided for multifunctional camera remote operation.
Cloud Solution
Even smoother operation is possible by using a cloud service. Proxy files that are automatically uploaded to a cloud server can be edited (remote playlist editing) from a network, and only the necessary data can be sent from the AJ-PX800G to an ingest server.
· P2 Cast: P2 Cast is the cloud service Panasonic provides for broadcast and production use.
**: For details, refer to "Notes Regarding Network Functions".
The use of DCF Technologies is under license from Multi-Format, Inc.
· Apple App Store and iPad are service marks or trademarks of Apple Inc. registered in the United States and other countries.
Linking with LiveU or TVU bonding services offers
faster and more stable live streaming and FTP transfers.
IP connection (wired or wireless) with LiveU or TVU Networks devices enables parallel use (bonding) of multiple cell phone lines. Live streaming with the QoS mode gets a higher bit rate and more stable quality. And FTP transfers using a Rec During Uploading function gets also faster transfer speed and better stability to achieve a faster overall workflow. In addition, the status of the LiveU or TVU device is displayed in the camera's viewfinder to allow easy confirmation of the network connection conditions.
Combined with Panasonic's P2 Streaming Server (P2SS) and P2Cast, this produces a comprehensive solution for a variety of broadcast needs.
P2 Live Streaming/P2Cast Cloud Workflow with Bonding Devices
Viewfinder Displays of the Connection Conditions (marked in red)
* An example of AJ-PX5000G.
Panasonic AJ-PX800 Specs
Camcorder Body
Image Sensor 3 x 2/3" 2.2MP MOS sensors
Effective resolution: 2.2MP
Horizontal Resolution Minimum 1000 TV Lines at Center
Lens Mount System 2/3" Bayonet
Sensitivity NORMAL
1080/59.94i: F9 (2000 lx, 3200 K, 89.9% reflection)
1080/50i: F10 (2000 lx, 3200 K, 89.9% reflection)
HIGH SENS
1080/59.94i: F12 (2000 lx, 3200 K, 89.9% reflection)
1080/50i: F13 (2000 lx, 3200 K, 89.9% reflection)
Minimum Subject Illumination Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB (S.GAIN))
S/N Ratio Image
62 dB (standard)
Shutter Speed 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
30p mode: 1/30 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
24p mode: 1/24 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
50i/50p mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
25p mode: 1/25 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
Synchro Scan 60i/60p mode: 1/60.0 to 1/250.0
30p mode: 1/30.0 to 1/250.0
24p mode: 1/24.0 to 1/250.0
50i/50p mode: 1/50.0 to 1/250.0
25p mode: 1/25.0 to 1/250.0
Slow Shutter Speed 60i/60p mode: 1/15, 1/30
30p mode: 1/15
24p mode: 1/12
50i/50p mode: 1/12.5, 1/12.5
25p mode: 1/12.5
Shutter Opening Angle 3.0 to 360.0° (in 0.5° steps)
Gain NORMAL
-3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB
HIGH SENS
-6. -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB
Super Gain
30, 36, 42 dB
ND Filters Clear, 1/4, 1/16, 1/64
LCD Display 4.3", 1.15MP
Viewfinder 0.45", 1.22MP
Recording
Recording Media 2 x P2 Card
Video Codecs MPEG-2 Long GOP (HD)
AVCHD progressive
H.264
File Formats MOV (HD/SD/Web)
MP4 (XDCAM EX)
MTS (AVCHD progressive)
MXF
Recording Modes NTSC Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /59.94i/29.97p/23.98p
1440 x 1080 /59.94i
1280 x 720 /59.94p/29.97p/23.98p
SP Mode:
1440 x 1080 /59.94i
1280 x 720 /59.94p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /59.94p
HQ mode (24 Mbps): 1920 x 1080 /59.94i
SP mode (17 Mbps): 1920 x 1080 /59.94i
LP mode (9 Mbps): 1440 x 1080 /59.94i
EP mode (5 Mbps): 1440 x 1080 /59.94i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /59.94p/59.94i/29.97p/23.98p
UHQ mode (35 Mbps): 1920 x 1080 /59.94i/29.97p/23.98p
H.264 (SD)
720 x 480 /59.94
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /29.97p/23.98p
LP mode (1.2 Mbps): 480 x 270 /29.97p/23.98p
PAL Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /50i/25p/2p
1440 x 1080 /50i
1280 x 720 /50p
SP Mode:
1440 x 1080 /50i
1280 x 720 /50p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /50p
HQ mode (24 Mbps): 1920 x 1080 /50i
SP mode (17 Mbps): 1920 x 1080 /50i
LP mode (9 Mbps): 1440 x 1080 /50i
EP mode (5 Mbps): 1440 x 1080 /50i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /50p/50i/25p
UHQ mode (35 Mbps): 1920 x 1080 /50i/25p
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /25p
LP mode (1.2 Mbps): 480 x 270 /25p
Sampling Frequency AVC-Intra100/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)
DVCPRO50
Y: 13.5 MHz, PB/PR:6.75 MHz
DVCPRO
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing 10 bit: AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25
8 bit: AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV
Proxy Video Compression Format
H.264/AVC Baseline Profile, H.264/AVC High Profile
Audio Compression Format
AAC-LC, Linear PCM
Approximate Recording Times per GB
AVC-G6 2CH MOV: Approx. 13 min
SHQ 2CH MOV: Approx. 25 min
HQ 2CH MOV: Approx. 78 min
LOW 2CH MOV: Approx. 135 min
Audio Recording AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH switch
AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4CH
AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4CH
Headroom Audio: 18 dB/20 dB (switchable with menu)
Interface
Inputs/Outputs Video
Genlock In
1 x BNC (1.0 V [p-p], 75 Ω)
Timecode In/Out Switchable
In: 1 x BNC (0.5 V [p-p] to 8 V [p-p], 10 kΩ)
Out: 2.0 ±0.5 V [p-p], Low impedance
SDI In/Out
SD/HD-SDI: 1 x BNC 0.8 V [p-p], 75 Ω (Input is an Option and not included)
HDMI
Out: 1 x HDMI type A terminal (not compatible with VIERA Link)
Monitor Out
Switchable to SD/HD-SDI/analog compsite on Smart UI
1.5 G HD-SDI: 0.8 V [p-p], 75 Ω
SD SDI: 0.8 V [p-p], 75 Ω
Composite: 1.0 V [p-p], 75 Ω
Audio
In: 2 x 3-pin XLR (Line / Mic switch selectable) +48 V supported (selectable menu) −40 dBu/−50 dBu/−60 dBu (selectable menu)
Out: 2 x RCA jack (channel 1, channel 2, Output level: 600 Ω, 316 mV)
Wireless
In: 25 pin, D-SUB, −40 dBu, 2CH supported
Headphones
1 x 3.5 mm stereo mini jack
Speaker
1 x Round 20 mm diameter
DC
In: 1 x 4-pin XLR DC 12 V (DC 11.0 V to 17.0 V)
Out: 1 x 4-pin XLR DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
Remote
10-pin
Lens
12-pin
VF
20-pin
LAN
1 x RJ-45 100BASE-TX/10BASE-T
USB
USB2.0 (host): Type A connector, 4 pin
USB2.0 (device): Type B connector, 4 pin
USB2.0 (sub host): Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
General
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 35 to 80%
Storage Temperature 14 to 122°F (-20 to 50°C)
Storage Humidity Under 85%
Power 12 VDC (10.5 to 17V)
Power Consumption Approx. 28 W
Dimension L x W x H 20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3 mm)
Weight Without Battery: Approx. 8.9 lb (4.0 kg)
With battery: Approx. 10.6 lb (4.8 kg)
Lens
Zoom Ratio: 16x
Packaging Info
Package Weight 20.5 lb
Box Dimensions (LxWxH) 23.0 x 19.3 x 15.5"
