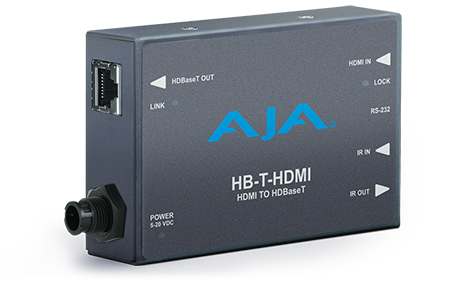

AJA HB-T-HDMI HDMI to HDBaseT
| หมวดหมู่ | MINI CONVERTER HD-BASE T |
| ราคา | 17,775.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 26 ธ.ค. 2560 |
| อัพเดทล่าสุด | 26 ธ.ค. 2560 |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
- HDBaseT certified 4K/UltraHD signal extender
- Converts UltraHD, 4K or HD HDMI to HDBaseT
- Extend uncompressed 4K or HD HDMI signal up to 100m over Cat 5 (or better) cable
- Wide support for VESA (Computer) formats and DVI compatibility (with adapter)
- IR IN and OUT
- RS-232 device control connection
Tech Specs
Video Formats*
• (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
• (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
• (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
• (HD) 1080i 25, 29.97
• (HD) 720p 25, 29.97, 50, 59.94, 60
• (SD) 625i
• (SD) 525i
NOTE: Wide range of VESA formats supported for pass through see associated chart on VESA formats
Video Input
• HDMI 1.4b
Video Output
• HDBaseT (RJ-45)
• CAT 5e 70m (230 ft) or CAT 6a 100m (328 ft)
• 4K/UltraHD signals require Cat 6a to achieve 100m cable run (HD signals can run the full 100m on Category 5e cable)
Video Displays
HDBaseT Cable Run Performance for 4K/UltraHD/HD
| W x H | Frame Rate | Color Sampling |
Max. Cable Length | Max. Bit Depth |
|
|---|---|---|---|---|---|
| Cat 5e/6 | Cat 6a/7 | ||||
| 1920 x 1080 | < 30 fps | 4:2:2 | 100 meters | 100 meters | 16-bit |
| > 30 fps | 4:2:2 | 100 meters | 100 meters | 12-bit | |
| 4:2:2 | 70 meters | 100 meters | 16-bit | ||
| 2048 x 1080 | < 30 fps | 4:2:2 | 100 meters | 100 meters | 16-bit |
| > 30 fps | 4:2:2 | 100 meters | 100 meters | 12-bit | |
| 4:2:2 | 70 meters | 100 meters | 16-bit | ||
| 3840 x 2160 | < 30 fps | 4:4:4 | 70 meters | 100 meters | 8-bit |
| > 30 fps | 4:2:0 | 70 meters | 100 meters | 8-bit | |
| 4096 x 2160 | < 30 fps | 4:4:4 | 70 meters | 100 meters | 8-bit |
| > 30 fps | 4:2:0 | 70 meters | 100 meters | 8-bit |
|
VESA Displays
VESA Display Resolutions and Performance
| W x H | Frame Rate | Color Sampling |
Max. Cable Length | Bits Per Pixel |
|
|---|---|---|---|---|---|
| Cat 5e/6 | Cat 6a/7 | ||||
| 640 x 480 | to 85 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 800 x 600 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1024 x 768 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1152 x 768 | - | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1280 x 768 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1280 x 800 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1280 x 1024 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1360 x 768 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1366 x 768 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1400 x 1050 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1440 x 900 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1600 x 1200 | to 75 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 85 to 120 fps | 4:2:0 | 70 meters | 100 meters | 24-bits | |
| 1680 x 1050 | to 85 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 120 fps | 4:4:4 | 70 meters | 100 meters | 24-bits | |
| 1920 x 1200 | to 120 fps | 4:4:4 | 100 meters | 100 meters | 24-bits |
| 1920 x 1440 | to 60 fps | 4:4:4 | 70 meters | 100 meters | 24-bits |
| 2560 x 1600 | 60_RB | 4:4:4 | 70 meters | 100 meters | 24-bits |
Audio Input
• 8-Channels (4 pairs) of embedded audio supported
• Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
Audio Output
• HDBaseT embedded audio
RS-232
• 1 x 3.5mm TRS Input for RS-232/VISCA bidirectional signals
IR
• 1 x 3.5mm TRS Input for IR Input
• 1 x 3.5mm TRS Input for IR Output
Size (w x d x h)
• 4.25” x 3.125” x 1.0” (108mm x 79.4mm x 25mm)
Weight
• 0.4 lbs (0.2 kg)
Power
• +5 to 20V DC regulated, 6 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
