Blackmagic Design Multidock 2
Blackmagic Design Multidock 2 Overview

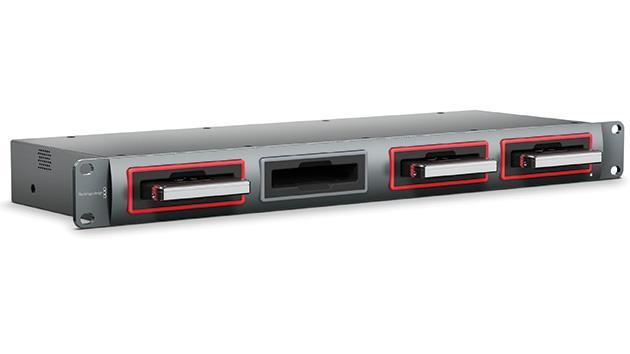

The MultiDock 2 from Blackmagic Design is a rack-mountable four disk docking station for Thunderbolt and Thunderbolt 2 based computers. Housed in a compact 1U rackmountable chassis, it supports up to four 2.5" SATA SSDs or HDDs and features a single rear-mounted Thunderbolt 2 connection for data speeds up to 20 Gb/s. You can even stripe multiple disks together into a single fast storage volume, ideal for 4K editing, effects, and color correction work. A loop-through Thunderbolt port is provided, which lets you daisy chain up to five additional Thunderbolt devices and connect them to your computer via a single Thunderbolt cable. A software CD with disk utility software comes included.

PRODUCT HIGHLIGHTS Blackmagic Design Multidock 2
- 4 Disk Docking Station
- Supports 2.5" SATA SSDs & HDDs
- Thunderbolt 2 Interface
- Edit Directly from Disks
- Supports Multi-Disk RAID Storage
- Illuminated Disk Access Indicators
- 1RU Rack Mount Chassis
- Built-In Power Supply
- User Replaceable Socket Connector Boards

Blackmagic Design Multidock 2 Specs
SSD Interface |
4 x 2.5" SATA 3, 6 Gb/s |
Computer Interface |
2 x Thunderbolt 2 ports |
Power |
1 x IEC Power Connection, 110 to 240 VAC |
Operating Temperature |
41 to 122°F (5 to 50°C) |
Storage Temperature |
-4 to 113°F (-20 to 45°C) |
Relative Humidity |
0 to 90%, non-condensing |
Rack Height |
1 RU |
Dimensions (W x H x D) |
18.98 x 1.75 x 5.82" (48.21 x 4.45 x 14.78 cm) |
Weight |
4.25 lb (1.93 kg) |
