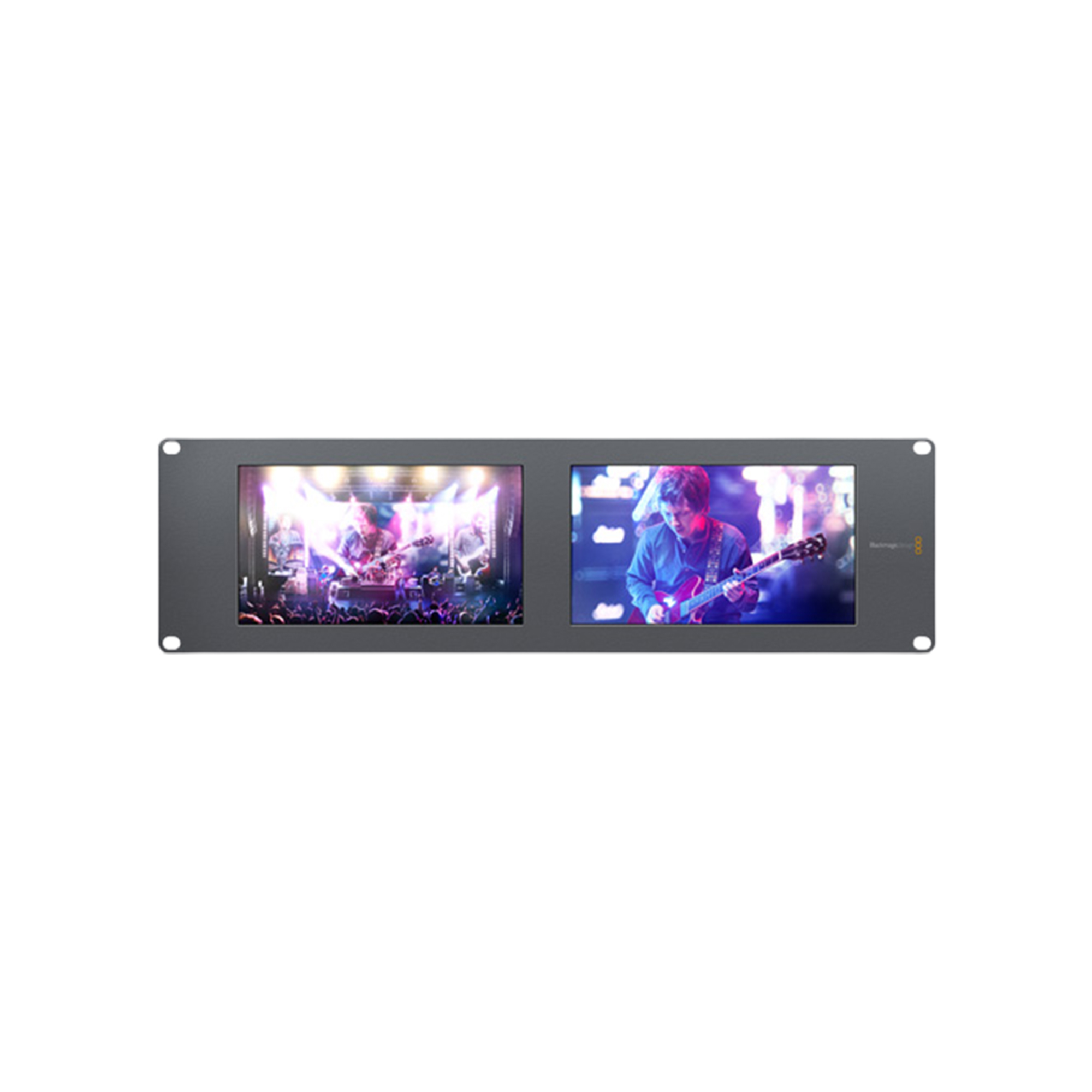

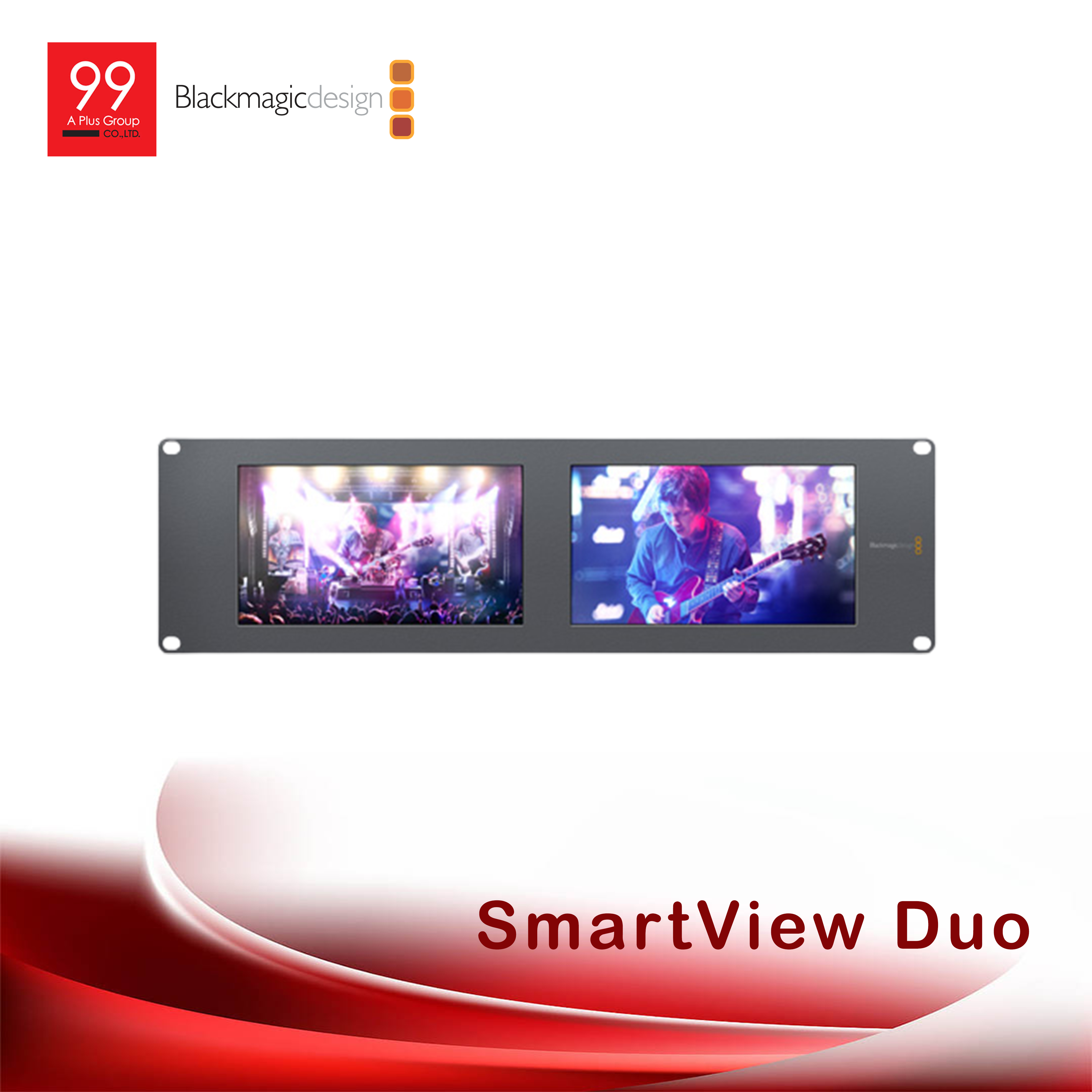

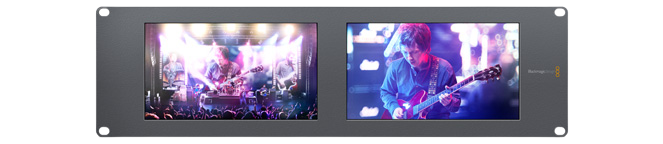

Blackmagic SmartView Duo

Description


Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!

Connections

SDI Video Input

Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.

Multi Rate Support

Auto detection of 2K, HD or standard definition inputs.

Updates and Configuration

Via USB 2.0 high speed (480 Mb/s)

Ethernet

10/100 BaseT with loop through.

Tally

9-pin D connector

SmartView Duo

Standards

SDI Compliance

SMPTE 259MSMPTE 292MSMPTE 296MSMPTE 372MSMPTE 424M Level B and SMPTE 425M.

SDI Color Space

REC 601REC 709

SDI Auto Switching

Automatically selects between SD, HD and 3 Gb/s SDI.

Video Sampling

4:2:2 and 4:4:4

SDI Format Support

525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Format Support

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Software

Internal Software Upgrade

Via included firmware updater software.

SmartView Utility Software

Via USB or Ethernet.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Display

Display Element

TFT Active Matrix LCD.

Display Resolution

800 x 480 pixels

Response

< 15 ms

Contrast Ratio

Typically 500:1

Color Depth

16.7 Million Colors.

Display Orientation

Displays can rotate upside down for optimum viewing angle.

Power Requirements

Power Supply

12V universal power supply included with international socket adapters for all countries.

Power Consumption

< 20 Watts

Operational Voltage Range

12V - 15V

Physical Specifications

SmartView Duo

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

SmartView Duo

Power Supply

Welcome wallet with QR code for software download
