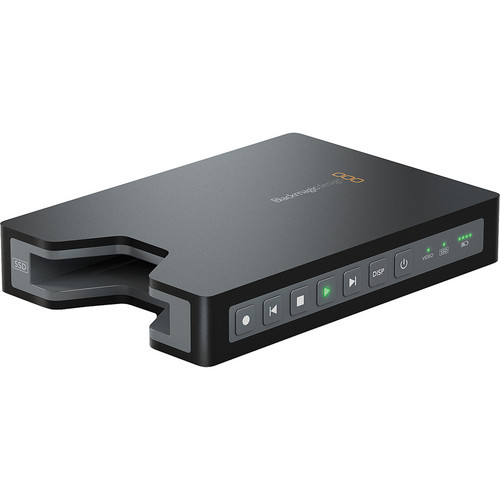

Blackmagic Design HyperDeck Shuttle 2 Overview
The Blackmagic Design HyperDeck Shuttle 2 SSD Video Recorder records uncompressed 10-bit HD and SD video as QuickTime files from any SDI- or HDMI-enabled camcorder. This updated version of the original HyperDeck Shuttle also records Avid's DNxHD 220x 10-bit and ProRes HQ codecs. The extremely compact recorder accepts a 2.5" SATA solid state drive (sold separately) for data storage. Simply by bypassing the camera's compression, this allows you to get the highest-quality output possible from camcorders that typically record video as highly compressed HDV, AVCHD, or another similar codec.
With its uncompressed recording capability, HyperDeck Shuttle 2 shines on those projects for which even high-bit-rate ProRes and DNxHD codecs are too compressed for your needs. Perhaps you're shooting against a green screen and you'll need to be able to pull the cleanest key possible in post, or you're capturing background plates for special effects. Whatever the application, capturing to a supremely portable device with interchangeable media (which, with each succeeding generation, will grow in capacity as prices drop) is about the most elegant solution imaginable for recording uncompressed 4:2:2 HD video.
PRODUCT HIGHLIGHTS Blackmagic Design HyperDeck Shuttle 2
- Most 2.5" SATA SSD Drives Supported
- Record Avid DNxHD 200x 10-Bit Codec
- Record ProRes HQ
- Record Uncompressed HD QuickTime Files
- HD-SDI I/O; HDMI 1.3 Input and Playback
- Internal Rechargeable Battery
- 12V Power Input
- Simple Front-Panel Playback Controls
- Machined Aircraft-Grade Aluminum
Blackmagic Design HyperDeck Shuttle 2 SPECS
Video Inputs |
1x 10-bit HD/SD-SDI switchable via DIN 1.0/2.3 connector 1x HDMI type A connector |
Video Outputs |
1x 10-bit HD/SD-SDI switchable via DIN 1.0/2.3 connector 1x HDMI 1.3 type A connector |
Audio Inputs |
SDI: 16 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files. HDMI: 8 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files. |
Audio Outputs |
SDI: 16 channels embedded in SD and HD in QuickTime files / 2 channels in Avid DNxHD MXF files. HDMI: 2 channels embedded in SD and HD |
SSD Interface |
1x 2.5" SATA 3 Gb/s |
Recorder Control |
7 buttons for local control of HyperDeck Shuttle 2, or use USB 2.0 high-speed interface |
Recorder Configuration |
Use USB 2.0 high speed interface |
Computer Interface |
1x Mini-B type USB 2.0 connector for initial setup, software updates, and HyperDeck Utility software control |
