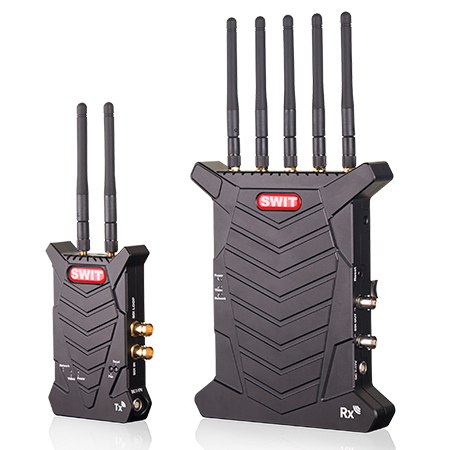

SWIT CW-S300 SDI Wireless System 300m

• Technical Description

Pair the Transmitter and Receiver

The CW-S300 wireless transmitter and receiver are already paired in factory. You can directly use without re-pair.

But if you have several units and mixed up the transmitters and receivers, or if you need to do multi-cast, you need to re-pair by yourself. Pairing steps:
(1) CW-S300 Transmitter powered on, and SDI in connected with camera or video source device.
(2) CW-S300 Receiver powered on, and SDI out connected with a monitor. The monitor will display “Searching for Camera Unit” then.
(3) Press and hold the Pair button on Receiver, till the monitor displays “Please Press Registration Button on Camera Unit”, release the Receiver Pair button.
(4) Press and hold the Pair button on Transmitter, till the monitor displays “Registration in Progress”, release the Transmitter Pair button.
(5) When progress bar finished, the Transmitter and Receiver are paired successfully.

How to Get the Best Effect of Wireless Transmission

(1) Set the Transmitter and Receiver antennas straight up, even if they are laid down installed.
(2) Set the Receiver as high as possible.
(3) Avoid walls, trees, water and any blockage as best as you can.

How to Use Several Sets in One Location

There’re 0-9 frequency channels that can be dial switch by users, frequency details are:

User several wireless channels at one location, to avoid interference, please set the frequency bands far away from each other.

Specification

Standard Package

 CW-S300 standard package includes:
1x Transmitter (Various DV plates types option)
1x Receiver (V-mount or Gold mount option)
9x Antennas (2 for Transmitter, 5 for Receiver and 2 for back-up)
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to 4-pin LEMO DC cable – 0.6m
1x D-tap to 4-pin LEMO DC cable – 1m
1x AC-DC adaptor
1x Carrying case (for everything)
