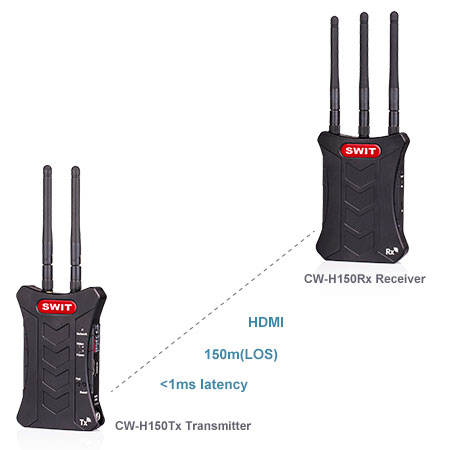

Swit CW-H150 HDMI wireless Transmission system

รายละเอียดสินค้า

Pair the Transmitter and Receiver

The CW-H150 wireless transmitter and receiver are already paired in factory. You can directly use without re-pair.
But if you have several units and mixed up the transmitters and receivers, or if you need to do multi-cast, you need to re-pair by yourself. Pairing steps:
(1) CW-H150 Transmitter powered on, and HDMI in connected with camera or video source device.
(2) CW-H150 Receiver powered on, and HDMI out connected with a monitor. The monitor will display “Searching for Camera Unit” then.

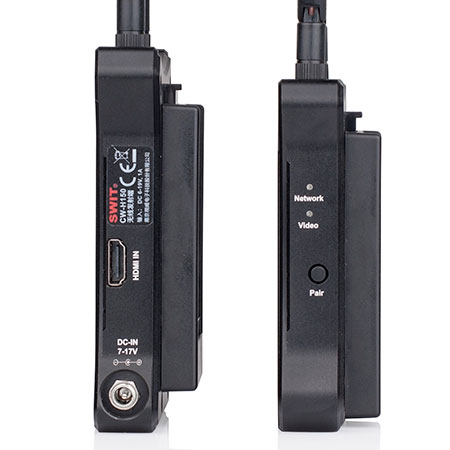

(3) Press and hold the Pair button on Receiver, till the monitor displays “Please Press Registration Button on Camera Unit”, release the Receiver Pair button.
(4) Press and hold the Pair button on Transmitter, till the monitor displays “Registration in Progress”, release the Transmitter Pair button.
(5) When progress bar finished, the Transmitter and Receiver are paired successfully.

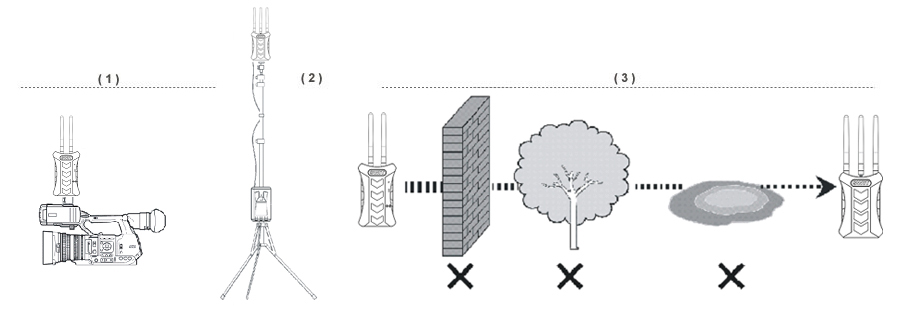

How to Get the Best Effect of Wireless Transmission

(1) Set the Transmitter and Receiver antennas straight up, even if they are laid down installed.
(2) Set the Receiver as high as possible.
(3) Avoid walls, trees, water and any blockage as best as you can.

Specification

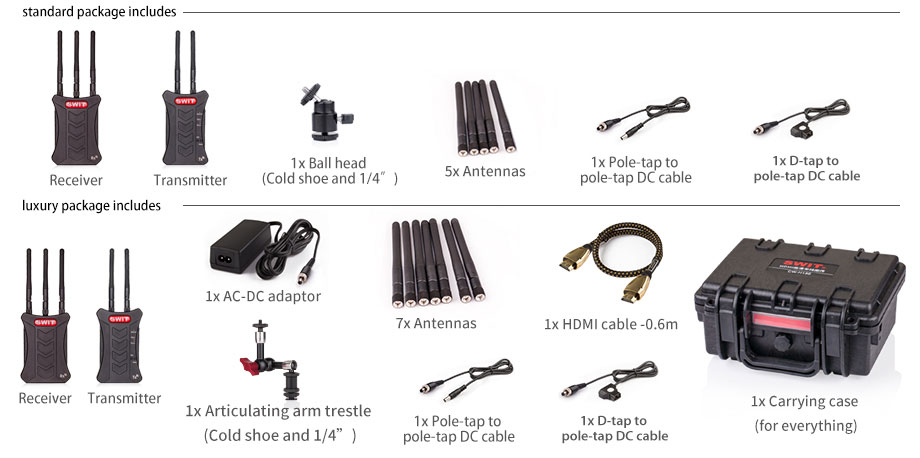

CW-H150 standard package includes:

1x Transmitter (Various DV plates types option)
1x Receiver (Various DV plates types option)
5x Antennas (For transmitter and receiver)
1x Ball head (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x Pole-tap to pole-tap DC cable

CW-H150 luxury package includes:

1x Transmitter (Various DV plates types option)
1x Receiver (Various DV plates types option)
7x Antennas (2 for Transmitter, 3 for Receiver and 2 for back-up)
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x Pole-tap to pole-tap DC cable
1x AC-DC adaptor
1x HDMI cable -0.6m
1x Carrying case (for everything)
