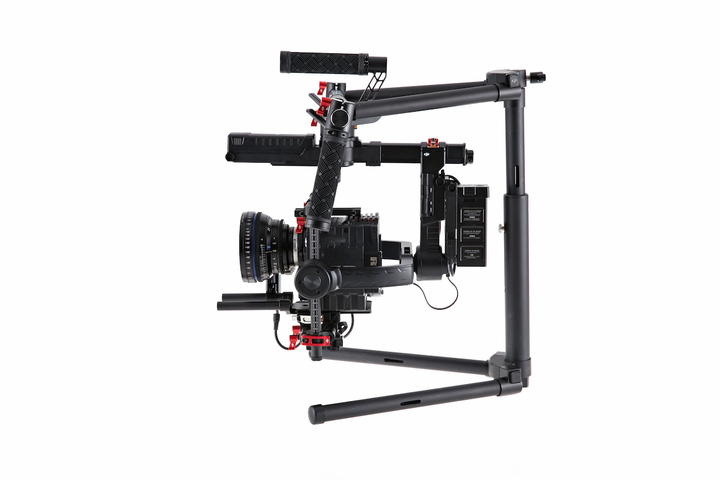

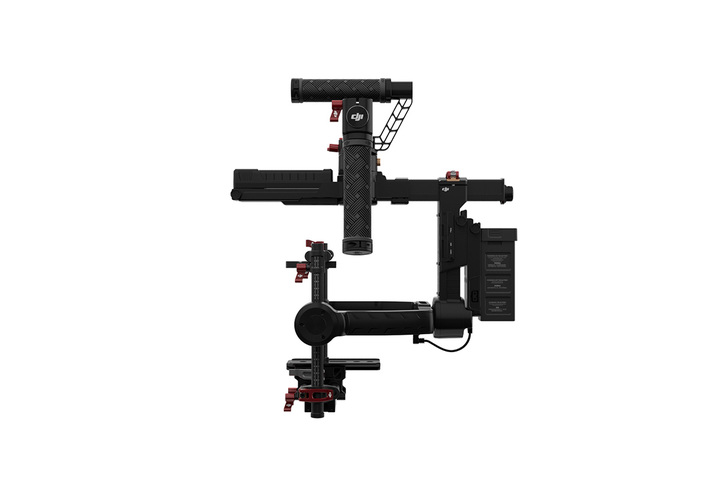

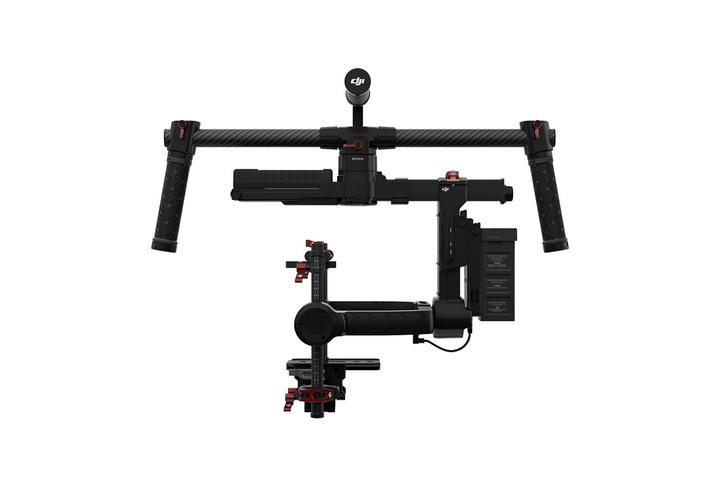

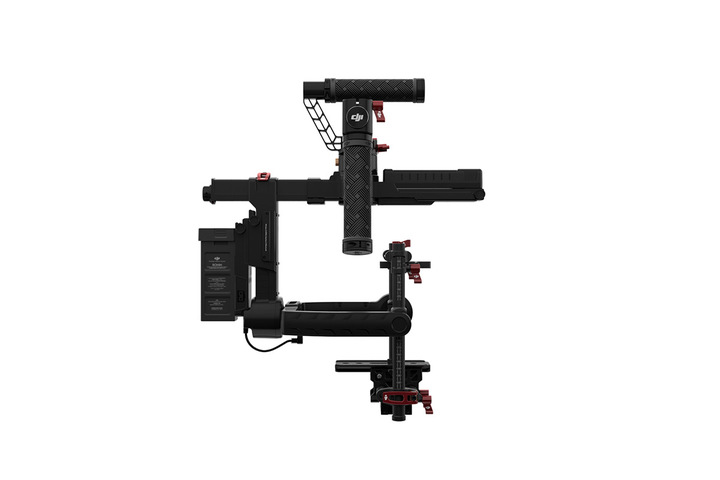

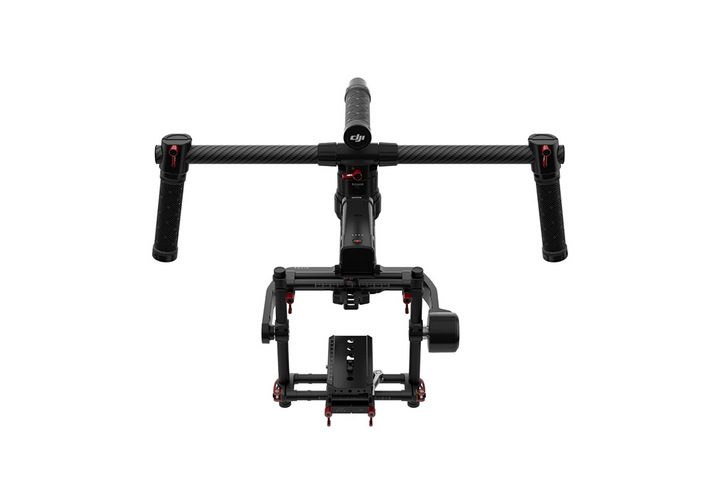

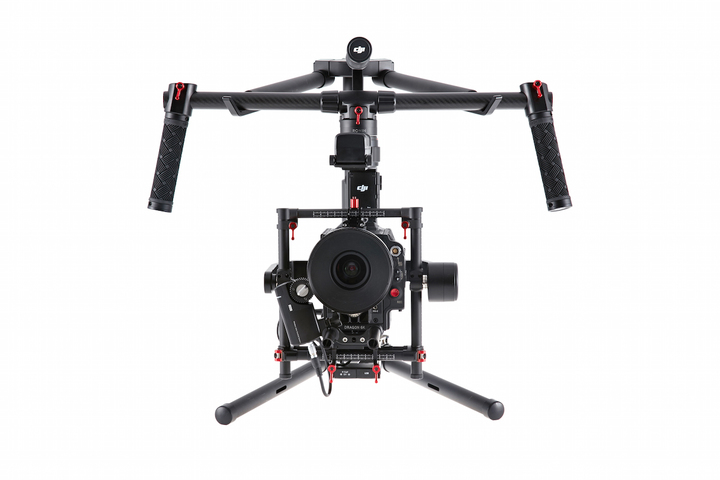

จำหน่าย Gimbal สำหรับกล้อง DSLR DJI RONIN-MX
RONIN-MX
CAPTURE ABOVE AND BEYOND
- Compatible with DJI M600
- Supports RED EPIC, ARRI ALEXA Mini and more cameras
- Designed for stability in high G-force environments
- 5-minute set-up
- Professional 3-axis handheld stabilization
- 3 modes of operation: Upright, Underslung, Briefcase
- Auto Tune Stability (ATS) for rapid balancing
- SmoothTrack™ movement smoothing
ENGINEERED FOR PROFESSIONALS
Cinematic film making demands rapid setup and a host of camera configurations. The Ronin-MX has
been designed to carry many of the cameras used every day on sets worldwide, and SmoothTrack™
algorithms ensure movements are smooth in every configuration. A repositioned battery improves
balance while stability is enhanced by a camera cage that locks mounted cameras in place at the top and
at the bottom. Silent motors prevent on set mics picking up motor noise.
POWERFUL AND ACCURATE
Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon whenmounted to an aircraft or a vehicle. When mounted to the M600 aerial system, it communicates directly with DJI’s flight controlle, allowing it to stabilize actively for a smoother shot.
FREEDOM TO MOVE
A slip ring allows the Ronin-MX to rotate 360° continuously when mounted to aircraft or vehicles, opening up more creative options. This is further enhanced by an increase in tilt axis range from 90° straight down and beyond to 135°. Popular features of the Ronin series such as the three modes of operation and SmoothTrack™ are also present, giving film makers a range of creative angles and movements.
WIRELESS CONTROL AND TRANSMISSION
The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1miles (5km) away. If combined with the optional DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras.
COMPREHENSIVE APP CONTROL
Using DJI Assistant and the dedicated Assistant app for iOS and Android allows complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, the DJI GO app can be used to control how the M600 flies including Intelligent Flight Modes, remote control modes, move the gimbal and see an HD live feed from the camera.
SPECIFICATIONS
GENERAL
Built-In Functions
Operation Modes
-Underslung Mode
-Upright Mode
-Briefcase Mode
-Aerial Mode
-Jib or Wirecam Mode
Built-in, independent IMU module
DJI Specialized Gimbal Drive Motors with Encoders
Bluetooth Module
USB Connection
2.4GHz Receiver
Temperature Sensor
DJI Advanced 32-Bit DSP Processor
D-Bus Receiver Supported
MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current Static current: 300mA (@16V)
Dynamic current: 600mA (@16V)
Locked motor current: Max 10A (@16V)
Run Time 3 hours
Operating Temperature 5° F ~ 120° F (-15° C ~ 50° C)
Weight Including handle bar: 6.11 lb (2.77 kg)
Including vibration absorber: 4.74 lb (2.15 kg)
Gimbal Dimensions Excluding handle bar :
280 mm (W) x 370 mm (D)x 340 mm (H)
Including handle bar :
560 mm (W) x 370 mm (D) x 440 mm (H)
PERIPHERAL
Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 120mm
Maximum height measured from top of camera base plate: 130mm
Maximum width: 160mm
Accessory Power Connections 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power 4S Ronin-M Battery
Connections 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements Windows XP or above; Mac OS X 10.9 or above
Mobile Assistant Software Requirements iOS 7.1 or above; Android 4.3 or above
WORKING PERFORMANCE
Load Weight (Reference Value) 10 lb (4.5 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 200°/s
Tilt axis: 100°/s
Roll axis: 30°/s
Mechanical Endpoint Range Pan axis control: 360°
Tilt axis control: +270° to -150°
Roll axis control: ± 110°
Controlled Rotation Range Pan axis control: 360°
Tilt axis control: +45° to -135°
Roll axis control: ± 25°
