RONIN-2

RONIN-2
RONIN-2RONIN-2RONIN-2
หมวดหมู่ DJI
ราคา 234,000.00 บาท
Vat7% ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7 %
สถานะสินค้า พร้อมส่ง
ลงสินค้า 21 ก.ย. 2561
อัพเดทล่าสุด 21 ก.ย. 2561
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

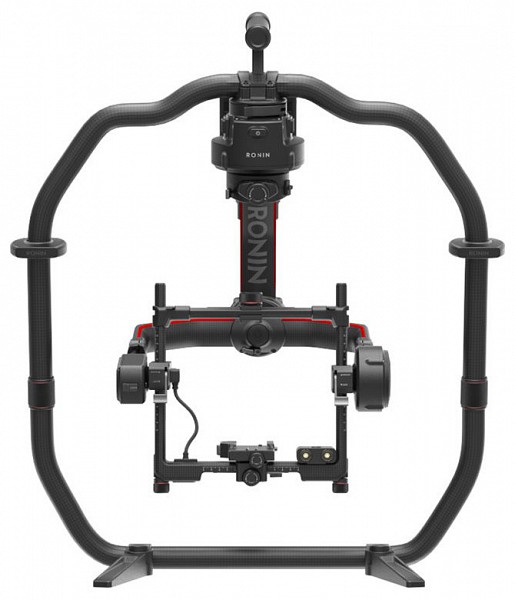

จำหน่าย Gimbal สำหรับกล้องวีดีโอ  DJI RONIN-2

RONIN-2

RONIN 2
CREATE YOUR LEGACY

LEGACY: A RONIN 2 SHORT FILM
Watch how Ronin 2 excels on a film set, allowing filmmakers
to capture and transition between scenes effortlessly.

POWERFUL
Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

EASY
The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.

INTELLIGENT
Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features.

INTEGRATED
Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

RELIABLE
Every element of Ronin 2 has been designed to maximize reliability, from materials to the splash-proof enclosed motor design, cable management, and redundancy. All of this creates a system that shines in the most demanding of shooting environments.

SPCIFICATIONS
GENERAL
Built-In Functions
Operation Modes
-Underslung Mode
-Upright Mode
-Briefcase Mode
-Handheld, Car Mount, Aerial & Tripod Mode

Axis Modes

-3-axis

-Pan-Lock

Built-in, independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Touch Panel
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring
MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current Static current: 300 mA (@22.8 V)
Dynamic current: 500 mA (@22.8 V)
Locked motor current: Max 15 A (@22.8 V)
Run Time 8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)
Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Weight Including handle bar: 14 lb (6.4 kg)
Excluding handle bar: 11 lb (5.0 kg)
Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)
PERIPHERAL
Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 245 mm
Maximum height measured from top of the camera base plate: 165 mm
Maximum width: 180 mm
Accessory Power Connections 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)
GCU Input Power Intelligent Battery: 4280 mAh-22.8 V
Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C
PC Assistant Software Requirements Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements iOS 9 or above; Android 4.4 or above
WORKING PERFORMANCE
Load Weight (Reference Value) 30 lbs (13.6 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±220°
Controlled Rotation Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±30°
